Product Overview

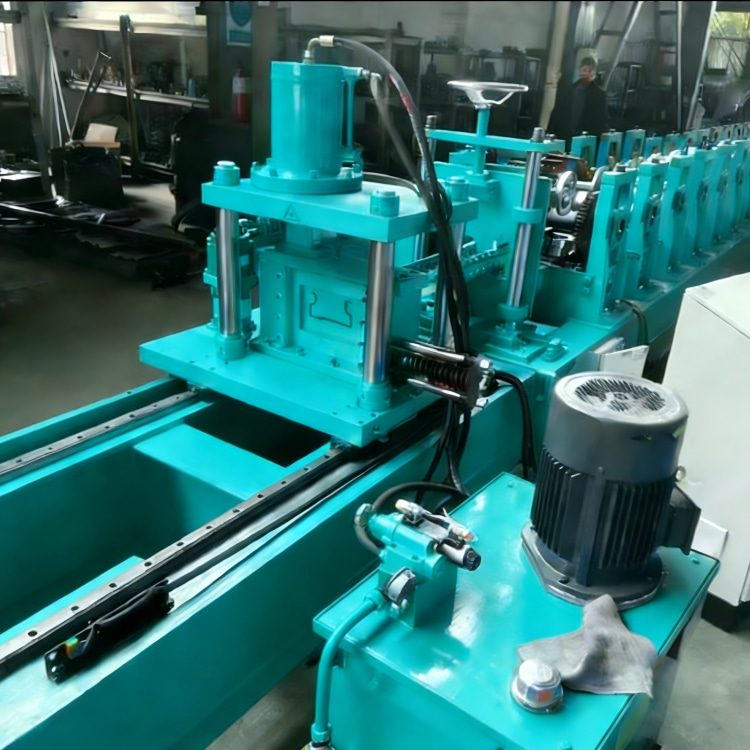

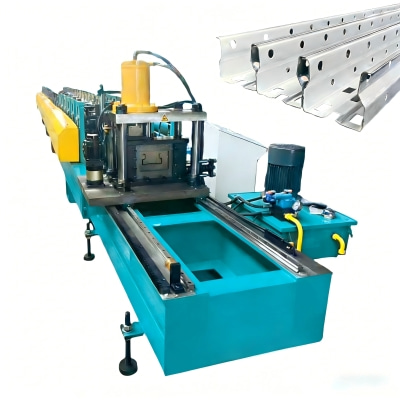

The Punch Mould For Rack Upright is a high-performance component designed for the precision punching of shelf uprights. It focuses on energy conservation and environmental protection, with optimized structural design reducing energy consumption during operation. The mould adopts environmentally friendly material and processing technology, complying with global environmental protection standards. It features high punching efficiency, stable quality, and is favored by environmentally conscious rack manufacturers worldwide.
Core Technical Specifications
-
Applicable raw material: Cold-rolled steel, Galvanized steel (optional stainless / color-coated steel)
-
Applicable material thickness: 1.5 – 3.0 mm
-
Mould material: GCr15 (or optional Cr12) alloy steel, heat treated (quenched / hardened) (environmentally friendly material)
-
Mould hardness: HRC 58 – 62° (depending on heat treatment)
-
Matching forming stations: 16 – 28 stations (profile dependent)
-
Adaptable forming speed: 5 – 15 m/min (depending on profile & configuration)
-
Matching cutting system: Compatible with hydraulic cutting / saw-cut systems (energy-saving type)
-
Applicable profile types: Upright rack columns / shelf upright posts / pallet rack uprights / warehouse shelving uprights
-
Customization scope: As per customer’s profile drawing / specification (environmental protection & precision requirements)
-
Environmental standard: Complies with global environmental protection standards (RoHS / REACH)
Key Product Advantages
1. Energy-Saving & Environmental Protection: Optimized structural design reduces energy consumption by 15% compared to traditional moulds; environmentally friendly materials and processing technology comply with global environmental protection standards.
2. High-Efficiency Punching: Rational mould structure design reduces punching resistance, improving punching efficiency while ensuring punching quality, adapting to high-speed production lines.
3. Stable Quality Consistency: Precision machining and strict quality control ensure that each batch of moulds has consistent performance, guaranteeing the uniformity of punching quality of shelf uprights.
Quality & Safety Assurance
The mould has obtained relevant environmental protection certifications and CE, ISO9001:2015 certifications. The production process strictly implements environmental protection and quality control standards, ensuring that the product is green, high-quality, and safe.
Global Service Support
We provide customized green mould solutions, pre-sales environmental protection standard consultation, on-site installation and debugging, operator training on energy-saving operation, and long-term after-sales technical support, escorting customers' green production.
Typical Applications
Widely used in the green production lines of shelf uprights for eco-industrial parks, green logistics centers, high-end commercial facilities, and food cold-chain storage racks, meeting environmental protection and high-quality production requirements.
