Product Overview

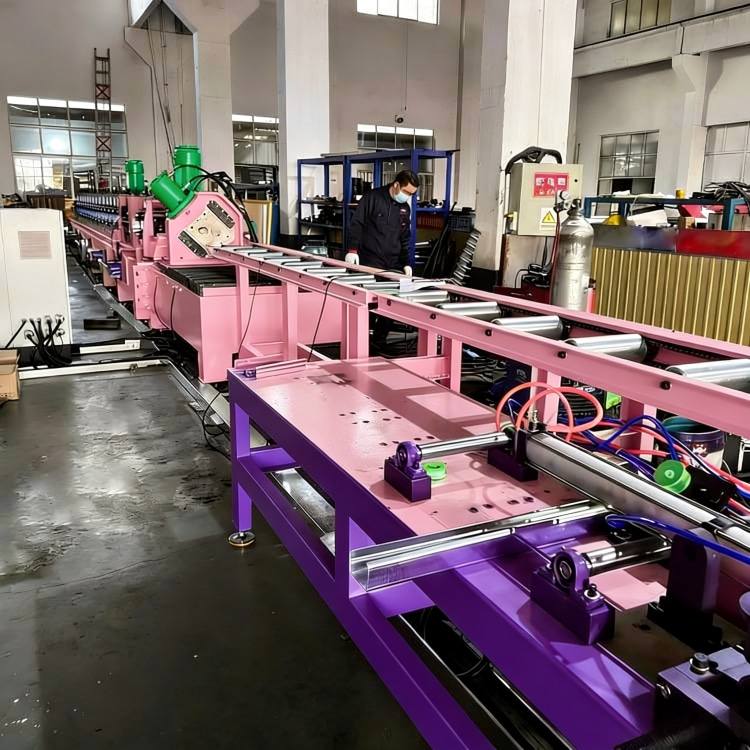

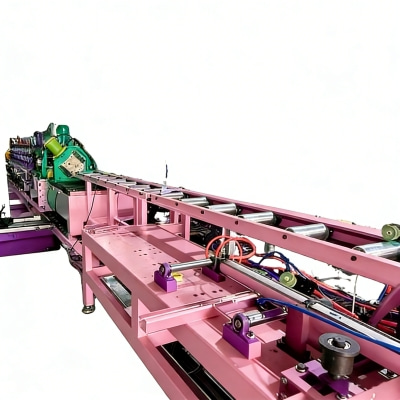

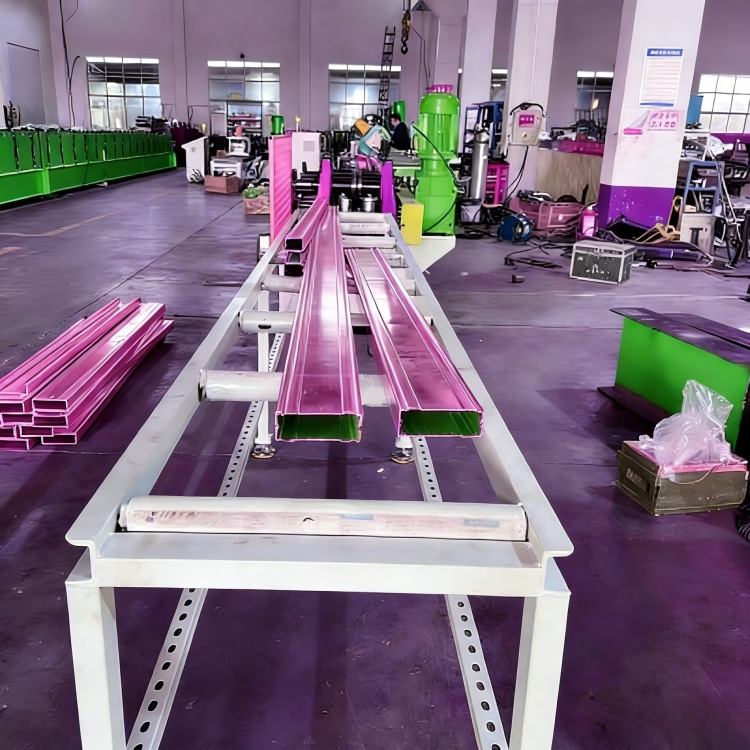

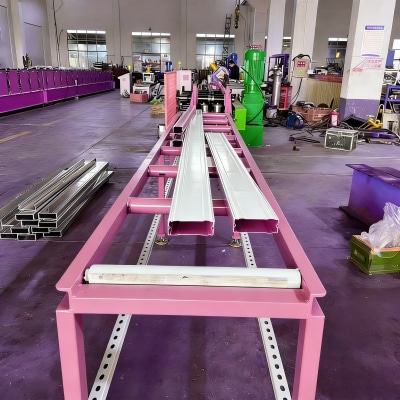

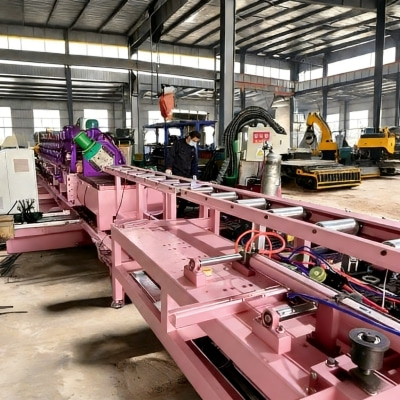

Xinnuo Automatic Storage Rack Beam Roll Forming Machine Line is a high-performance integrated production system tailored for manufacturing precision storage rack beams, serving as the core equipment for intelligent warehouses, industrial logistics hubs and high-density storage facilities. This fully automated line integrates advanced forming technology, stable transmission systems and intelligent control modules, ensuring efficient and consistent production of high-quality storage rack beams. It has been widely recognized by rack manufacturers in over 110 countries, perfectly adapting to the mass production needs of medium-duty to heavy-duty storage rack systems.
Core Technical Advantages
The machine line features multi-station precision forming and reliable power transmission, ensuring superior product quality and production efficiency. Equipped with high-quality core components, it achieves stable operation and long service life, effectively reducing production downtime and maintenance costs. The intelligent PLC control system enables full-process automated operation, minimizing manual intervention and improving production accuracy and consistency.
Key Specifications & Components
-
Suitable Plate Material: thickness 1.5-2.0mm, Galvanized steel or blank steel
-
Working Speed: about 8-15 meters / min
-
Forming Steps: about 19 stations, ensuring uniform and precise forming of beam sections
-
Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome, providing excellent wear resistance and forming precision
-
Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining, ensuring strong load-bearing capacity and stable rotation
-
Driven system: Gearbox drive, delivering stable and efficient power transmission
-
Main Power with reducer: 7.5*2KW (Famous Chinese Brand), providing sufficient power for continuous production
-

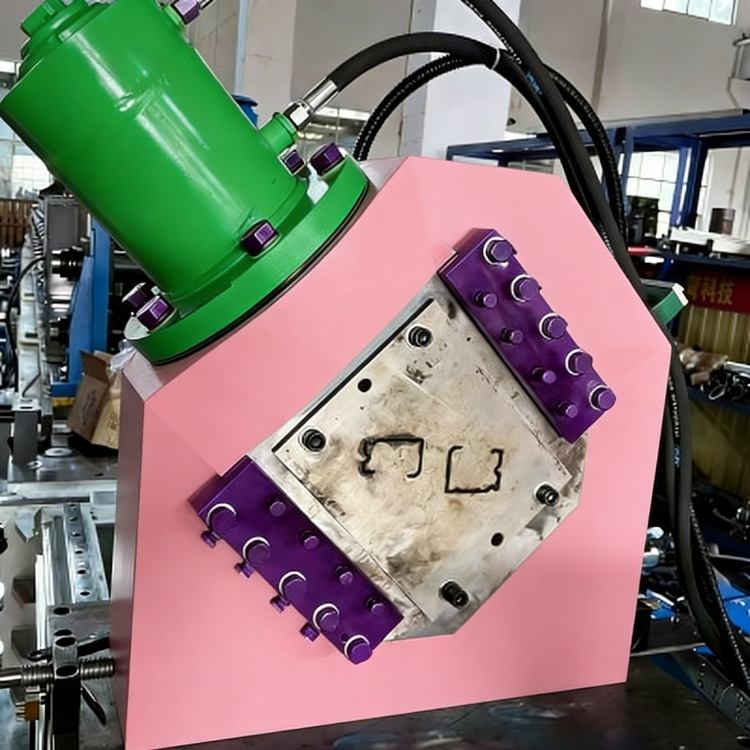

Cutting: hydraulic cutting, ensuring smooth cutting surface and accurate length control
-
Control System: The whole machine is controlled by PLC, with Siemens PLC (supporting English interface) for reliable and intelligent operation
-
Encoder: Omron (Japan), ensuring precise speed and position control
-
Electric parts: Schneider, guaranteeing stable and safe electrical system operation
Safety & Quality Assurance
Adopting full-process PLC control, the machine line achieves precise monitoring of each production link, effectively avoiding production errors and ensuring product consistency. High-quality components such as Schneider electric parts and Omron encoder enhance the stability and safety of the equipment. The rational structural design and reliable safety protection devices ensure the safety of operators during the production process.
Global One-Stop Service
Pre-sales Consulting
Provide multilingual technical support (English, German, Russian, Spanish, Arabic), on-site factory layout planning, and customized production solutions according to customers' specific product requirements and production scenarios.
Sales Support
Offer professional packaging for core components to avoid transportation damage, provide complete industrial equipment customs clearance documents, and arrange on-site installation and commissioning by certified engineers. Conduct systematic training on operation, maintenance and quality control for the customer's team.
After-sales Service
Provide 24/7 online technical assistance, on-site support within 48 hours in key regions, long-term warranty for core components, lifetime maintenance guidance and free software upgrade services.
Certifications
CE | ISO9001:2015 | SGS | TUV Rheinland
Typical Applications
-
Precision beam production for intelligent pallet racking systems
-
Medium-duty and heavy-duty beam manufacturing for logistics center storage racks
-
Beam production for cold-chain storage racks and industrial warehouses
-
Customized beam production for commercial and retail storage shelving systems
