Rack Box Beam Roll Forming Machine

Xinnuo Rack Box Beam Roll Forming Machine

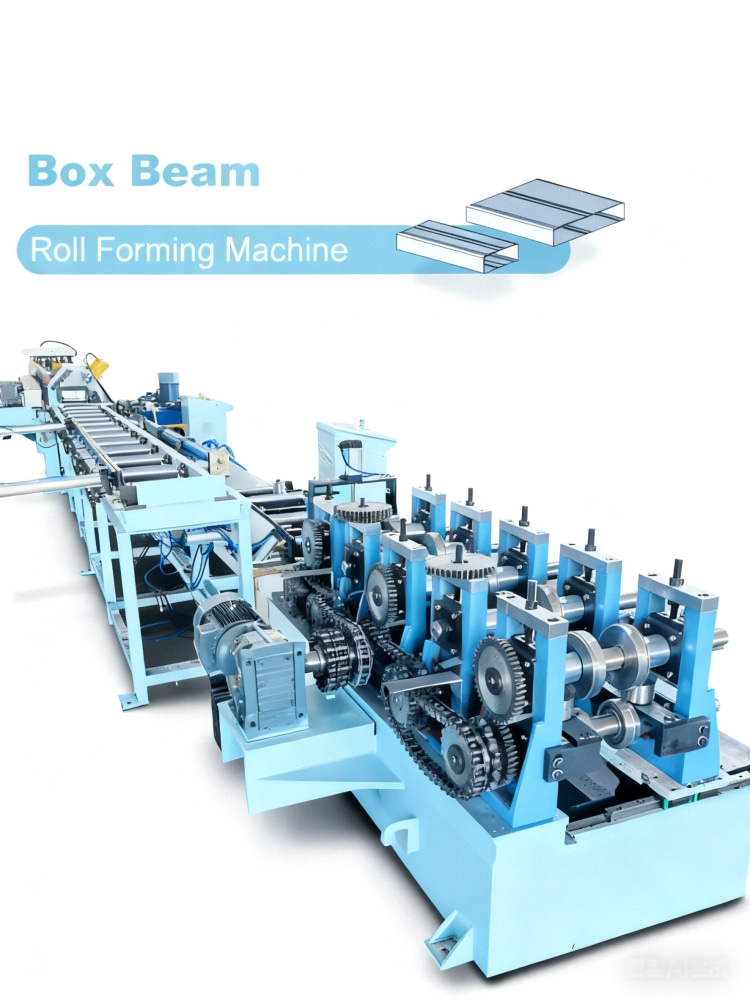

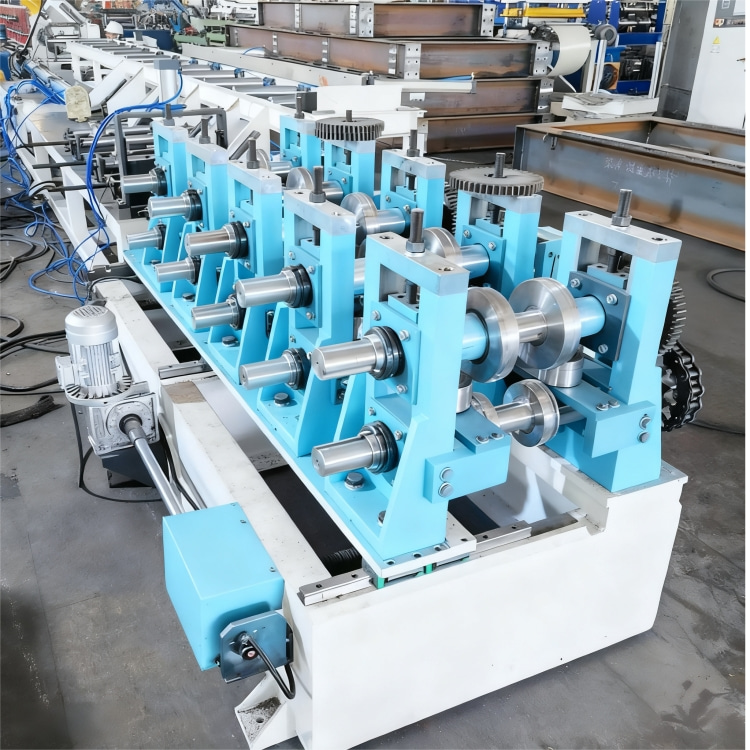

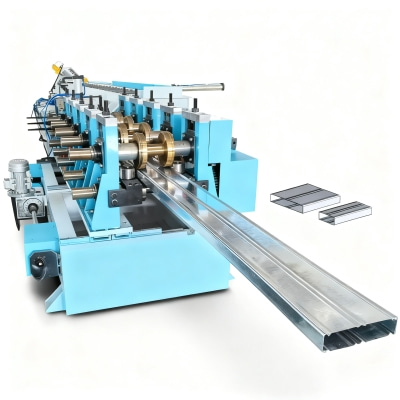

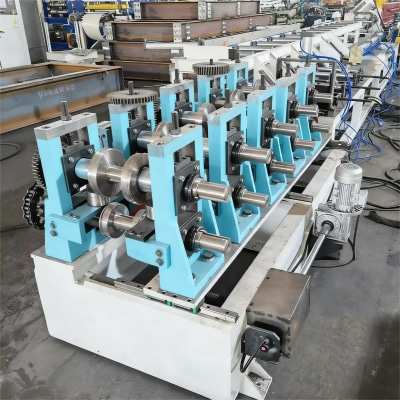

The Xinnuo Rack Box Beam Roll Forming Machine is a fully integrated production line designed specifically for manufacturing heavy-duty rack beams with excellent dimensional accuracy and structural strength. The line combines decoiling, leveling, precise feeding, high-rigidity roll forming, hydraulic shearing, automatic transverse shifting, flipping, and orderly stacking to realize continuous, fully automated forming and packing. All machine frames and components are processed on CNC machining centers, ensuring outstanding precision and long-term stability. Size changeover is fast and intuitive, enabling rapid adjustment between different beam profiles. With a production speed of up to 20 m/min, the line dramatically reduces labor intensity and significantly boosts output efficiency. The finished box beams feature uniform shape, high load-bearing capacity, and excellent consistency, which are widely recognized by both domestic and overseas racking manufacturers.

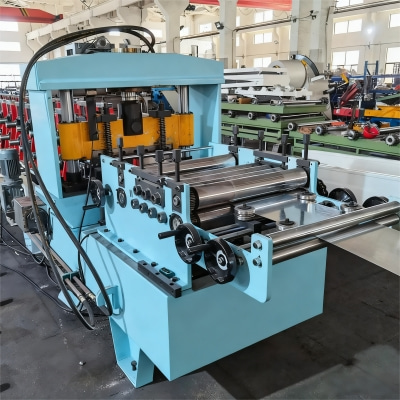

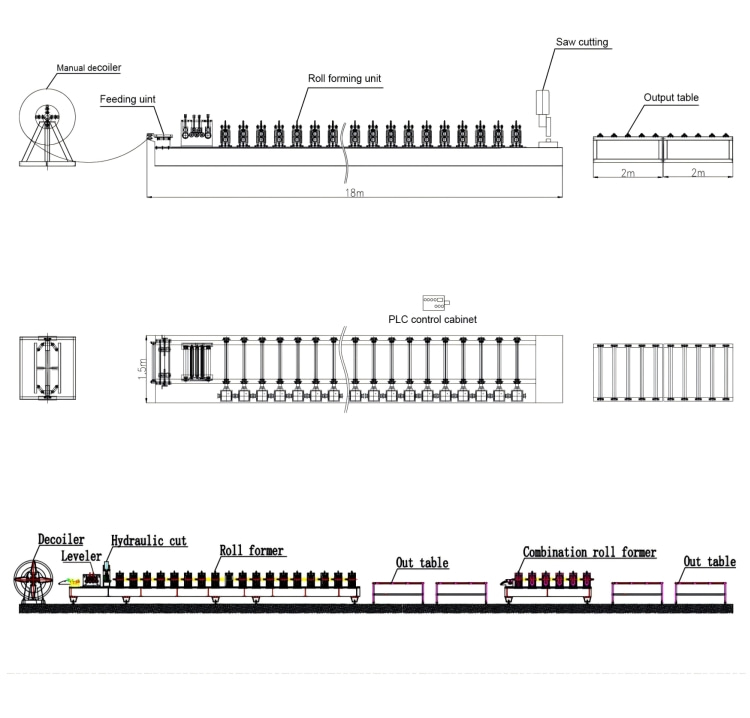

The complete line is composed of a Hydraulic Decoiler, Entry Guide System, Leveling Unit, Servo Feeding Device, High-Precision Roll Forming Machine, Hydraulic Cutting Device, Crimping Device, Double-Arm Automatic Stacker, Hydraulic Power Pack, and an advanced PLC Control System. Every section of the equipment adopts branded and proven components to ensure stability and reliability. Critical mechanical parts are made from high-quality alloy steel, treated for hardness and durability, and the hydraulic and electrical systems use internationally recognized brands for smooth and safe operation. Each unit of the production line is designed for continuous running, low maintenance, and long service life, enabling consistent production over extended shifts.

The Xinnuo Rack Box Beam Roll Forming Machine focuses on ergonomic operation and intelligent control. The PLC system provides user-friendly interface, data storage, automatic length measurement, fault detection, and remote diagnostic functions, helping operators manage the entire line with minimal training. Safety interlocks and protective covers are installed throughout the machine to ensure safe operation.

With strong mechanical structure, stable forming accuracy, high production speed, and flexible beam size adjustment, Xinnuo’s rack box beam line is an ideal solution for high-end pallet racking manufacturers seeking efficiency, precision, and automation. Whether used in logistics centers, warehouse storage systems, or heavy-duty shelf production, this machine delivers consistent quality and reliable performance, making it a preferred choice for customers around the world.
