Product Overview

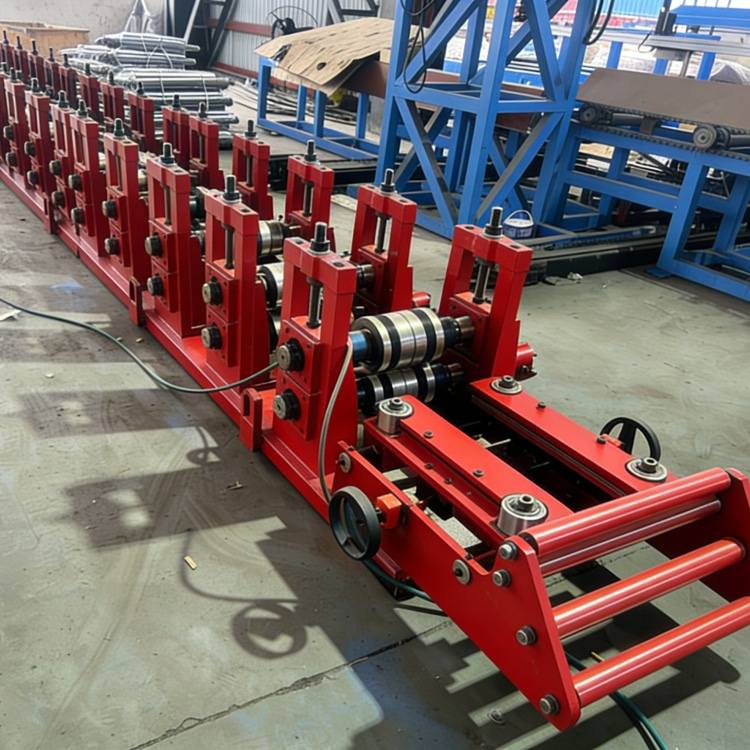

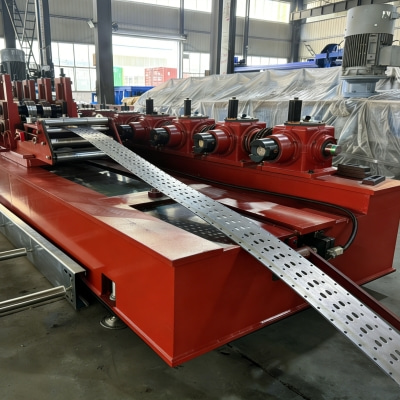

The Frame Bracing Roll Forming Machine is a high-end automated production equipment specially developed for manufacturing precision frame bracing components, which serve as the core load-bearing and stabilizing parts of storage rack systems. Integrating flexible configuration, advanced forming technology and intelligent control, this machine can stably produce various high-quality frame bracing products, and is favored by global storage rack manufacturers for its reliable performance, strong adaptability and efficient production capacity.
Core Technical Specifications
-
Raw material: Cold-rolled steel, Galvanized steel (optional stainless / color-coated steel), covering mainstream and customized material needs for frame bracing production
-
Material thickness:1.5 – 3.0 mm, fully meeting the thickness requirement of high-strength frame bracing components
-
Roller material: GCr15 (or optional Cr12) alloy steel, heat treated (quenched / hardened), featuring excellent wear resistance and deformation resistance for long-term stable operation
-
Roller hardness: HRC 58 – 62° (depending on heat treatment), ensuring high forming precision and prolonging roller service life
-
Number of forming stations: 16 – 28 stations (profile dependent), adaptable to different profile structures to achieve uniform stress distribution and perfect forming effect
-
Forming (line) speed: 5 – 15 m/min (depending on profile & configuration), balancing production efficiency and product quality to meet diverse order demands
-
Main motor power: 15 – 22 kW (depending on model), providing stable and sufficient power for the entire production process
-

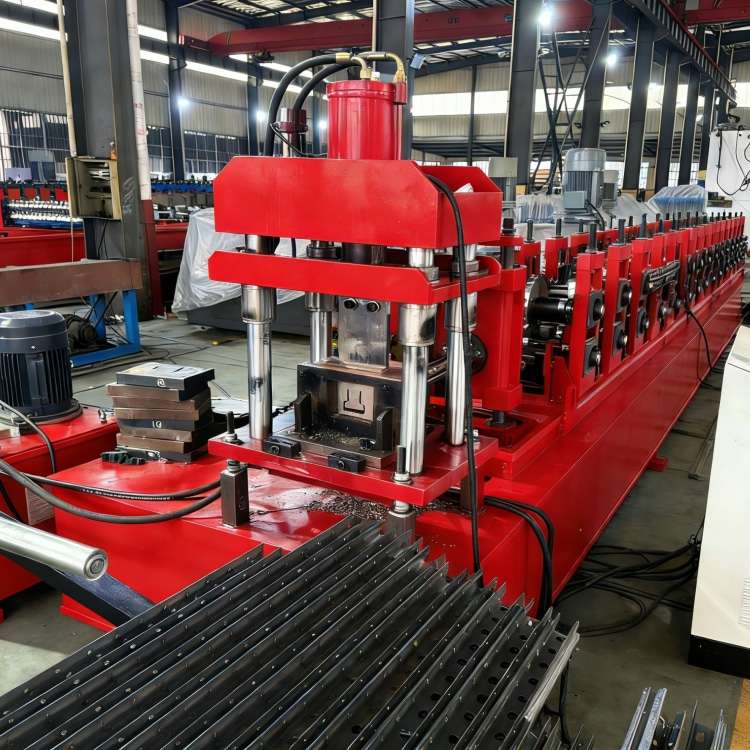

Cutting / Shearing system: Hydraulic cutting (or saw-cut); cutting blades made of heat-treated Cr12 / Cr12MoV, ensuring smooth cutting surfaces, high precision and no burrs
-
Control system: PLC control (Siemens / Panasonic / Delta optional) — supports automatic forming, punching, cutting, length & quantity control, realizing intelligent full-process control and reducing manual intervention
-
Decoiler: manual or hydraulic decoiler (capacity configurable, e.g. 3t–5t), matching different production scales and material handling requirements
-
Material width: As per customer’s profile drawing / specification, fully customized to meet unique profile design needs of customers
-
Profile types: Upright rack columns / shelf upright posts / pallet rack uprights / warehouse shelving uprights, covering core frame bracing types of storage rack systems
-
Power supply / Voltage: 380 V, 50 Hz, three-phase (customizable per customer requirement), adaptable to power standards of different regions worldwide
Global One-Stop Service
Pre-sales Consulting
We provide multilingual technical support (English, German, Russian, Spanish, Arabic), on-site factory layout planning, and customized production solutions based on customers' specific profile drawings, material requirements, production scales and regional power standards.
Sales Support
Professional packaging is adopted to prevent equipment damage during transportation. We provide complete industrial equipment customs clearance documents and arrange professional engineers to conduct on-site installation, commissioning and debugging. Systematic training on equipment operation, maintenance and quality control is provided for customer teams to ensure proficient use.
After-sales Service
24/7 online technical assistance is available to solve customers' problems in a timely manner. On-site maintenance support is provided within 48 hours in key regions. We offer a long-term warranty for core components, lifelong maintenance guidance and free software upgrade services, ensuring the continuous and stable operation of the equipment.
Certifications
CE | ISO9001:2015 | SGS | TUV Rheinland
Typical Applications
-
Production of upright rack columns for heavy-duty storage racks
-
Manufacturing of shelf upright posts for commercial retail warehouses
-
Customized production of pallet rack uprights for logistics distribution centers
-
Production of warehouse shelving uprights for cold-chain storage and chemical storage facilities
