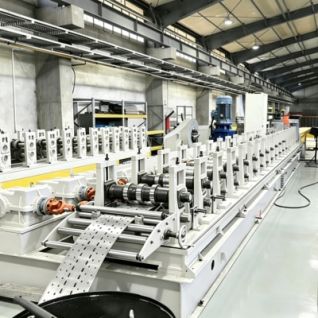

User-friendliness and ease of operation are key features of the Shelf Rack Roll Forming Machine, designed to minimize training time and ensure that operators can run the machine efficiently with minimal technical expertise. The machine’s PLC control system features a large, intuitive touchscreen interface that displays all production parameters, including forming speed, material thickness, and cut length, making it easy to monitor and adjust settings as needed. The interface supports multiple languages, ensuring that operators around the world can use the machine with ease.
The machine’s design prioritizes accessibility, with all key components and controls easily reachable, allowing operators to perform routine checks and maintenance tasks quickly. The tooling can be changed quickly and easily, with clear instructions and minimal tools required, reducing downtime when switching between different profile designs. The automatic lubrication system eliminates the need for manual lubrication, saving time and ensuring that all moving parts are properly lubricated to prevent wear. The machine’s error alarm system provides clear, audible and visual alerts when issues arise, such as material jams or tool wear, allowing operators to troubleshoot quickly and minimize production interruptions.
|
Parameter
|
Specification
|
|
Machine Type
|
Shelf Rack Roll Forming Machine
|
|
Material Thickness
|
1.0 ~ 3.5 mm
|
|
Material Width
|
50 ~ 250 mm
|
|
Forming Stations
|
12 ~ 20 stations
|
|
Max Forming Speed
|
10 ~ 18 m/min
|
|

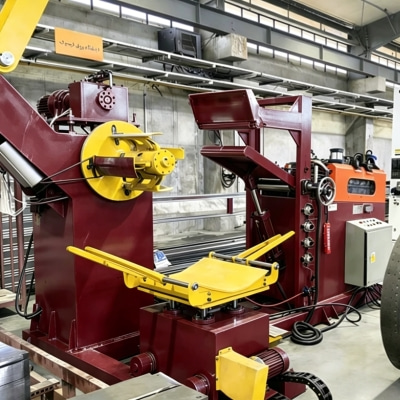

Decoiler
|
Manual / Hydraulic / Motorized
|
|
Cutting Method
|
Flying Cut / Hydraulic Shear
|
|
Drive System
|
Electric / PLC Control
|
|
Power
|
20 ~ 35 kW
|
|
Machine Dimensions (L×W×H)
|
10–14 m × 1.5 m × 1.8 m
|
|
Machine Weight
|
7 ~ 14 tons
|
|
Tolerance
|
±1 mm
|
|
Suitable Material
|
Cold Rolled Steel / Galvanized Steel
|
|

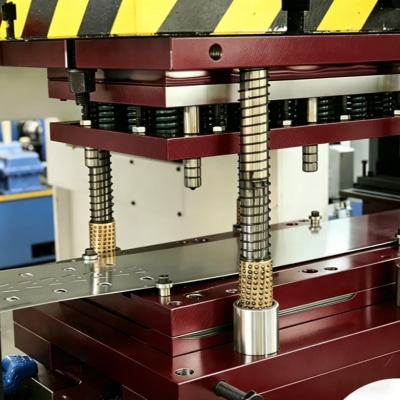

Optional Features
|
Automatic Punching,Stacking,Labeling
|

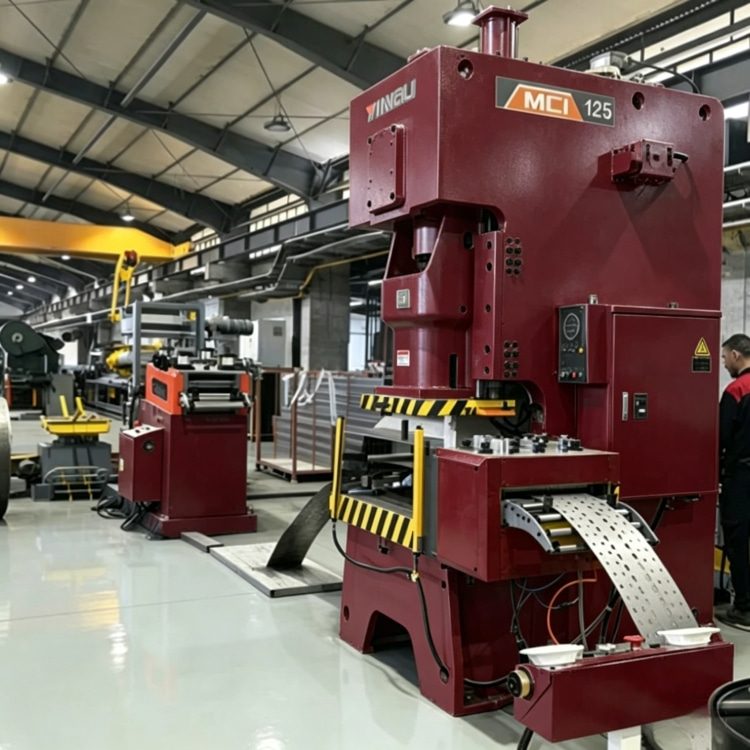

The machine’s forming speed of 10 m/min to 18 m/min and easy-to-adjust parameters make it suitable for operators of all skill levels, while its heavy-duty construction ensures stability and reliability. The optional automatic stacking and punching modules further reduce manual labor, making the machine even easier to operate. The machine’s compact design, with a length of 10 m to 14 m, makes it easy to install and integrate into existing production lines, while its lightweight relative to its capacity (7 tons to 14 tons) ensures that it can be moved if needed. For manufacturers looking for a user-friendly, reliable roll forming machine, this Shelf Rack Roll Forming Machine is an ideal choice.
