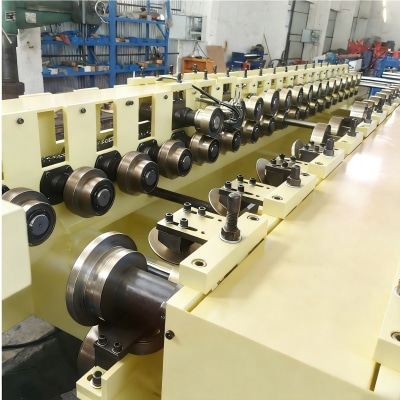

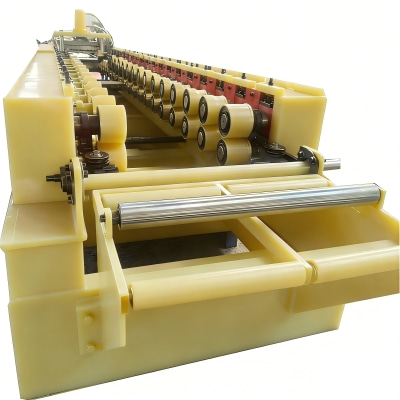

Product Overview
This green intelligent machine is tailored for eco-friendly supermarket rack panel production. It adopts energy-saving motors and closed processes, reducing energy consumption and noise—ideal for manufacturers focusing on green production and supermarket indoor use.
Core Technical Specifications
-
Raw material: Cold-rolled steel, Galvanized steel (optional stainless / color-coated steel)
-
Material thickness: 1.5 – 3.0 mm
-
Roller material: GCr15 (or optional Cr12) alloy steel, heat treated (quenched / hardened)
-
Roller hardness: HRC 58 – 62° (depending on heat treatment)
-
Number of forming stations: 16 – 28 stations (profile dependent)
-
Forming (line) speed: 5 – 15 m/min (depending on profile & configuration)
-
Main motor power:15 – 22 kW (depending on model)
-

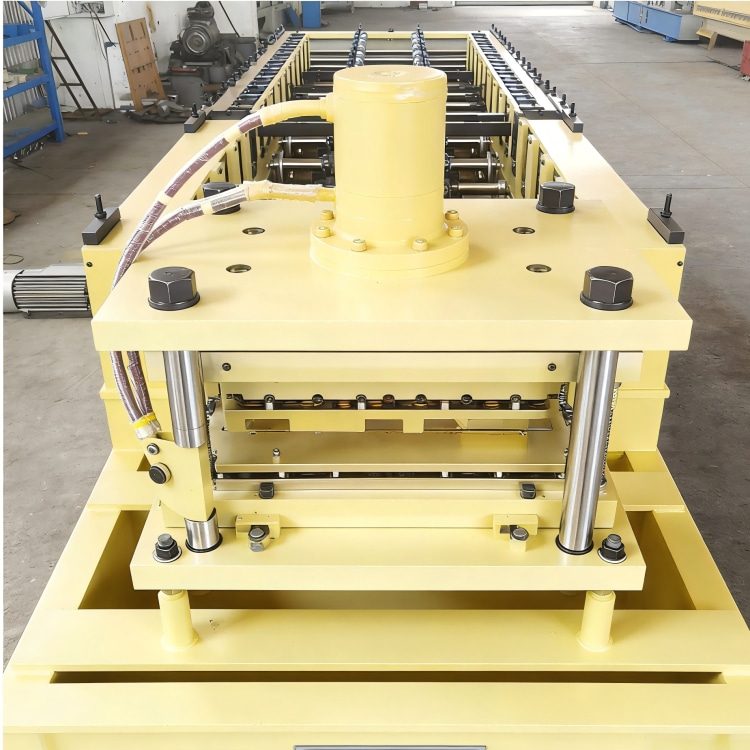

Cutting / Shearing system: Hydraulic cutting (or saw-cut); cutting blades made of heat-treated Cr12 / Cr12MoV
-
Control system: PLC control (Siemens / Panasonic / Delta optional) — supports automatic forming, punching, cutting, length & quantity control
-
Decoiler: Manual or hydraulic decoiler (capacity configurable, e.g. 3t–5t)
-
Material width: As per customer’s profile drawing / specification
-
Power supply / Voltage: 380 V, 50 Hz, three-phase (customizable per customer requirement)
|
Parameter
|
Specification
|
|
Raw material
|
Cold-rolled steel,Galvanized steel (optional stainless / color-coated steel)
|
|
Material thickness
|
1.5 – 3.0 mm
|
|
Roller material
|
GCr15 (or optional Cr12) alloy steel,heat treated (quenched / hardened)
|
|
Roller hardness
|
HRC 58 – 62° (depending on heat treatment)
|
|
Number of forming stations
|
16 – 28 stations (profile dependent)
|
|
Forming (line) speed
|
5 – 15 m/min (depending on profile & configuration)
|
|
Main motor power
|
15 – 22 kW (depending on model)
|
|
Cutting / Shearing system
|
Hydraulic cutting (or saw-cut);cutting blades made of heat-treated Cr12 / Cr12MoV
|
|
Control system
|
PLC control (Siemens / Panasonic / Delta optional) — supports automatic forming,punching,cutting,length & quantity control
|
|
Decoiler
|
manual or hydraulic decoiler (capacity configurable,e.g. 3t–5t)
|
|
Material width
|
As per customer’s profile drawing / specification
|
|
Profile types
|
Upright rack columns / shelf upright posts / pallet rack uprights / warehouse shelving uprights
|
|
Power supply / Voltage
|
380 V,50 Hz,three-phase (customizable per customer requirement)
|
Key Product Advantages
1. Energy-Saving & Low-Noise: Optimized motor reduces energy consumption by 15%, closed process minimizes noise, fitting factory and supermarket environmental demands.
2. Intelligent Lean Management: PLC system realizes real-time data monitoring, helping optimize processes and reduce waste for green production.
3. Eco-Material Compatibility: Supports stainless steel and color-coated steel, producing non-toxic, anti-rust panels for supermarket food storage areas.
Quality & Safety Assurance
Compliant with RoHS, REACH standards and ISO9001:2015, holding green certifications, ensuring panels are safe for supermarket food-related storage.
Global Service Support
Provide green production solutions, energy-saving operation training, on-site commissioning and 24/7 after-sales support for global customers.
Typical Applications
Ideal for green production of panels in supermarket organic food racks, cold-chain fresh shelves, and eco-friendly chain store storage systems.
