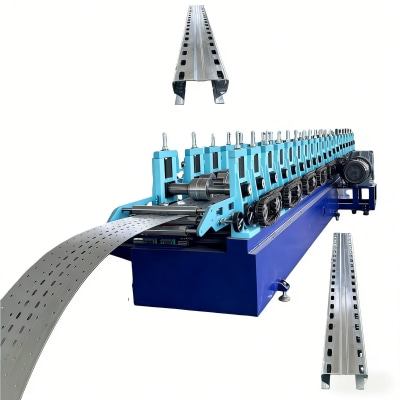

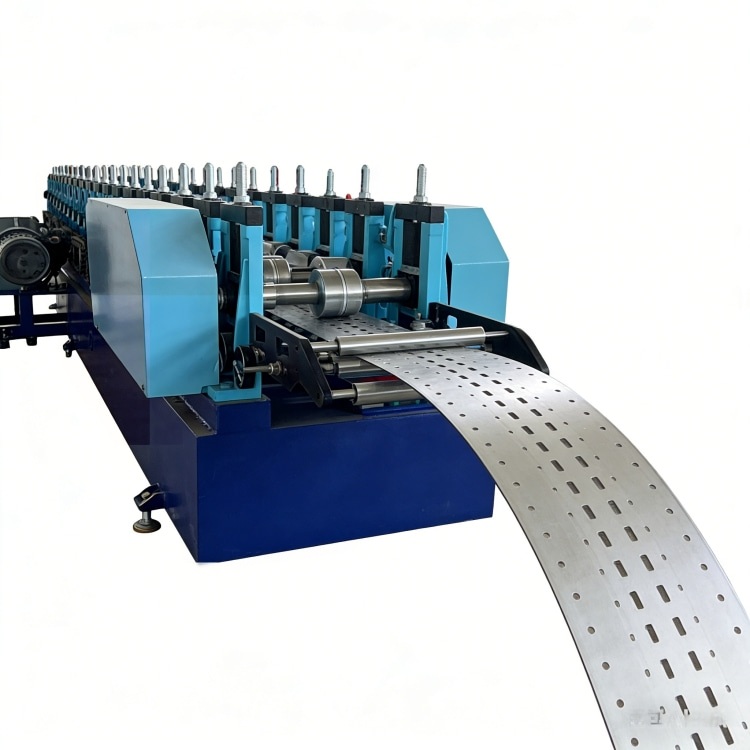

The Upright Roll Forming Machine is built with durability and stability in mind, featuring high-quality components and a robust structural design that ensures long-term reliable operation even in harsh industrial environments. This machine is designed to withstand continuous high-intensity production, reducing maintenance frequency and extending service life, making it a cost-effective choice for shelf manufacturers.
It processes Q235 Galvanized sheet, which offers excellent corrosion resistance and mechanical strength, ensuring the produced shelf uprights are durable and suitable for heavy-duty storage applications. The rolling thickness of 2-3mm is optimized to balance structural strength and material utilization, while the forming tolerance of ±0.2mm guarantees precise shaping, ensuring the uprights have consistent dimensions and perfect fit with other shelf components.
|
Item
|
Description &Parameter
|
|
Technical Standards
|
1.GB/T6725-2002《Technical conditions for cold-formed steel》
2.GB/708-88《Dimensions,shapes,weights,and allowable deviations of cold-rolled steel plates and strips》
3.GB/6723-86《Dimensions,shapes,weights,and allowable deviations of general cold-formed open section steel》
|
|
Forming raw material
|
Q235 Galvanized sheet
|
|
Rolling thickness(mm)
|
2-3mm
|
|
Forming dimensions (mm)
|
According to the product drawings
|
|
Feeding width(mm)
|
According to the product drawings
|
|
Production capacity
|
10-20 m/min adjustable or Customization
|
|
Control system
|
PLC
|
|
Forming tolerance (mm)
|
±0.2mm
|
|
Operation mode
|
Combined operation method of LCD,PLC Program,driver and wireless control.
|
|
Automation level
|
Fully automatic
|
|
Fault diagnosis function
|
There are protective devices in every part.
|
|
Working temperature
|
-30℃ ~ 50℃
|
|
Power
|
26KW
|
|
Input voltage
|
380V/50HZ/3PH electricity or Customization
|
|
Dimension(L*W*H)(mm)
|
9800 * 800 * 2940
|
|
Weight(Tons)
|
8.5
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery test report
|
Provided
|
|
Warranty information
|
Three years warranty for the entire machine.
|
The machine’s production capacity of 10-20 m/min is adjustable or customizable, allowing it to adapt to different production rhythms and meet diverse order requirements. Equipped with a PLC control system and a combined operation method of LCD, PLC Program, driver and wireless control, it achieves fully automatic operation, reducing labor costs and operational errors. The fault diagnosis function, with protective devices in every part, ensures timely detection and handling of potential issues, preventing production interruptions and ensuring operational safety.
With a 26KW powerful motor and input voltage of 380V/50HZ/3PH electricity (or customizable), the machine provides stable power output for continuous production. Its metal frame structure, with a dimension of 9800 * 800 * 2940mm and weight of 8.5 Tons, ensures structural stability and reduces vibration during operation. We provide video outgoing-inspection and machinery test report to guarantee product quality, and a three years warranty for the entire machine covers all components, offering customers comprehensive after-sales support. This machine is widely used in heavy-duty industrial warehouses, logistics distribution centers, and large-scale storage facilities.
