The Shelf Rack Roll Forming Machine is built to meet and exceed international industry standards, ensuring that the shelf rack uprights produced are safe, durable, and compatible with global storage system requirements. It complies with key standards such as ANSI MH16.1 and EN 15512, which regulate the design and manufacturing of storage racks, ensuring that the machine’s output meets strict safety and performance criteria. This compliance is critical for manufacturers looking to sell their products in global markets, as it demonstrates a commitment to quality and safety.

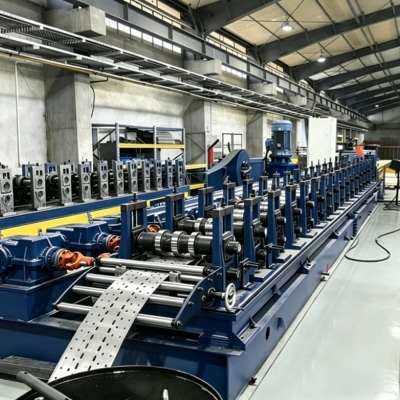

The machine’s precision forming and cutting technologies ensure that each upright meets the dimensional and structural requirements outlined in these standards, with a tolerance of ±1 mm and consistent material thickness from1.0 mm to 3.5 mm. The forming stations, numbering 12 to 20, are designed to produce profiles that meet the required bending angles and dimensions, ensuring that the uprights can withstand the specified loads without deformation. The machine’s material handling capabilities, supporting galvanized and cold-rolled steel, ensure that the uprights are resistant to corrosion and wear, meeting the durability requirements of industrial and commercial storage environments.
|
Parameter
|
Specification
|
|
Machine Type
|
Shelf Rack Roll Forming Machine
|
|
Material Thickness
|
1.0 ~ 3.5 mm
|
|
Material Width
|
50 ~ 250 mm
|
|

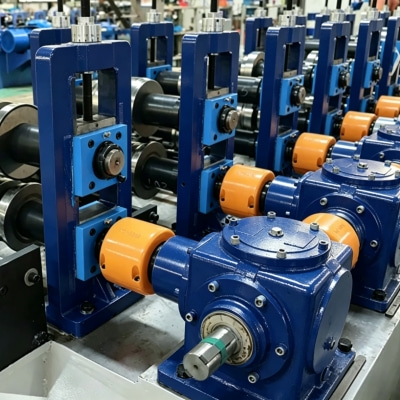

Forming Stations
|
12 ~ 20 stations
|
|
Max Forming Speed
|
10 ~ 18 m/min
|
|
Decoiler
|

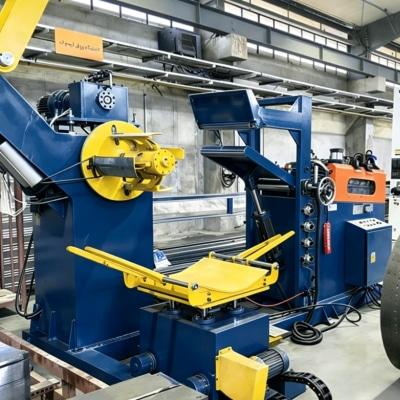

Manual / Hydraulic / Motorized
|
|
Cutting Method
|
Flying Cut / Hydraulic Shear
|
|
Drive System
|
Electric / PLC Control
|
|
Power
|
20 ~ 35 kW
|
|
Machine Dimensions (L×W×H)
|
10–14 m × 1.5 m × 1.8 m
|
|
Machine Weight
|
7 ~ 14 tons
|
|
Tolerance
|
±1 mm
|
|
Suitable Material
|
Cold Rolled Steel / Galvanized Steel
|
|
Optional Features
|

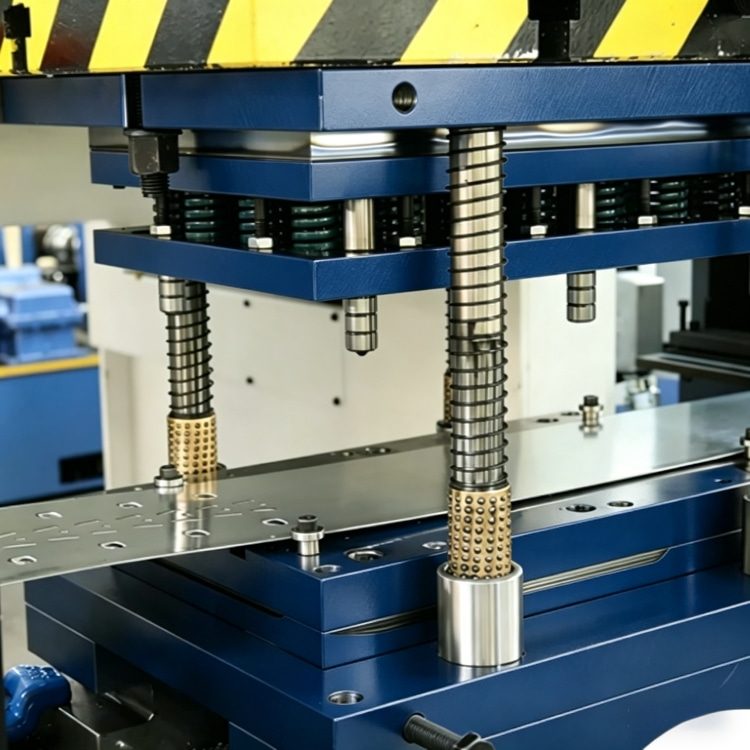

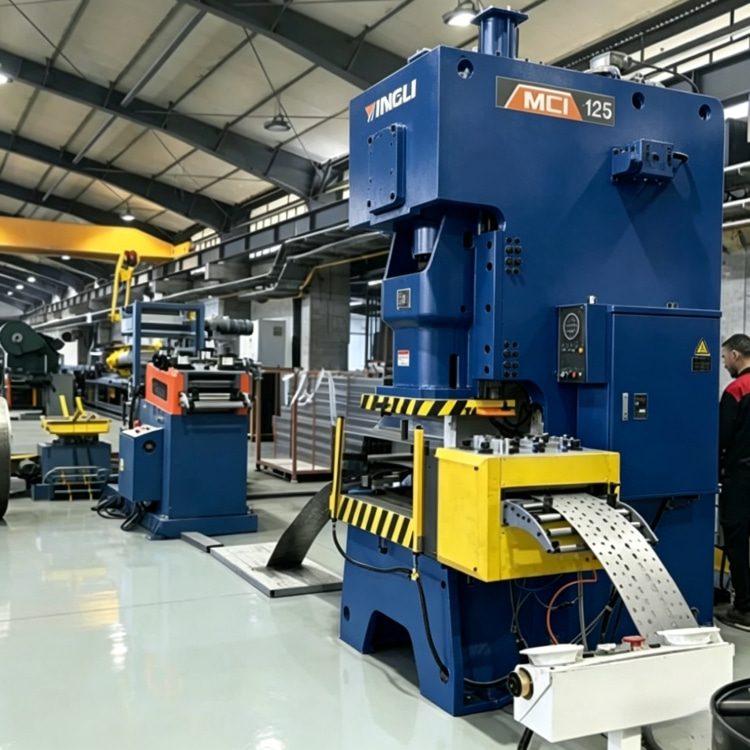

Automatic Punching,Stacking,Labeling
|
The PLC control system is equipped with features that allow manufacturers to track and document production data, including batch numbers, production quantities, and quality checks, making it easy to comply with industry regulations and customer requirements. The machine’s robust construction and high-quality components ensure that it operates reliably and consistently, meeting the high standards expected in the storage system industry. Whether producing uprights for local markets or global clients, this Shelf Rack Roll Forming Machine delivers the quality and compliance needed to succeed in the competitive storage system market.
