Product Description

Product Overview

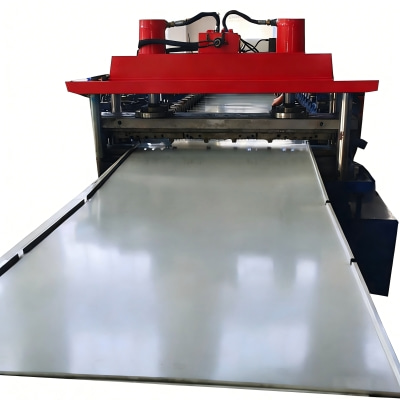

The Warehouse Metal Rack Machine is a high-efficiency economic equipment for mass rack panel production. It integrates user-friendly operation and low maintenance design, reducing labor and operation costs while ensuring stable output, ideal for cost-sensitive manufacturers.

Core Technical Specifications

Raw material: Cold-rolled steel, Galvanized steel (optional stainless / color-coated steel)
Material thickness: 1.5 – 3.0 mm
Roller material: GCr15 (or optional Cr12) alloy steel, heat treated (quenched / hardened)
Roller hardness: HRC 58 – 62° (depending on heat treatment)
Number of forming stations: 16 – 28 stations (profile dependent)
Forming (line) speed: 5 – 15 m/min (depending on profile & configuration)
Main motor power: 15 – 22 kW (depending on model)

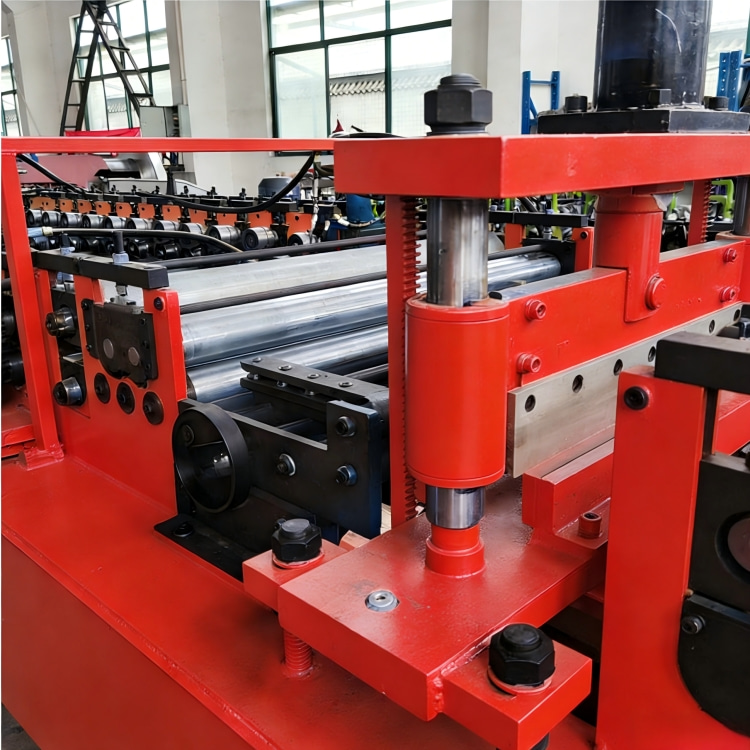

Cutting / Shearing system: Hydraulic cutting (or saw-cut); cutting blades made of heat-treated Cr12 / Cr12MoV
Control system: PLC control (Siemens / Panasonic / Delta optional) — supports automatic forming, punching, cutting, length & quantity control
Decoiler: Manual or hydraulic decoiler (capacity configurable, e.g. 3t–5t)
Material width: As per customer’s profile drawing / specification
Power supply / Voltage: 380 V, 50 Hz, three-phase (customizable per customer requirement)

Parameter	Specification
Raw material	Cold-rolled steel,Galvanized steel (optional stainless / color-coated steel)
Material thickness	1.5 – 3.0 mm
Roller material	GCr15 (or optional Cr12) alloy steel,heat treated (quenched / hardened)
Roller hardness	HRC 58 – 62° (depending on heat treatment)
Number of forming stations	16 – 28 stations (profile dependent)
Forming (line) speed	5 – 15 m/min (depending on profile & configuration)
Main motor power	15 – 22 kW (depending on model)
Cutting / Shearing system	Hydraulic cutting (or saw-cut);cutting blades made of heat-treated Cr12 / Cr12MoV
Control system	PLC control (Siemens / Panasonic / Delta optional) — supports automatic forming,punching,cutting,length & quantity control
Decoiler	manual or hydraulic decoiler (capacity configurable,e.g. 3t–5t)
Material width	As per customer’s profile drawing / specification
Profile types	Upright rack columns / shelf upright posts / pallet rack uprights / warehouse shelving uprights
Power supply / Voltage	380 V,50 Hz,three-phase (customizable per customer requirement)

Key Product Advantages

1. High-Efficiency Mass Production: 5-15 m/min forming speed and integrated workflow shorten production cycles, improving overall efficiency by 35%.

2. User-Friendly Operation: Intuitive PLC interface allows quick mastery, reducing training costs and human errors.

3. Low Maintenance Cost: Scientific structure design enables easy component access, with long-life core parts reducing replacement expenses.

Quality & Safety Assurance

Strict pre-delivery inspection and safety protection system ensure operational safety and stable performance, complying with international industrial standards.
