Shelf Panel Roll Forming Machine

Product Attributes :

Contact Person： XN Duan

Mobile Phone：18832797029

WhatsApp:+86 18832797029

E-mail:yuankuoduan@gmail.com

Add：Zhenggang Road, Industrial Development Zone, Botou City, Hebei Province

Product Description

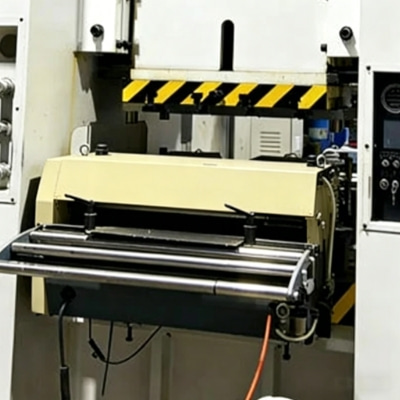

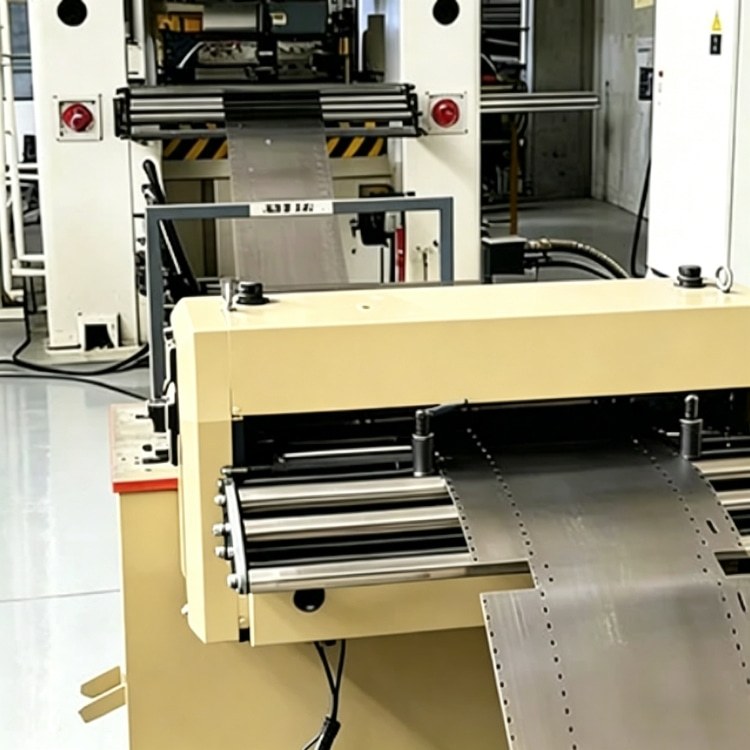

Built for speed and reliability, the Shelf Panel Roll Forming Machine maximizes throughput for high-volume shelf panel production. With a maximum forming speed of 12–20 m/min, it delivers continuous, consistent output without sacrificing precision. The integrated automatic feeding, punching, and cutting units eliminate bottlenecks, ensuring every panel moves seamlessly from coil to finished product.

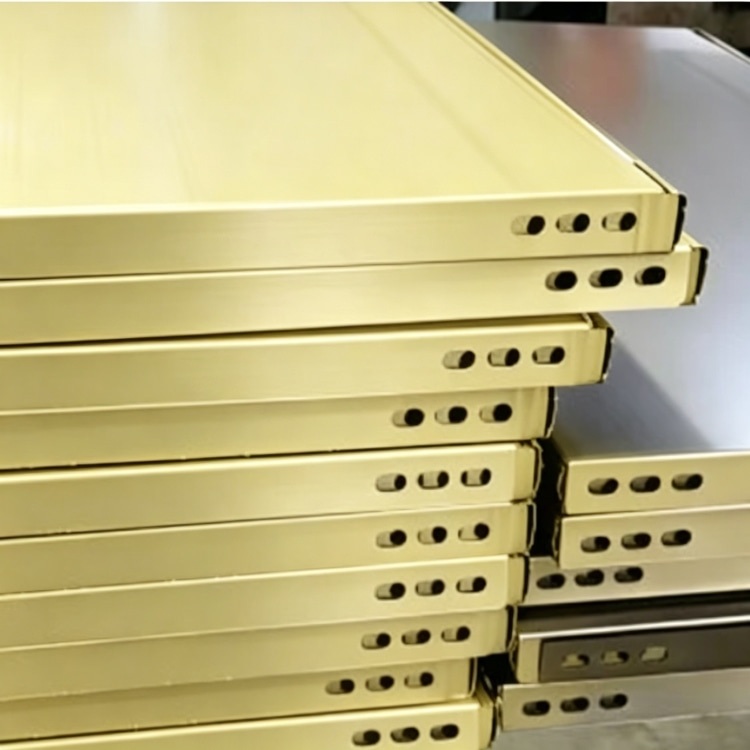

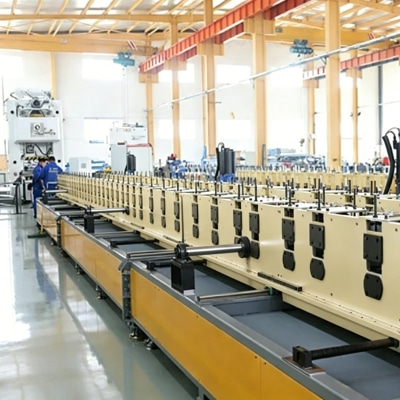

Shelf Panel Roll Forming Machine is professional industrial equipment for producing metal shelf panels. Adopting multi-station roller forming and PLC automatic control system, it features stable operation, high precision and high production speed. Suitable for manufacturing various metal shelf boards used in warehouse storage, supermarket shelves and logistics rack systems.

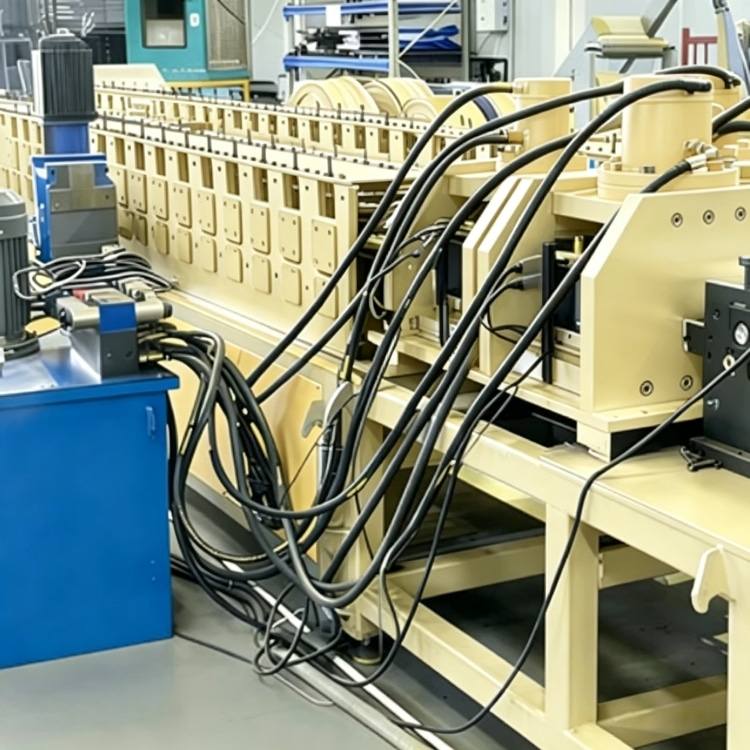

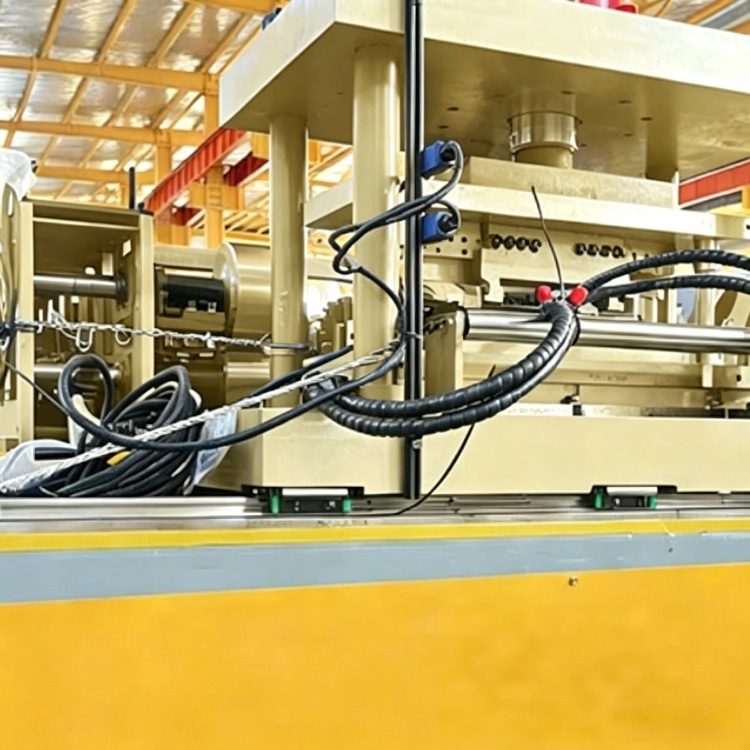

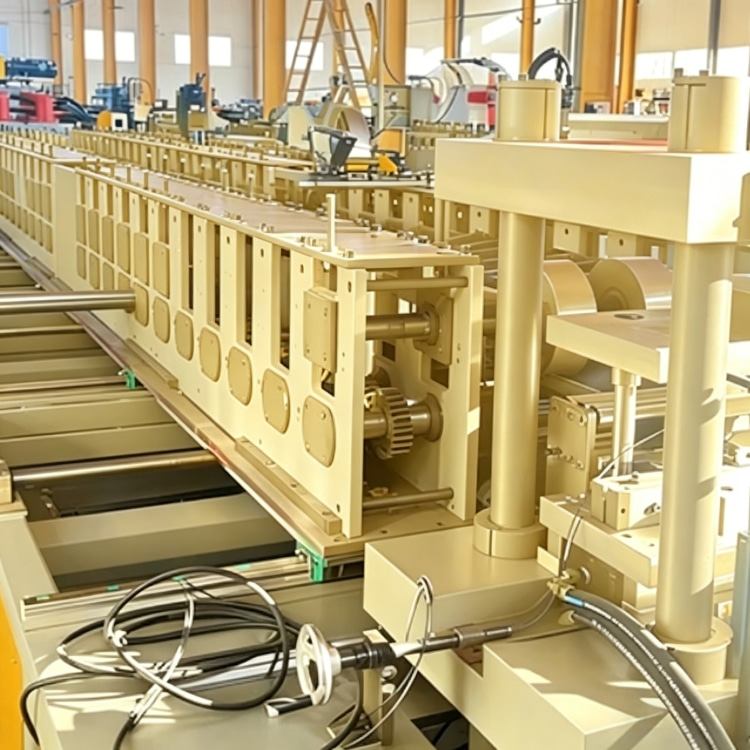

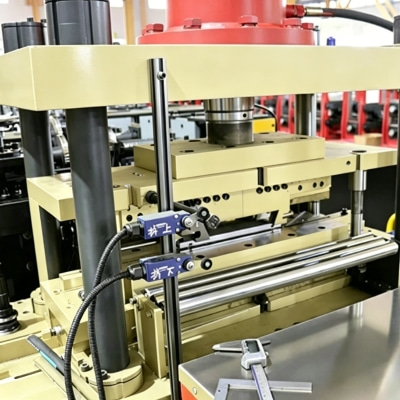

The machine’s forming section features 10–18 stations with hardened rollers, calibrated to handle material thicknesses of 0.8–1.50 mm and widths from 250–1000 mm. The high-speed rollers minimize friction and wear, maintaining dimensional accuracy over millions of cycles. Cutting options include flying cut, which cuts panels on the fly without stopping the line, and hydraulic shear for precise, clean edges, both achieving a tolerance of ±1 mm.

Parameter	Specification
Machine Type	Shelf Panel Roll Forming Machine
Material Thickness	0.8 – 1.50 mm
Material Width	250– 1000 mm
Forming Stations	10 – 18 stations
Max Forming Speed	12 – 20 m/min
Decoiler	Manual / Hydraulic / Motorized
Cutting Method	Flying Cut / Hydraulic Shear
Drive System	Electric / PLC Control
Power	15 – 30 kW
Machine Dimensions (L×W×H)	8–12 m x 1.5 m x 1.8 m
Machine Weight	6 – 12 tons
Tolerance	±1 mm
Suitable Material	Cold Rolled Steel / Galvanized Steel
Optional Features	Automatic Punching,Stacking,Labeling

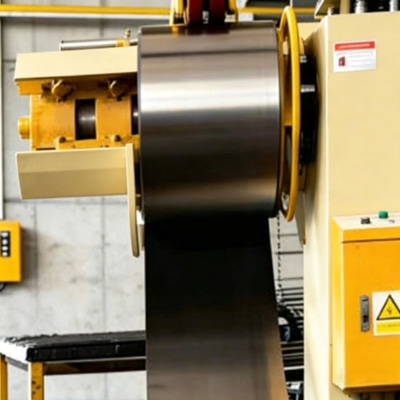

Controlled by a PLC system, the machine offers real-time monitoring of production metrics, allowing operators to optimize speed and material usage. The decoller supports motorized feeding for large coils, reducing downtime for coil changes. With a power requirement of 15–30 kW, the machine operates efficiently, minimizing energy costs while delivering full production capacity. Its robust steel frame, weighing 6–12 tons, ensures stability at high speeds, reducing maintenance needs and downtime. For manufacturers looking to scale production and meet tight deadlines, this machine offers unmatched efficiency.
