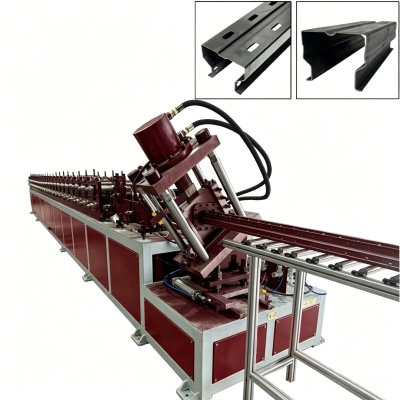

The Heavy-Duty Upright Roll Forming Machine is designed with the operator in mind, featuring intuitive controls and simplified maintenance to minimize training time and maximize uptime.
The Schneider PLC control system includes a user-friendly interface with clear displays and pre-programmed recipes for common upright profiles. Operators can adjust parameters like feed speed, cut length, and hole pattern with just a few taps, reducing setup time and minimizing errors. The transducer-controlled speed regulation allows smooth adjustments to match material type and thickness, ensuring optimal performance.

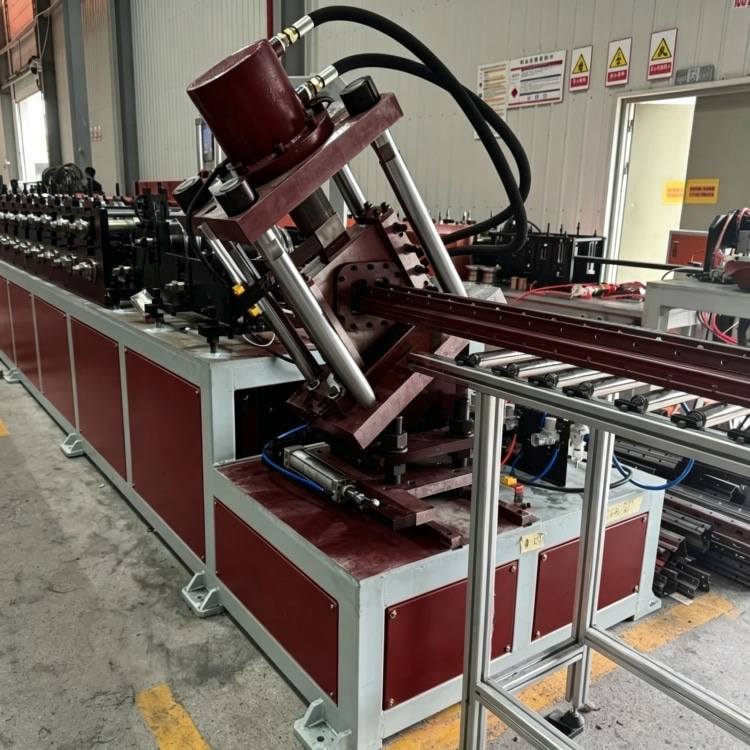

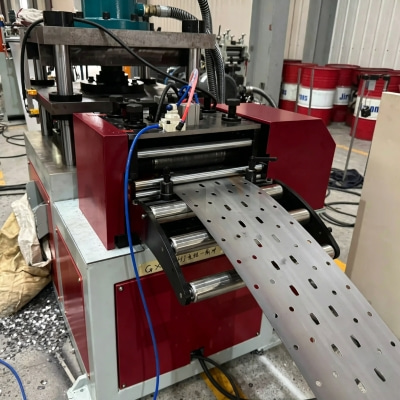

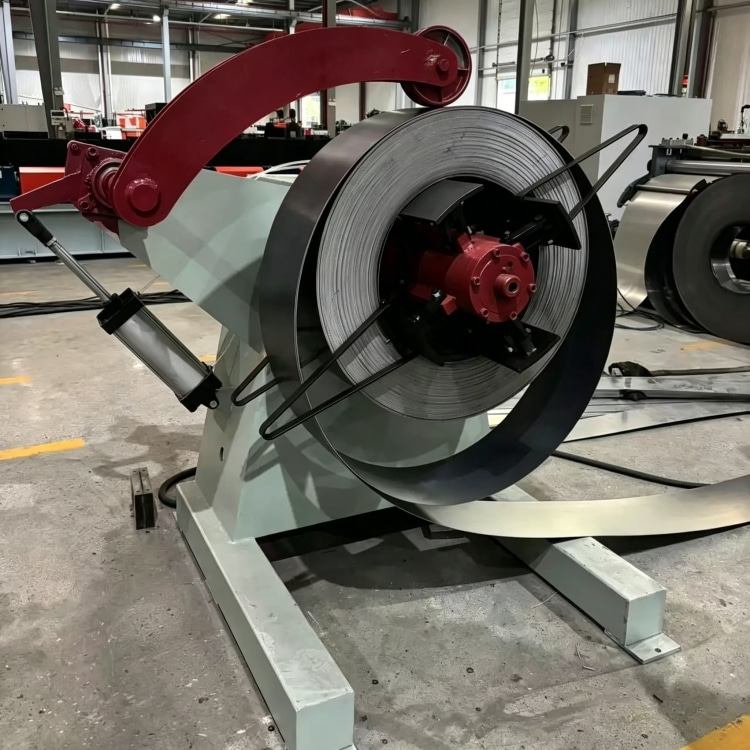

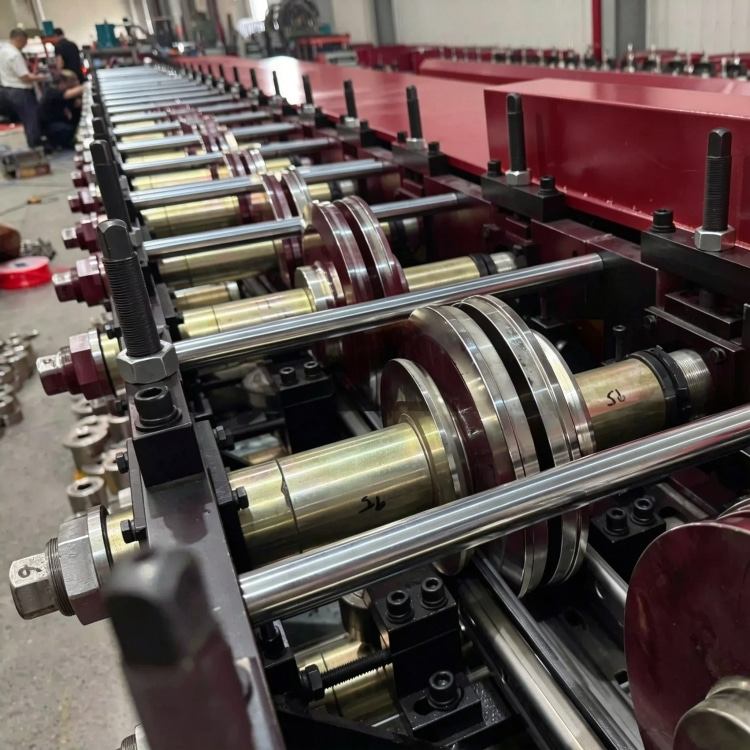

The machine’s modular design makes maintenance straightforward, with easy access to key components like forming rollers, punching molds, and cut-off blades. The decoiler’s brake system is easily adjustable, while the leveler’s rollers can be removed for cleaning or replacement. The hydraulic system includes pressure gauges and filters for quick diagnostics, and the optional water cooling system features easy-to-access filters for routine maintenance.
Features &Specification
|
Parament
|
Specification
|
|
Suitable material
|
HCR Coil / Carbon Steel Coil,GI Coil
|
|
Material Thickness
|
1.8-2.5mm
|
|
Working speed
|
1~10m/min
|
|

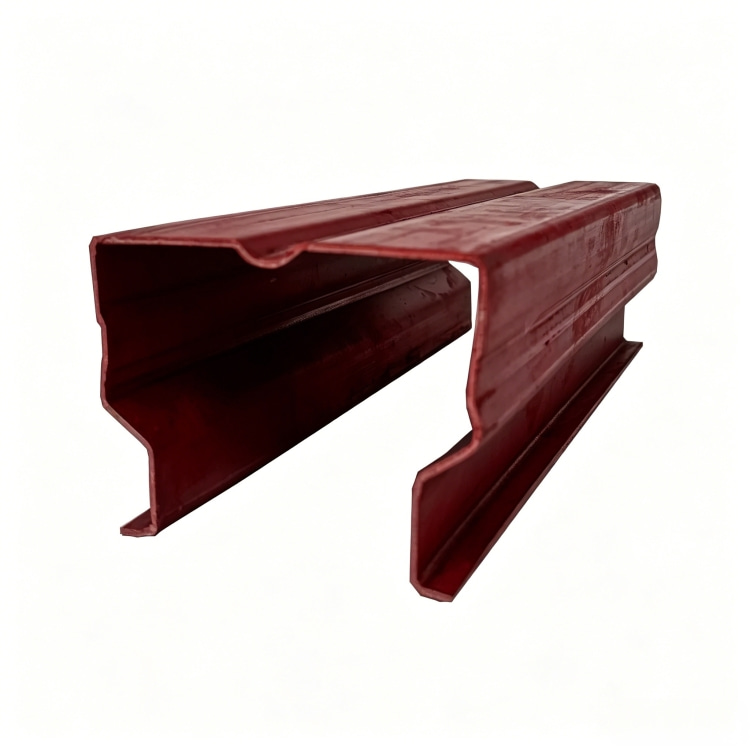

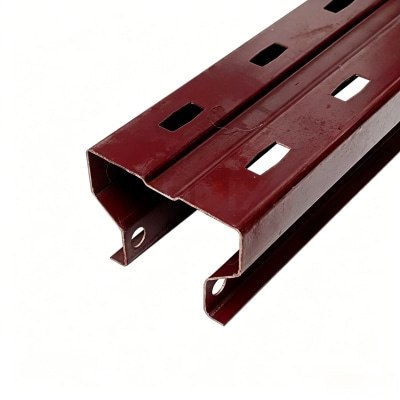

Profile
|
80/100/120*70mm
|
Safety features, including emergency stop buttons and protective guards, are integrated throughout the line, ensuring a secure working environment. The low-noise operation creates a comfortable workplace, while the 6-meter run-out table reduces manual handling of finished profiles. With its operator-friendly design, this machine is suitable for both experienced technicians and new operators, maximizing productivity while minimizing training time.
