Product Description
Product Overview

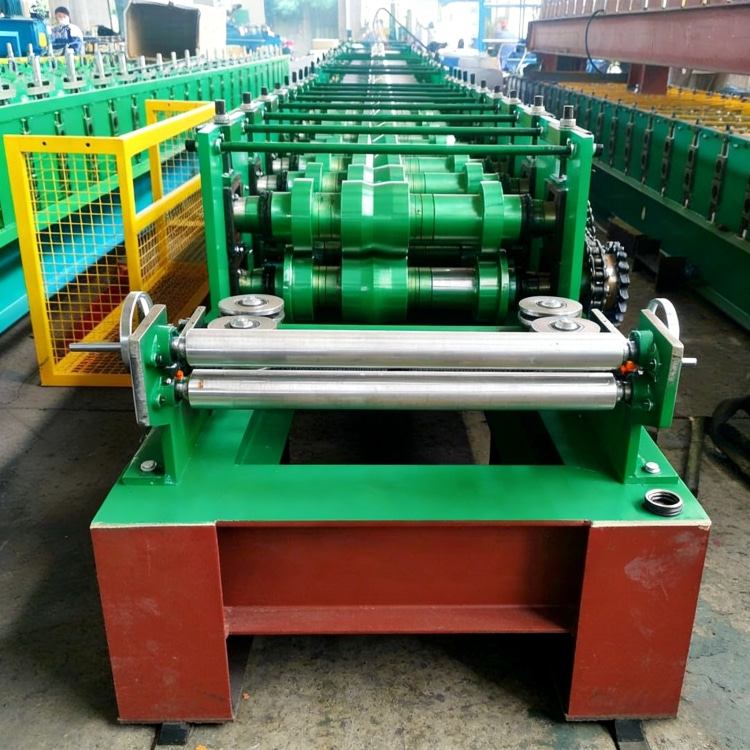

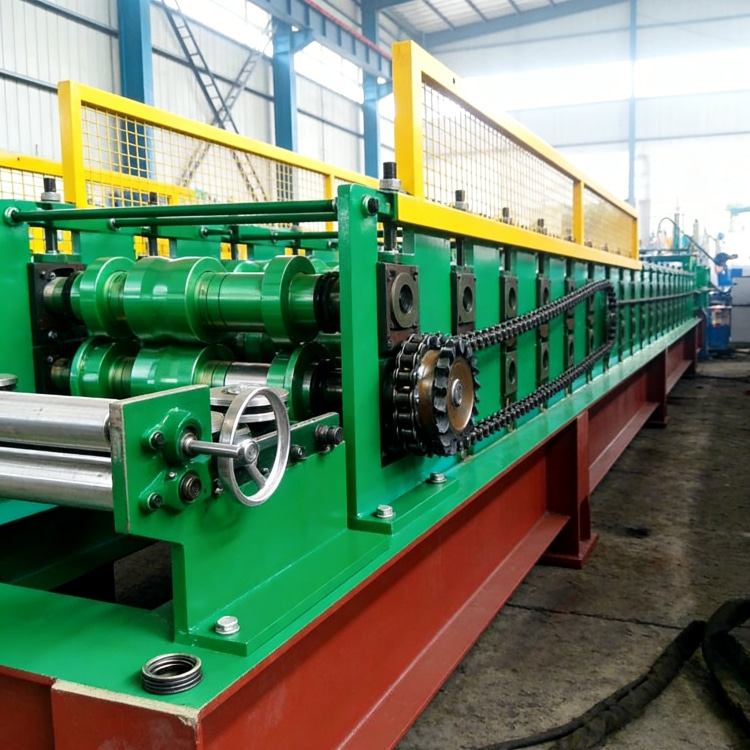

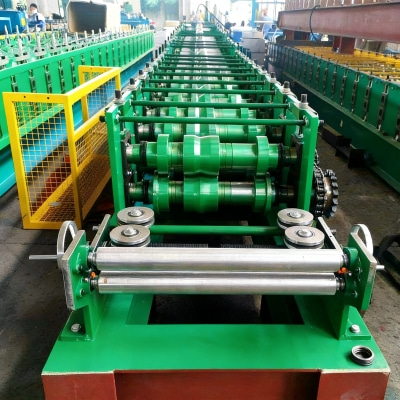

Our Storage Rack Shelf Beam Roll Forming Machine is a specialized cold-forming device designed for manufacturing high-load shelf beams—core components of commercial storage racks, warehouse shelves, and retail display racks. Integrating precision section forming, fast mold switching, and low energy consumption, it’s a key production tool for shelf manufacturers in 105+ countries, suitable for beams bearing light to heavy goods.

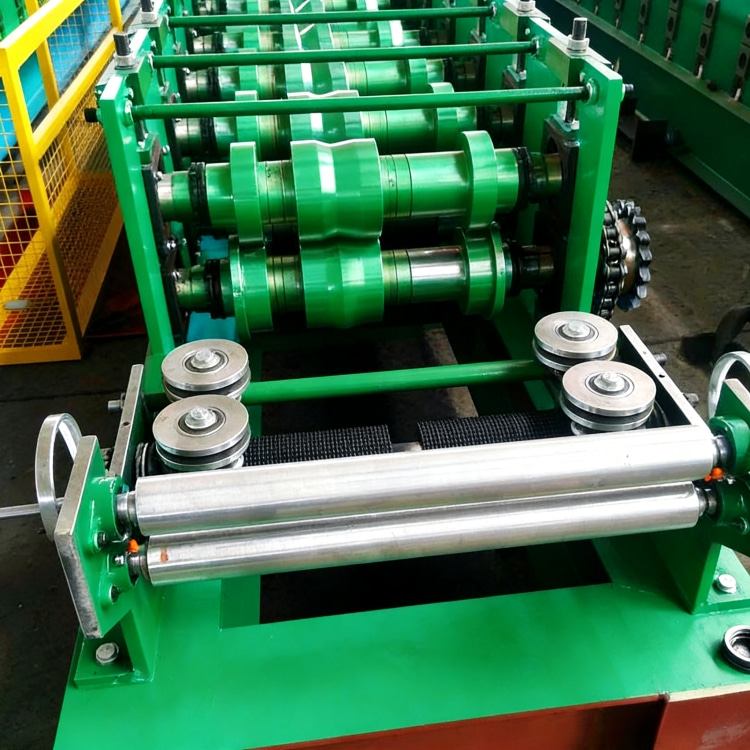

The machine features roller sets made from imported Swedish SS2343 alloy steel. After double quenching and 5-axis grinding, the roller surface hardness reaches HRC65, stably processing 1.0–3.5 mm Q355B carbon steel, galvanized steel, and color-coated steel. Its modular quick-change system completes mold replacement within 18 minutes, supporting beams with widths 150–500 mm and heights 80–250 mm.
Technical Advantages
High-Precision Control: Equipped with Yaskawa servo motors and Siemens S7-1200 PLC, it maintains beam dimensional accuracy within ±0.2 mm and flange flatness below 0.35 mm/m, complying with GB/T 27924-2011 and ANSI MH16.1 standards.
Efficient Integrated Process: Automatic feeding → leveling → forming → punching → cutting workflow reduces production time by 55% and material waste to 1.0%, eliminating secondary processing.
Stable Productivity: Single machine produces up to150 sets of beams daily, 3 times the output of traditional equipment, meeting batch production needs.
Safety & Quality Assurance
Dual infrared safety gratings and emergency stops achieve 0.05s shutdown response. Laser inspection real-time monitors beam thickness and hole position, ensuring each beam bears 1800 kg+ without deformation.
Material Compatibility
Supports 1.0–3.5 mm Q355B steel, hot-dip galvanized steel (zinc layer ≥ 160g/m²), and zinc-aluminum steel. Adaptive roller pressure (8–22 MPa) preserves material toughness and corrosion resistance.
Global Service & Certifications
Pre-sales: Multilingual support and layout planning; Sales: Customs clearance and on-site training; After-sales: 30-month core component warranty and 24/7 technical support.
Certifications: CE | ISO9001 | SGS | TUV | ANSI MH16.1
Typical Applications
Beam production for warehouse storage racks, retail display shelves, cold-chain storage racks, and logistics distribution center shelves.
