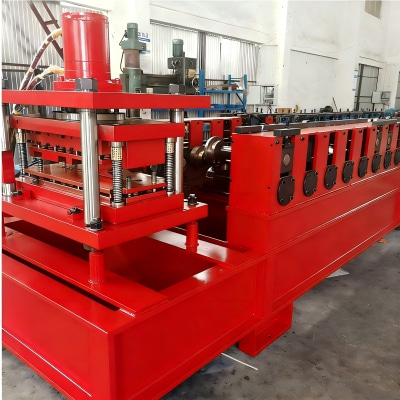

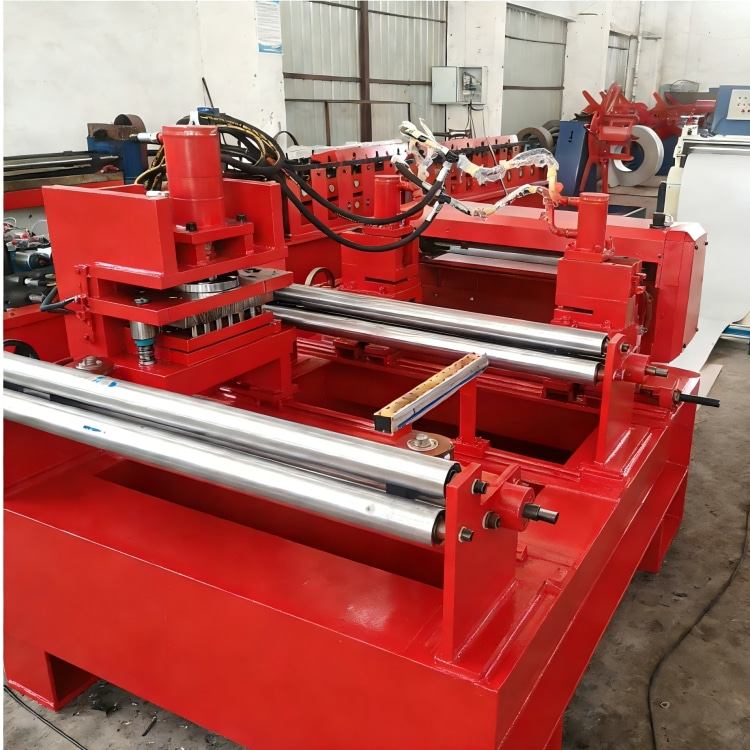

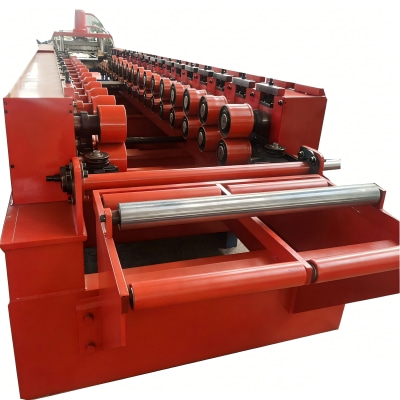

Product Overview
This machine is a high-efficiency economic option for mass supermarket rack panel production. It integrates user-friendly operation and low maintenance design, reducing labor costs while ensuring stable output, ideal for supermarket rack manufacturers pursuing cost-effectiveness.
Core Technical Specifications
-
Raw material: Cold-rolled steel, Galvanized steel (optional stainless / color-coated steel)
-
Material thickness: 1.5 – 3.0 mm
-
Roller material: GCr15 (or optional Cr12) alloy steel, heat treated (quenched / hardened)
-
Roller hardness: HRC 58 – 62° (depending on heat treatment)
-

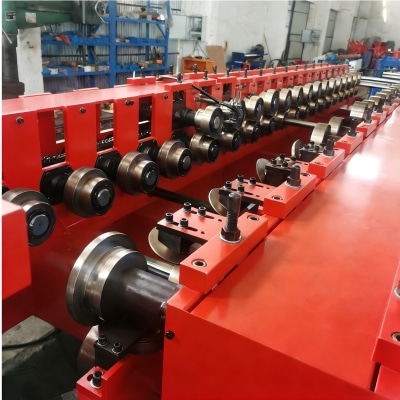

Number of forming stations: 16 – 28 stations (profile dependent)
-
Forming (line) speed: 5 – 15 m/min (depending on profile & configuration)
-
Main motor power: 15 – 22 kW (depending on model)
-
Cutting / Shearing system: Hydraulic cutting (or saw-cut); cutting blades made of heat-treated Cr12 / Cr12MoV
-
Control system: PLC control (Siemens / Panasonic / Delta optional) — supports automatic forming, punching, cutting, length & quantity control
-
Decoiler: Manual or hydraulic decoiler (capacity configurable, e.g. 3t–5t)
-
Material width: As per customer’s profile drawing / specification
-
Power supply / Voltage: 380 V, 50 Hz, three-phase (customizable per customer requirement)
|
Parameter
|
Specification
|
|
Raw material
|
Cold-rolled steel,Galvanized steel (optional stainless / color-coated steel)
|
|
Material thickness
|
1.5 – 3.0 mm
|
|
Roller material
|
GCr15 (or optional Cr12) alloy steel,heat treated (quenched / hardened)
|
|
Roller hardness
|
HRC 58 – 62° (depending on heat treatment)
|
|
Number of forming stations
|
16 – 28 stations (profile dependent)
|
|
Forming (line) speed
|
5 – 15 m/min (depending on profile & configuration)
|
|
Main motor power
|
15 – 22 kW (depending on model)
|
|
Cutting / Shearing system
|
Hydraulic cutting (or saw-cut);cutting blades made of heat-treated Cr12 / Cr12MoV
|
|
Control system
|
PLC control (Siemens / Panasonic / Delta optional) — supports automatic forming,punching,cutting,length & quantity control
|
|
Decoiler
|
manual or hydraulic decoiler (capacity configurable,e.g. 3t–5t)
|
|
Material width
|
As per customer’s profile drawing / specification
|
|
Profile types
|
Upright rack columns / shelf upright posts / pallet rack uprights / warehouse shelving uprights
|
|
Power supply / Voltage
|
380 V,50 Hz,three-phase (customizable per customer requirement)
|
Key Product Advantages
1. High-Efficiency Mass Production: 5-15 m/min forming speed and integrated workflow shorten cycles, meeting supermarket rack’s large-batch delivery needs.
2. Easy Operation: Intuitive PLC interface allows quick mastery, reducing training costs for manufacturers with frequent staff turnover.
3. Low Maintenance: Scientific structure enables easy component access, with long-life core parts reducing replacement and downtime costs.
Quality & Safety Assurance
Strict pre-delivery inspection and safety protection system ensure operational safety and stable performance, complying with international industrial standards.
Global Service Support
Provide global logistics, on-site installation by professional engineers, 24/7 online technical assistance and lifelong maintenance guidance.
Typical Applications
Widely applied in mass production of panels for supermarket chain store racks, daily necessities storage shelves and backstage warehouse racks.
