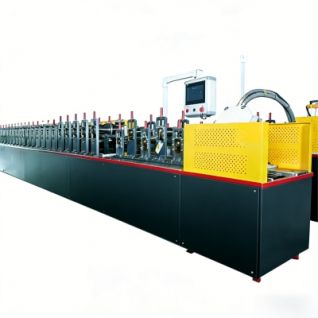

Xinnuo's Upright Rack Shelf Roll Forming Machine is a cutting-edge industrial solution designed to produce high-quality storage rack uprights with precision and efficiency. As a flagship product from Hebei Xinnuo Roll Forming Machine Co., Ltd. (established in 1998), this machine combines advanced technology with robust construction to deliver exceptional performance for warehouse and commercial storage applications.
The Upright Rack Shelf Roll Forming Machine processes galvanized steel or cold-rolled steel coils with thicknesses ranging from 0.8-3.0mm, transforming them into sturdy rack uprights with remarkable precision.
Key Technical Features:
- Forming Stations: 20-26 precision-designed stations for consistent profile formation
- Production Speed: Up to 15 meters per minute, significantly increasing output while maintaining quality
- Material Compatibility: Works with various steel types including galvanized, carbon steel, and stainless steel
- Profile Accuracy: Maintains dimensional tolerance within ±0.3mm, ensuring seamless rack assembly

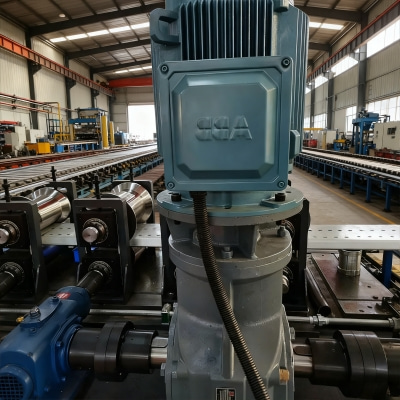

- Power System: Equipped with a 22kW high-efficiency motor for reliable operation
Xinnuo's machine stands out from competitors with its innovative features:
-
Fully Automated Process: Integrates decoiling, leveling, punching, roll forming, and cutting in one continuous operation, reducing manual intervention and increasing productivity by 500%.
-
Intelligent Control System: Features a PLC-based control panel with HMI interface, allowing operators to easily input specifications and monitor production in real-time.
-
Servo-Driven Tracing Cutoff: Eliminates downtime by performing cuts while the machine continues running, ensuring uninterrupted production flow.
-
Heavy-Duty Construction: Built with welded steel structure for superior stability and durability, capable of withstanding continuous industrial use.
-
Customization Capability: Easily adapts to produce various upright profiles (standard or specialized) to meet diverse customer requirements.
The machine follows a streamlined production workflow:

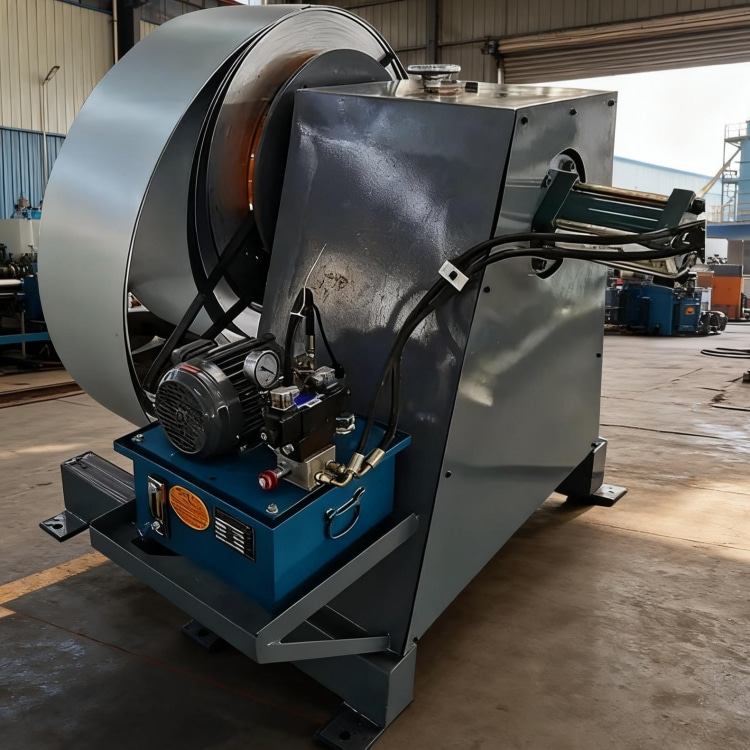

- Material Loading: Coils are placed on the 5-ton capacity decoiler
- Precision Leveling: Material passes through the leveling unit to eliminate any imperfections

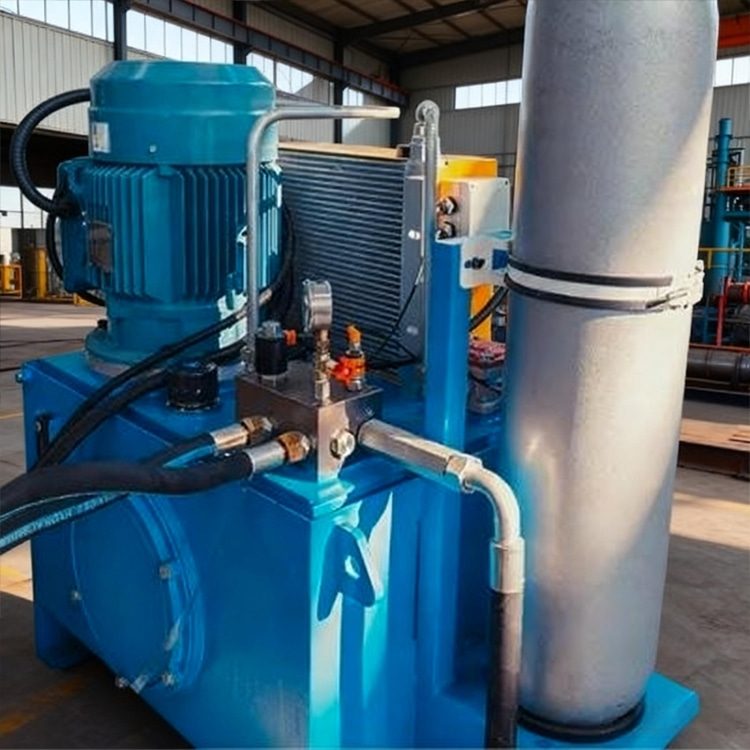

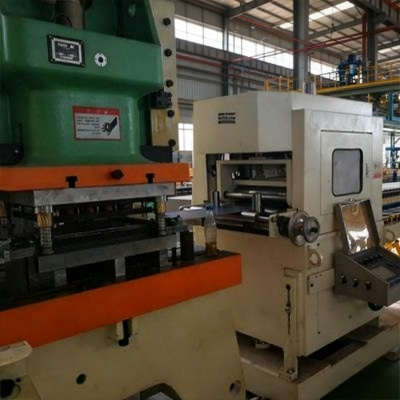

- Advanced Punching: Hydraulic punching system creates precise holes for beam connections

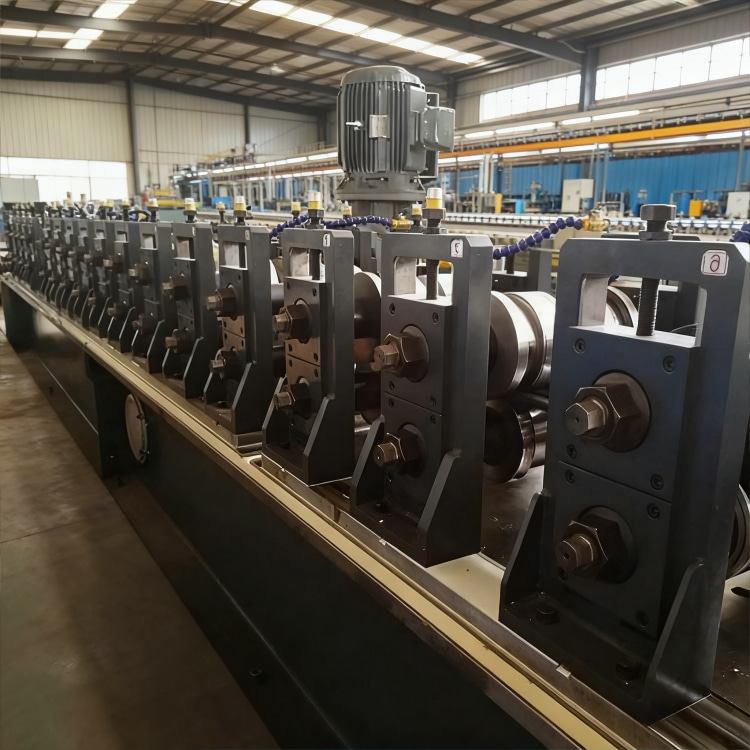

- Roll Forming: The heart of the machine shapes the steel into the desired upright profile through progressive rollers

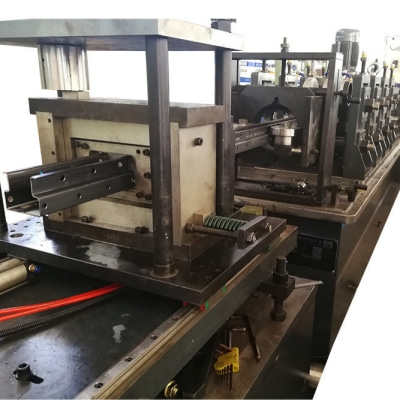

- Exact Cutting: The servo-driven cutting system trims the formed upright to specified lengths with minimal waste

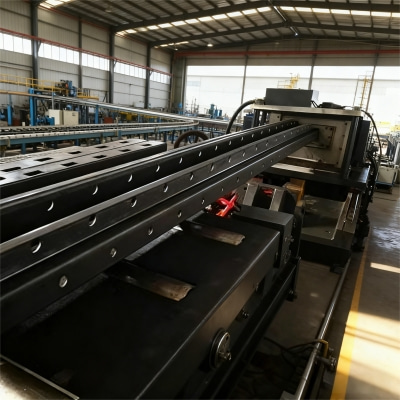

- Effortless Discharge: Finished uprights are conveyed to the output table for easy collection
Investing in Xinnuo's Upright Rack Shelf Roll Forming Machine delivers substantial advantages:
- Cost Efficiency: Reduces labor costs by over 65% while increasing production capacity 4-5 times
- Superior Quality: Produces uniform, high-strength uprights that enhance shelf stability and load-bearing capacity
- Versatility: Adaptable to produce light-duty, medium-duty, and heavy-duty rack systems for various industries
- Quick Return on Investment: Achieves payback in less than 12 months through increased productivity and reduced operational costs
- Reliable Service: Backed by Xinnuo's dedicated technical support team and comprehensive after-sales service
Ideal for manufacturers of:
- Warehouse storage systems
- Retail shelving units
- Industrial racking solutions
- Mezzanine flooring supports
- Automated storage systems
With over 25 years of experience in roll forming technology and a team of 200+ skilled professionals, Xinnuo has established itself as a leading supplier in northern China. Our Upright Rack Shelf Roll Forming Machine represents the pinnacle of our engineering expertise, combining German precision with Chinese reliability.
For businesses seeking to upgrade their production capabilities and stay ahead in the competitive storage industry, Xinnuo's Upright Rack Shelf Roll Forming Machine is the definitive choice - a robust, efficient, and future-proof solution that transforms raw materials into high-value storage components with unmatched precision and speed.
Contact us today to discuss how this innovative machine can revolutionize your storage manufacturing operations.
