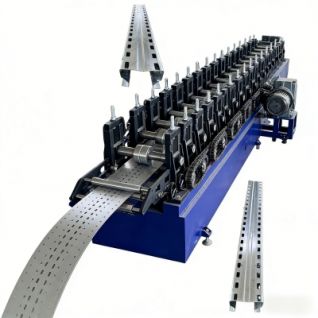

Warehouse Shelf Upright Roll Forming Machine

The Warehouse Shelf Upright Roll Forming Machine is a high-efficiency and fully automated production line developed for mass manufacturing pallet rack uprights and warehouse shelving columns. It is specially engineered to meet the structural requirements of modern storage systems, producing strong, precise, and durable uprights suitable for heavy-duty pallet racking applications.

This machine supports standard upright designs such as 3″ × 3″ columns with 5″ × 8″ base plates, and is capable of processing thick steel materials up to 3.5 mm, ensuring excellent load-bearing performance for industrial warehouse use. It is compatible with galvanized steel and cold-rolled steel coils, offering flexibility for different market and project requirements.

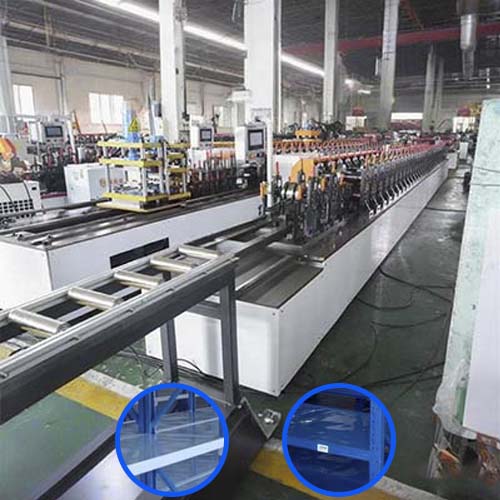

Although the upright profile structure may vary from conventional shelving sections, the forming principle remains reliable and proven. The complete forming process is carried out through a well-organized sequence of equipment, including a heavy-duty decoiler, feeding and leveling system, precision hydraulic punching unit, main roll forming mill, and a hydraulic post-cutting device. Each stage works in perfect coordination to ensure dimensional accuracy and stable production.

The hydraulic punching system allows holes, slots, and connection patterns to be created accurately according to customized rack designs. After punching, the strip enters the roll forming section, where multiple forming stations gradually shape the steel into the required upright profile without damaging the material surface.

Motor speed is regulated by an inverter, while the PLC control system manages product length, punching position, and production quantity automatically. This intelligent control ensures continuous, stable, and efficient operation with minimal manual intervention.

With its high automation level, consistent output quality, and reduced labor requirement, the Warehouse Shelf Upright Roll Forming Machine is an ideal solution for manufacturers in the cold roll forming industry seeking reliable and cost-effective warehouse rack production equipment.
