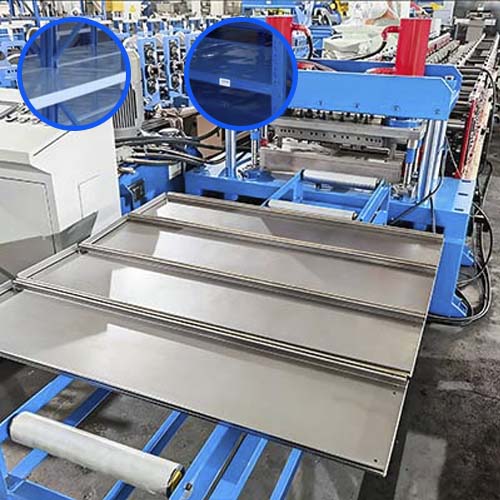

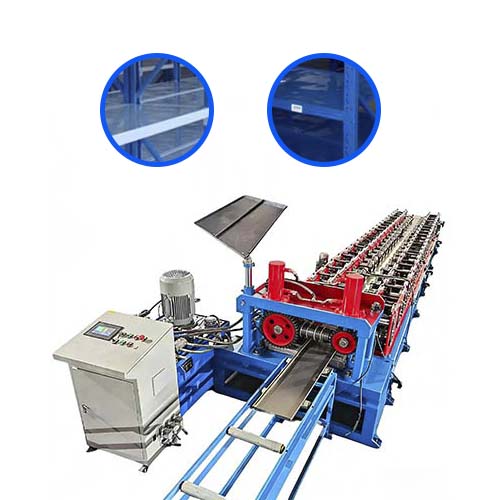

The Smartech Shelf Rack Roll Forming Machine is a highly efficient and fully automated production solution designed specifically for manufacturing metal shelf rack components used in storage systems, warehouses, supermarkets, and industrial shelving. Engineered with stability, precision, and productivity in mind, this machine integrates multiple processes into one continuous forming line.

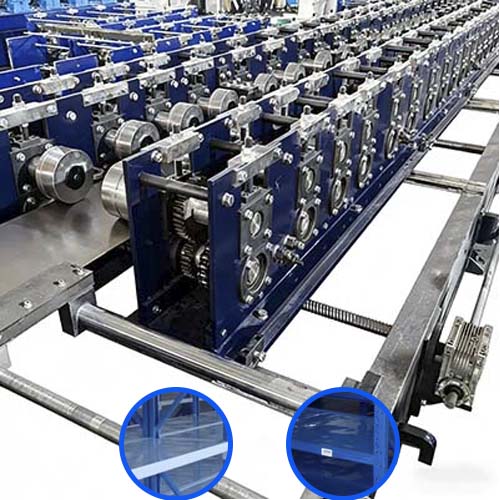

The complete production line is composed of a hydraulic or manual decoiler, precision feeding unit, punching or notching system, roll forming stations, cutting unit, and an advanced electrical control system. To meet different production requirements, optional equipment such as a pre-cutting device, protective film covering system, and automatic receiving or stacking tables can be added, significantly improving automation and labor efficiency.
| No | Item | Parameter | Remark |
|---|---|---|---|
| 1 | Suitable Material | Type: PPGI | |
| Width(mm): 410/510/610/710mm | customize | ||
| Thickness(mm): 0.5-0.8 | customize | ||
| Yield Strength(Mpa): 230-300 | customize | ||
| 2 | Forming Speed(m/min) | 20 | |
| 3 | Roller Material | No.45 Steel with Chromepalte | Up to buyer |
| 4 | Roller Shaft Diameter | 70 | customize |
| 5 | Cutting Model | Hydraulic Cutting | |
| 6 | Power source | Type: 380V/3PH/50HZ | Up to buyer |
| Total Power: According to actual design |
Sheet length and quantity are easily controlled through a user-friendly touch screen interface. By combining PLC control with a high-accuracy encoder, the machine ensures precise cutting at preset lengths with minimal tolerance. Operators can store and manage up to 20 different production batches within the control system, allowing quick switching between profiles and flexible order handling.
This roll forming machine operates continuously and automatically, ensuring smooth material flow, consistent profile shape, and high output. It is suitable for producing a wide range of shelf rack profiles, including beams, supports, and other structural components required for shelving systems.
In a complete shelving solution, multiple profiles are usually required, making the shelf rack roll forming machine a key piece of equipment. In addition, the shelf rack post roll forming machine plays an equally critical role by producing upright posts that ensure the strength and stability of the entire shelving structure.
With reliable performance, low maintenance requirements, and strong adaptability, the Smartech Shelf Rack Roll Forming Machine is an ideal choice for manufacturers seeking to improve efficiency, product consistency, and overall production capacity in the shelving industry.
Founded in 1995, we specialize in advanced rack roll forming machine solutions for shelving and racking systems. With strong R&D and precision manufacturing, our rack roll forming machine ensures quality, efficiency, and reliability
