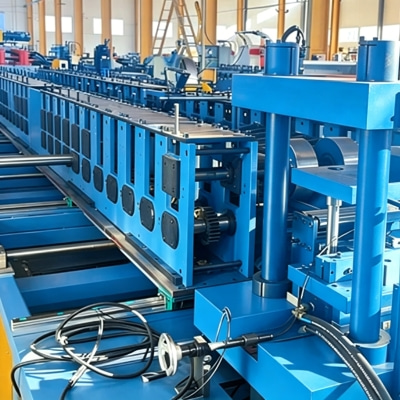

Shelf Panel Roll Forming Machine

Product Attributes :

Contact Person： XN Duan

Mobile Phone：18832797029

WhatsApp:+86 18832797029

E-mail:yuankuoduan@gmail.com

Add：Zhenggang Road, Industrial Development Zone, Botou City, Hebei Province

Product Description

The Shelf Panel Roll Forming Machine is designed to integrate seamlessly into modern manufacturing workflows, reducing manual labor and streamlining production. Its modular design allows for easy addition of optional features like automatic punching, stacking, and labeling, creating a fully automated line from coil to finished product.

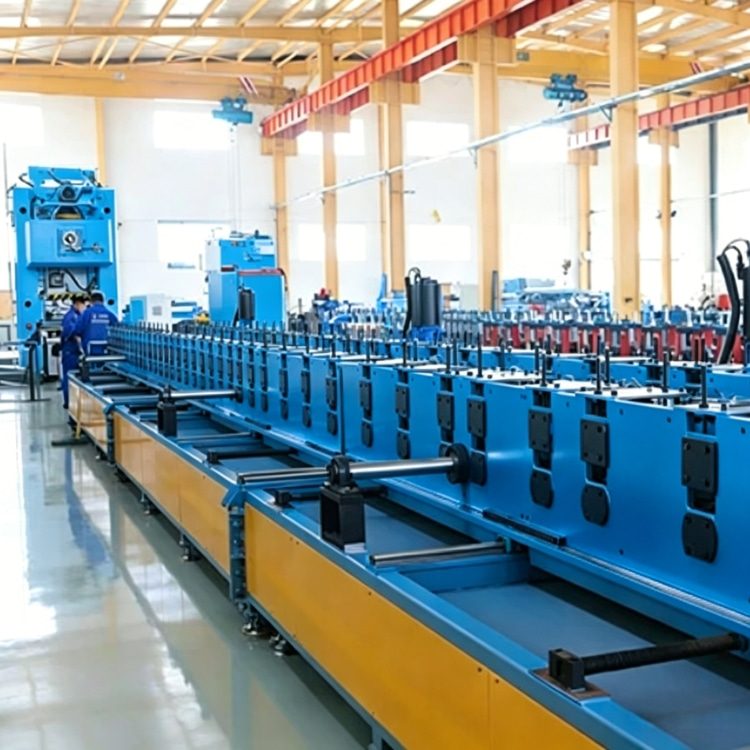

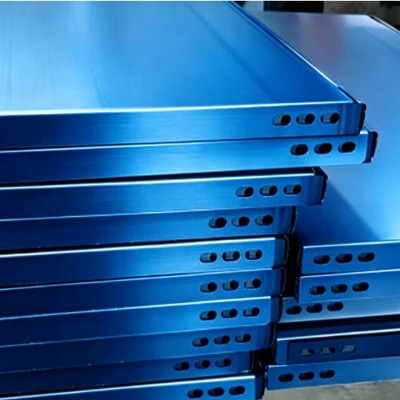

Shelf Panel Roll Forming Machine is professional industrial equipment for producing metal shelf panels. Adopting multi-station roller forming and PLC automatic control system, it features stable operation, high precision and high production speed. Suitable for manufacturing various metal shelf boards used in warehouse storage, supermarket shelves and logistics rack systems.

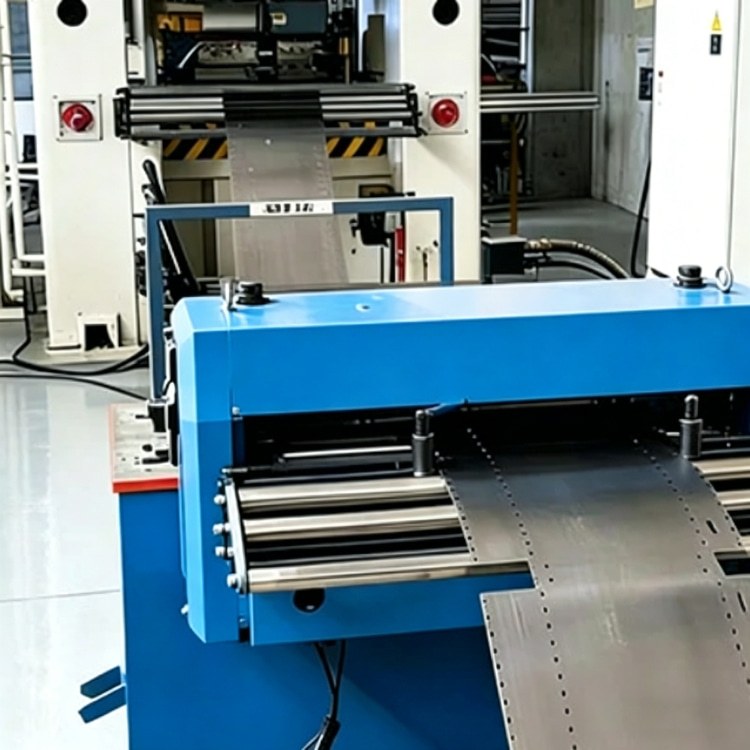

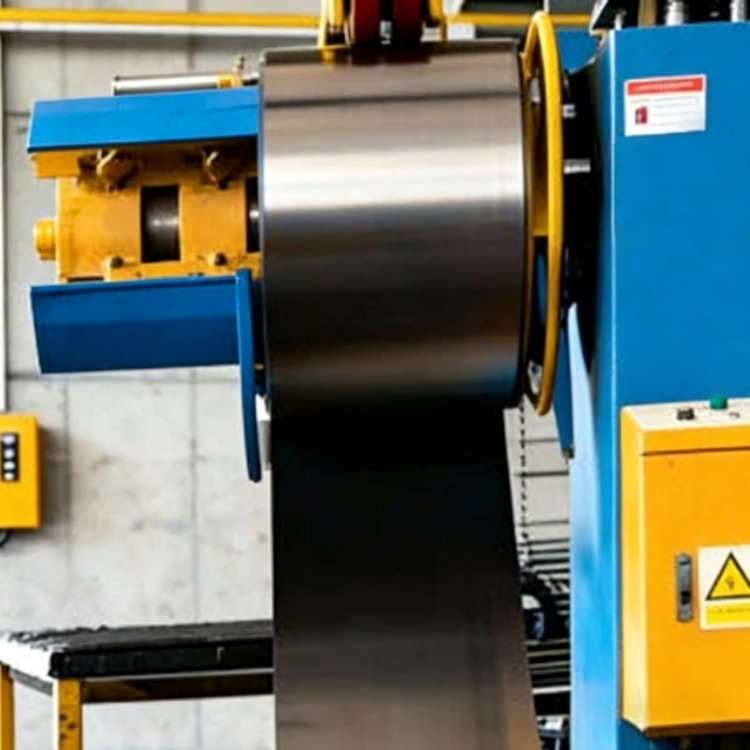

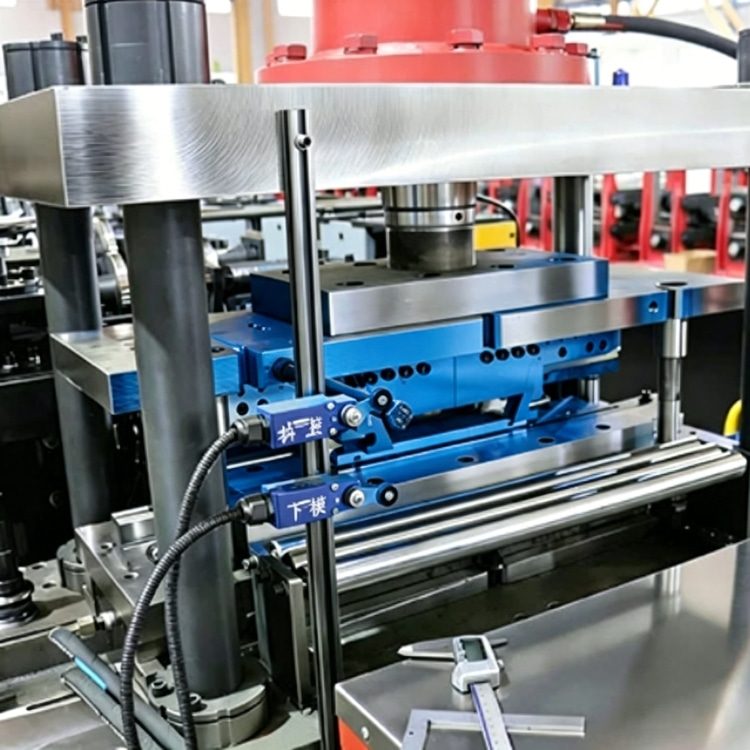

The machine’s core components work in harmony: the decoller feeds the coil into the line, automatic punching creates mounting holes, forming stations shape the panel, and cutting units finish the part. The PLC control system coordinates all steps, ensuring smooth transitions between processes. The decoller supports manual, hydraulic, or motorized feeding to match varying coil sizes, while the forming section processes material thicknesses of 0.8–1.50 mm and widths from 250–1000 mm.

Parameter	Specification
Machine Type	Shelf Panel Roll Forming Machine
Material Thickness	0.8 – 1.50 mm
Material Width	250– 1000 mm
Forming Stations	10 – 18 stations
Max Forming Speed	12 – 20 m/min
Decoiler	Manual / Hydraulic / Motorized
Cutting Method	Flying Cut / Hydraulic Shear
Drive System	Electric / PLC Control
Power	15 – 30 kW
Machine Dimensions (L×W×H)	8–12 m x 1.5 m x 1.8 m
Machine Weight	6 – 12 tons
Tolerance	±1 mm
Suitable Material	Cold Rolled Steel / Galvanized Steel
Optional Features	Automatic Punching,Stacking,Labeling

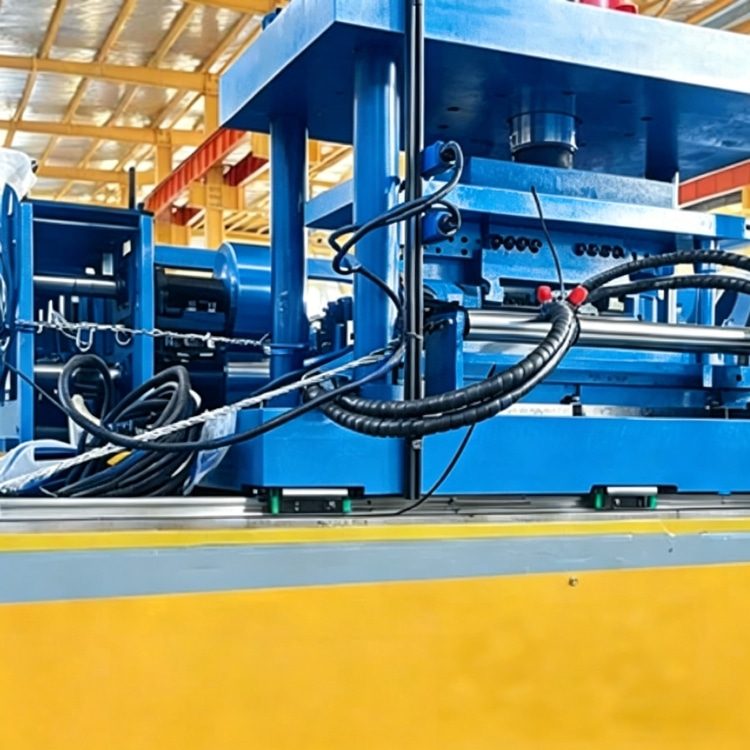

Cutting options include flying cut for continuous production and hydraulic shear for precision cuts, both delivering a tolerance of ±1 mm. The machine’s compact footprint, measuring 8–12 m × 1.5 m × 1.8 m, allows it to fit into most factory layouts, while its power requirement of 15–30 kW ensures compatibility with standard industrial power supplies. With its ability to integrate with downstream processes like painting and assembly, this machine creates a fully optimized production line, reducing labor costs and lead times.
