Product Description
Product Overview
Our Shelving Panel Roll Forming Machine is professionally developed for manufacturing high-flatness, load-bearing panels for warehouse racks, supermarket shelves, and convenience store storage units. From the anti-deformation steel frame to the smart control system, every component is precision-tailored to deliver uniform surface forming, fast specification switching, and stable batch production, becoming a core equipment for shelving manufacturers across 75+ countries.

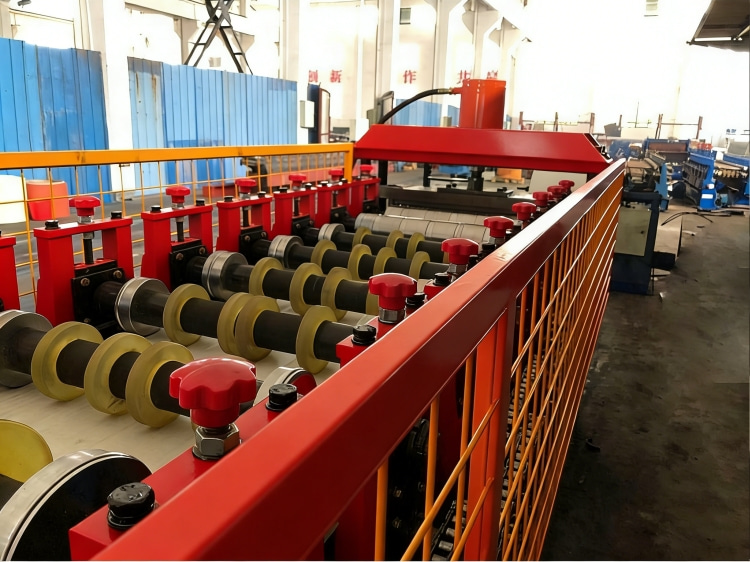

The machine is equipped with wear-resistant roller assemblies made from imported Swiss 20CrNiMo alloy steel. After carburizing, quenching, and precision grinding, the roller surface hardness reaches HRC63, ensuring consistent forming quality when processing 1.0–2.8 mm galvanized steel, cold-rolled steel, and color-coated steel sheets. Its modular roller design enables quick replacement within 20 minutes, supporting shelving panels with widths ranging from 400mm to 1000mm to fit diverse shelf specifications.
Technical Advantages
High-Flatness Forming System: Adopting Panasonic high-precision servo motors and Siemens S7-1200 PLC control, the machine maintains panel dimensional accuracy within ±0.2 mm and surface flatness below 0.3 mm/m, fully complying with GB/T 2518-2019 and ANSI MH16.1 standards.
Integrated Production Process: The one-stop workflow of online forming, edge trimming, and servo punching eliminates secondary processing, reducing total production time by 52% and lowering material waste to less than 1.2%—a significant cost-saving advantage for mass production.
Efficient Batch Production: A single machine can produce up to 160 sets of shelving panels per day, which is 3 times the output of traditional semi-automatic lines, easily meeting peak demand from retail and logistics industries.
Safety & Quality Assurance
To ensure operator safety and product consistency, the machine integrates dual-beam infrared safety gratings that trigger an automatic stop within 0.06 seconds when foreign objects intrude. A 3D optical inspection system monitors panel surface defects, edge straightness, and hole position accuracy in real-time, automatically sorting non-conforming products. This guarantees stable quality even during 24/7 continuous production.

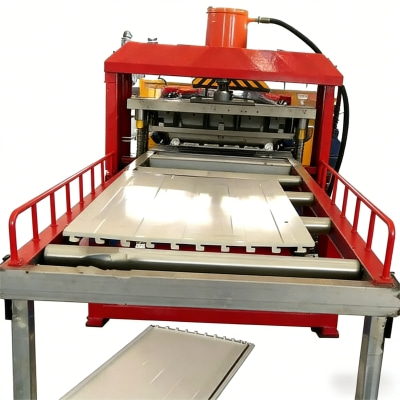

Shelving Panel Roll Forming Machine
Material Compatibility
The machine supports a variety of mainstream materials, including 1.0–2.8 mm hot-dip galvanized steel (zinc layer thickness 80-150g/m²), cold-rolled steel, and polyester color-coated steel. Through adaptive roller pressure control and constant-temperature cooling technology, it perfectly preserves the material’s surface coating and structural strength, making finished panels suitable for dry warehouses, food storage facilities, and humid cold-chain environments.
One-Stop Global Service
We provide comprehensive service solutions covering the entire equipment lifecycle, tailored to global clients:
Pre-sales consulting: Multilingual technical support (English, French, Korean, Arabic), on-demand production line planning, and panel specification optimization based on local market needs.
Sales support: Professional handling of customs clearance, international shipping (sea/air/land), on-site installation and commissioning, as well as 3-day systematic training for operators and maintenance teams.
After-sales service: 24/7 online technical assistance via video call, 24-month warranty for core components (rollers, servo motors, PLC), lifetime maintenance guidance, and free software upgrades for 4 years.
Certifications
CE | ISO9001 | SGS | TUV | ANSI MH16.1 | BS EN 15512
Typical Applications

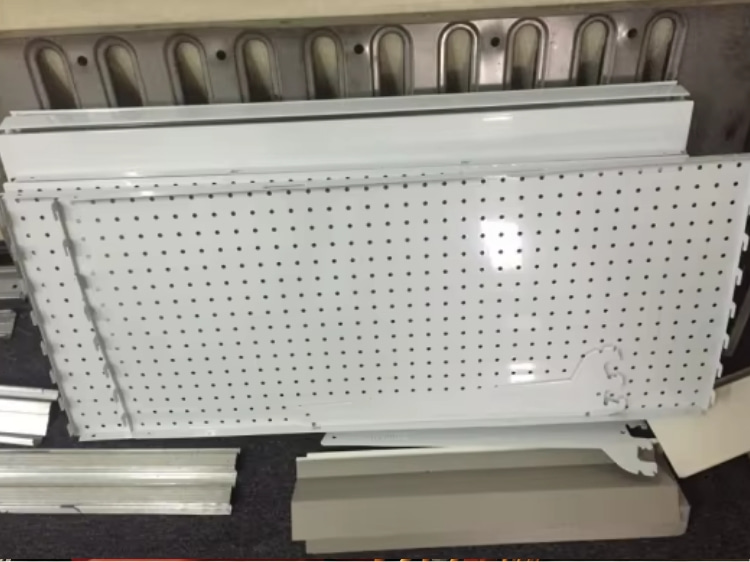

Flat shelving panel production for warehouse storage racks
Color-coated panel manufacturing for supermarket and hypermarket shelves
Corrosion-resistant panels for cold-chain and food logistics racks
Lightweight yet sturdy panels for convenience store and pharmacy shelves
