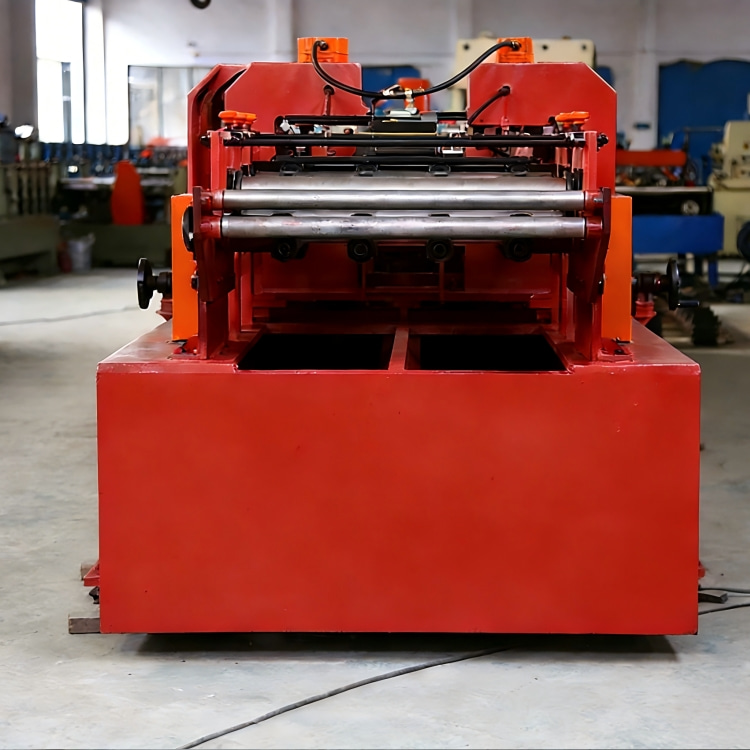

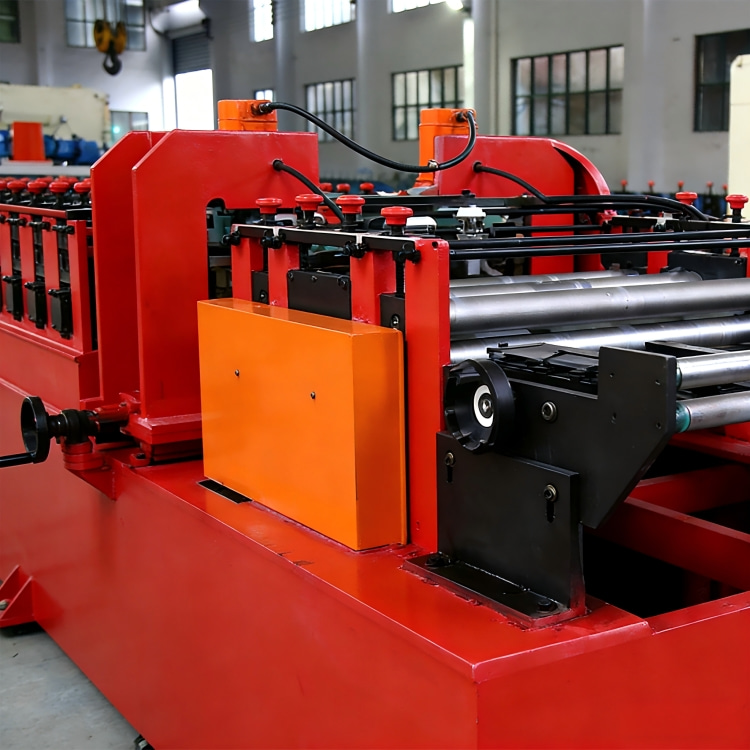

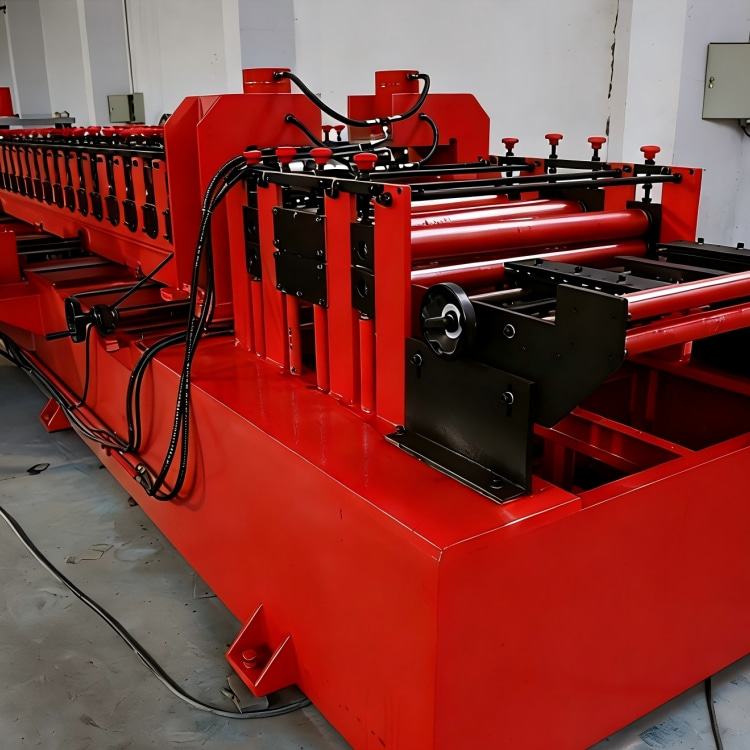

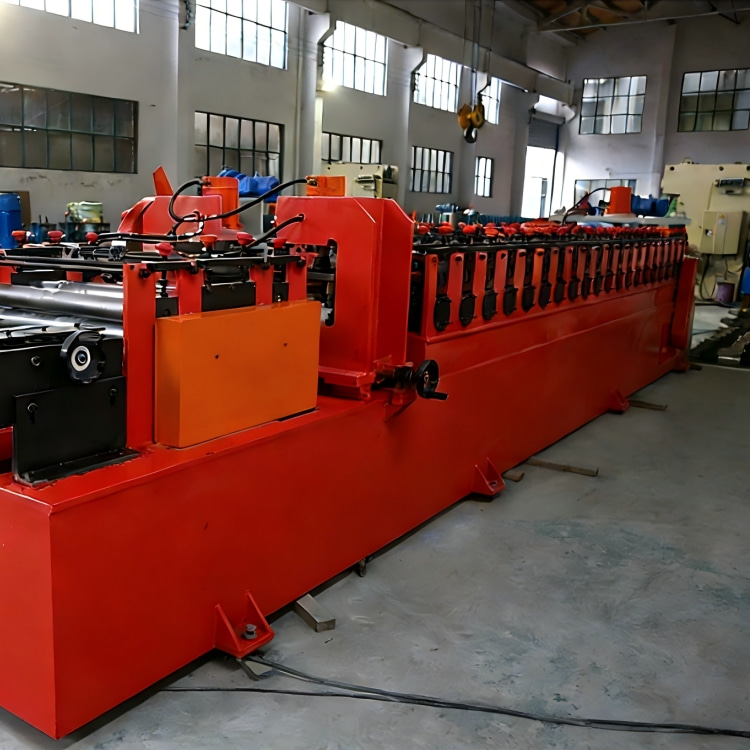

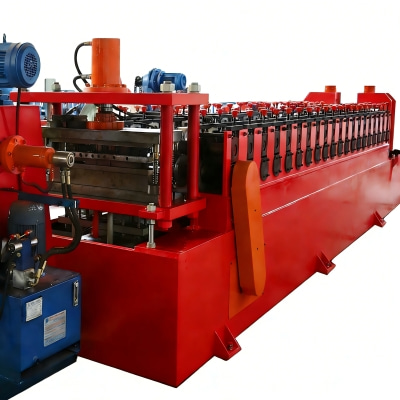

Customized Metal Shelf Panel Forming Machine

Customized Metal Shelf Panel Forming Machine

Product Attributes :

Contact Person： XN Duan

Mobile Phone：18832797029

WhatsApp:+86 18832797029

E-mail:yuankuoduan@gmail.com

Add：Zhenggang Road, Industrial Development Zone, Botou City, Hebei Province

Product Description

Product Overview

This machine balances customization and efficiency, designed for cost-effective mass customized shelf panel production. It features user-friendly operation and low maintenance, reducing costs for manufacturers with diversified customization needs.

Core Technical Specifications

Raw material: Cold-rolled steel, Galvanized steel (optional stainless / color-coated steel)
Material thickness: 1.5 – 3.0 mm
Roller material:GCr15 (or optional Cr12) alloy steel, heat treated (quenched / hardened)
Roller hardness: HRC 58 – 62° (depending on heat treatment)
Number of forming stations: 16 – 28 stations (profile dependent)
Forming (line) speed: 5 – 15 m/min (depending on profile & configuration)
Main motor power: 15 – 22 kW (depending on model)
Cutting / Shearing system: Hydraulic cutting (or saw-cut); cutting blades made of heat-treated Cr12 / Cr12MoV
Control system: PLC control (Siemens / Panasonic / Delta optional) — supports automatic forming, punching, cutting, length & quantity control
Decoiler: Manual or hydraulic decoiler (capacity configurable, e.g. 3t–5t)
Material width: As per customer’s profile drawing / specification
Power supply / Voltage: 380 V, 50 Hz, three-phase (customizable per customer requirement)

Parameter	Specification
Raw material	Cold-rolled steel,Galvanized steel (optional stainless / color-coated steel)
Material thickness	1.5 – 3.0 mm
Roller material	GCr15 (or optional Cr12) alloy steel,heat treated (quenched / hardened)
Roller hardness	HRC 58 – 62° (depending on heat treatment)
Number of forming stations	16 – 28 stations (profile dependent)
Forming (line) speed	5 – 15 m/min (depending on profile & configuration)
Main motor power	15 – 22 kW (depending on model)
Cutting / Shearing system	Hydraulic cutting (or saw-cut);cutting blades made of heat-treated Cr12 / Cr12MoV
Control system	PLC control (Siemens / Panasonic / Delta optional) — supports automatic forming,punching,cutting,length & quantity control
Decoiler	manual or hydraulic decoiler (capacity configurable,e.g. 3t–5t)
Material width	As per customer’s profile drawing / specification
Profile types	Upright rack columns / shelf upright posts / pallet rack uprights / warehouse shelving uprights
Power supply / Voltage	380 V,50 Hz,three-phase (customizable per customer requirement)

Key Product Advantages

1. Efficient Customized Production: 5-15 m/min forming speed, meeting mass customized production delivery requirements.

2. Easy Operation & Switching: Intuitive PLC interface enables quick parameter adjustment for different customized specifications.

3. Low Maintenance Cost: Scientific structure design, easy component access, reducing downtime for customized production switching.

Quality & Safety Assurance

Strict pre-delivery inspection and safety protection system, ensuring stable performance in diversified customized production.

Global Service Support

Provide global logistics, on-site installation by professional engineers, 24/7 online technical assistance and lifelong maintenance guidance.

Typical Applications

Widely applied in mass customized panel production for supermarket chain shelves, daily necessities storage racks and industrial warehouse shelving.
