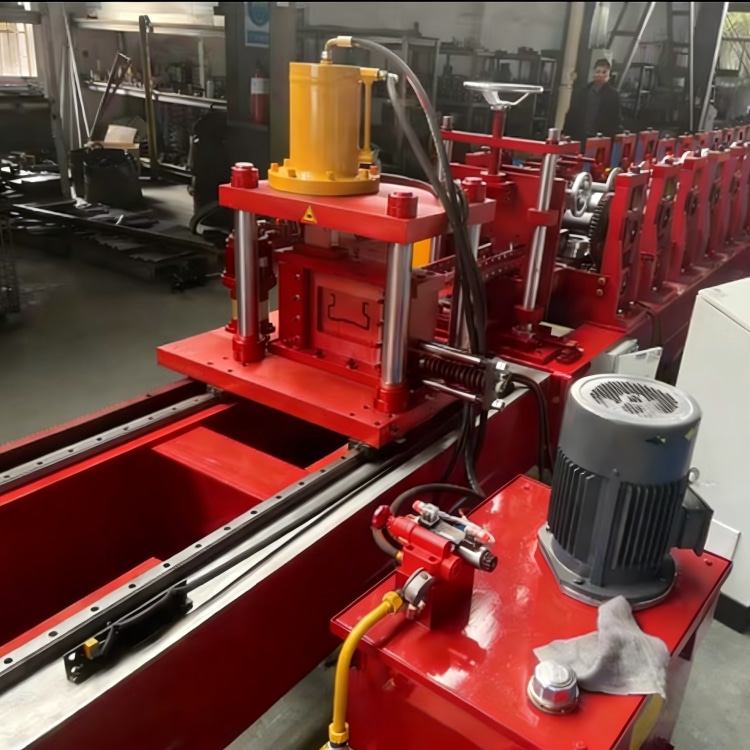

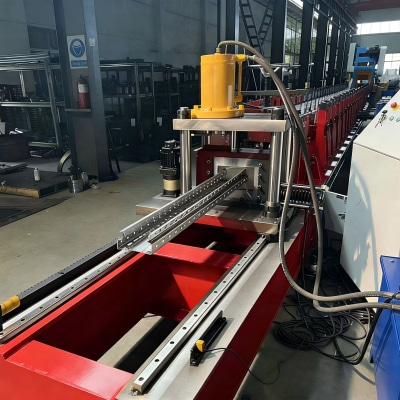

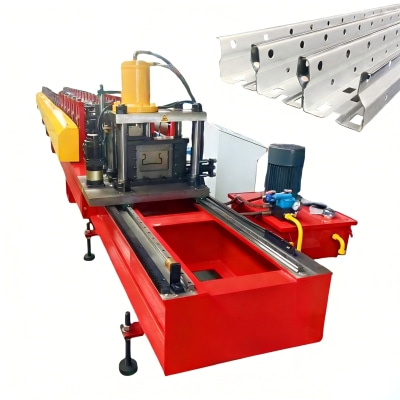

Product Overview
The Punch Mould For Rack Upright is an intelligent and efficient matching component for rack upright roll forming lines. It integrates with the main machine's PLC control system to realize automatic precise positioning and punching. The mould is easy to install and maintain, with good interchangeability, which can effectively reduce the downtime of the production line and improve overall production efficiency. It is an ideal choice for rack manufacturers pursuing intelligent and lean production.
Core Technical Specifications
-
Applicable raw material: Cold-rolled steel, Galvanized steel (optional stainless / color-coated steel)
-
Applicable material thickness: 1.5 – 3.0 mm
-
Mould material:GCr15 (or optional Cr12) alloy steel, heat treated (quenched / hardened)
-
Mould hardness: HRC 58 – 62° (depending on heat treatment)
-
Matching main motor power: Adaptable to 15 – 22 kW main machine (depending on model)
-
Adaptable forming speed: 5 – 15 m/min (depending on profile & configuration)
-
Matching control system: PLC control (Siemens / Panasonic / Delta optional) — supports automatic positioning & quantity control
-
Applicable profile types: Upright rack columns / shelf upright posts / pallet rack uprights / warehouse shelving uprights
-
Installation type: Quick-detachable structure (easy to replace and maintain)
-
Matching power supply: Adaptable to 380 V, 50 Hz, three-phase (customizable per main machine requirement)
Key Product Advantages
1. Intelligent Automatic Operation: Seamlessly integrates with the main machine's PLC system, realizing automatic precise positioning, punching, and quantity control, reducing human errors and improving production accuracy.
2. Easy Installation & Maintenance: Quick-detachable structural design allows easy mould replacement and maintenance, reducing production line downtime and improving equipment utilization rate.
3. Good Interchangeability: Standardized interface design ensures the mould can be matched with different models of rack upright roll forming machines, enhancing the flexibility of production line configuration.
Quality & Safety Assurance
All moulds undergo strict precision testing and fatigue resistance testing before leaving the factory, complying with international industrial safety and quality standards. The intelligent safety interlock design avoids misoperation during mould replacement, ensuring operator safety.
Global Service Support
We provide pre-sales main machine matching consultation, customized mould design, on-site installation and debugging guidance, intelligent operation training, 24/7 online technical support, and lifelong maintenance guidance, solving all worries for customers in the use process.
Typical Applications
Widely applied in the intelligent production lines of shelf uprights for industrial warehouses, large logistics distribution centers, commercial supermarkets, and cold-chain storage facilities, adapting to the needs of lean and automatic production.
