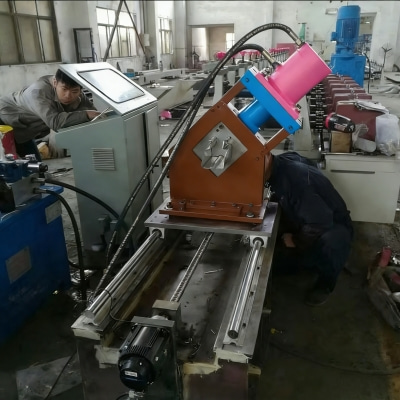

Rack Bracing Roll Forming Machine
The Rack Bracing Roll Forming Machine is a professional automated production equipment tailored for manufacturing high-precision rack bracing components. As a key supporting equipment for storage rack systems, it integrates advanced forming technology, stable transmission performance and intelligent control systems, ensuring efficient and consistent production of high-quality rack bracings. It has been widely recognized by rack manufacturers worldwide for its reliable performance and strong adaptability.
Core Technical Specifications
-
Model number: Rack Roll Forming Machine
-
Material Thickness: 1.5-3.0mm, suitable for mainstream rack bracing raw materials
-
Product speed: 0-12meter / per minute, adjustable speed to meet different production needs
-

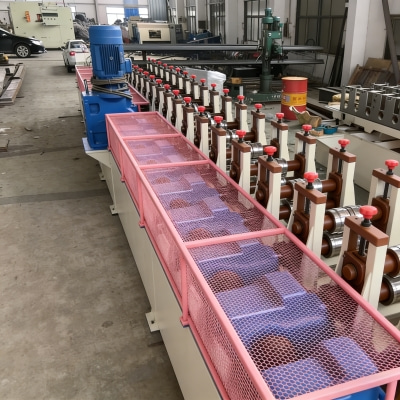

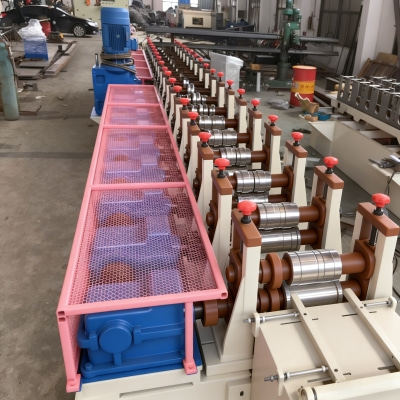

Roller Stations: About 18 stations, ensuring uniform and precise forming of rack bracings
-
Roller Material: Gcr15 Steel with quenching, featuring excellent wear resistance and deformation resistance
-
Shaft Material: 45# Advanced Steel (Diameter: 76mm), thermal refining, providing strong load-bearing capacity and stable transmission
-

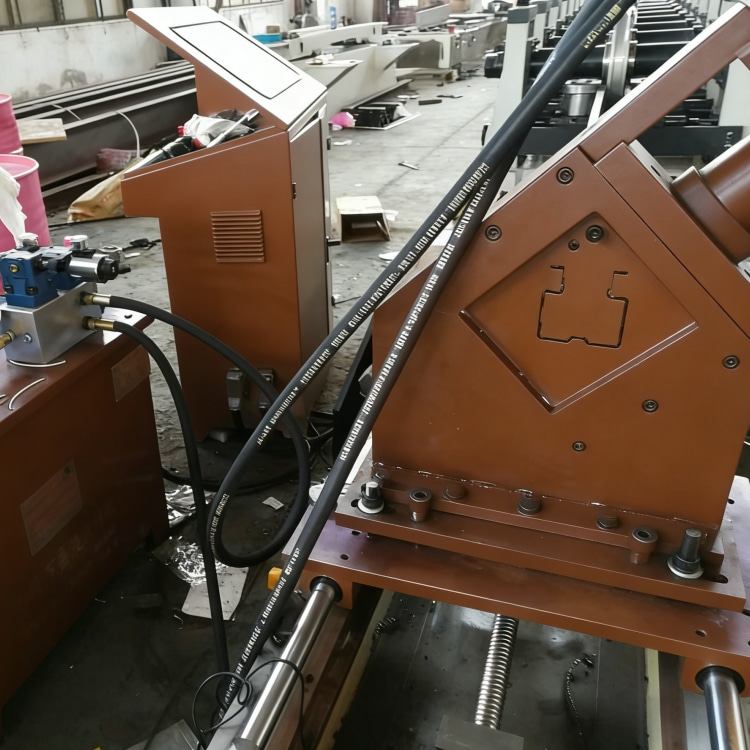

Material Of Cutting: CR12Mov with quench treatment, ensuring sharp cutting and smooth finished edges
-
Electronic control: PLC control with touch screen, enabling intuitive operation and real-time production monitoring
-
Weight: About 10 tons, ensuring stable operation during high-speed production
Key Product Advantages
1. High Precision Forming: Equipped with about 18 roller stations and quenched Gcr15 steel rollers, the machine ensures the dimensional accuracy and structural stability of rack bracings, meeting strict assembly requirements of storage rack systems.
2. Flexible Speed Regulation: With a product speed of 0-12meter per minute, the machine can be adjusted according to production needs, balancing production efficiency and product quality.
3. Stable & Durable Performance: Core components such as 45# advanced steel shafts and CR12Mov quenched cutting parts ensure long-term stable operation, reducing maintenance frequency and costs.
4. Intelligent & User-Friendly Operation: PLC control with touch screen simplifies the operation process, allowing operators to complete parameter setting and production monitoring easily, reducing training costs.
Safety & Quality Assurance
The machine is equipped with a comprehensive safety protection system, including emergency stop devices and real-time fault monitoring functions, effectively ensuring operator safety. All core components undergo strict quality inspection and quenching treatment, guaranteeing the overall reliability and service life of the equipment. The intelligent control system can automatically alarm and shut down when abnormalities occur, avoiding product defects and production accidents.
Global One-Stop Service
Pre-sales Consulting
Provide multilingual technical support (English, German, Russian, Spanish, Arabic), on-site factory layout planning, and customized production solutions according to customers' specific product requirements and production scales.
Sales Support
Offer professional packaging to avoid transportation damage, provide complete industrial equipment customs clearance documents, and arrange professional engineers for on-site installation, commissioning and debugging. Conduct systematic training on equipment operation, maintenance and quality control for customer teams.
After-sales Service
Provide 24/7 online technical assistance, with on-site maintenance support within 48 hours in key regions. Offer a long-term warranty for core components, lifelong maintenance guidance and free software upgrade services to ensure continuous and stable operation of the equipment.
Certifications
CE | ISO9001:2015 | SGS | TUV Rheinland
Typical Applications
-
Production of rack bracing components for industrial storage racks
-
Manufacturing of bracings for logistics center pallet racking systems
-
Customized production of rack bracings for commercial and retail storage shelves
-
Production of bracings for cold-chain storage racks and chemical storage racks
