Product Overview
This machine is an economic and practical option for shelf panel production, featuring simple operation, low energy consumption and stable performance. It balances efficiency and cost, ideal for small and medium-sized shelf manufacturing enterprises.
Core Technical Specifications
Thickness: 0.6mm (as customer's request); Roller station: 16-18 rows (As your requirement)

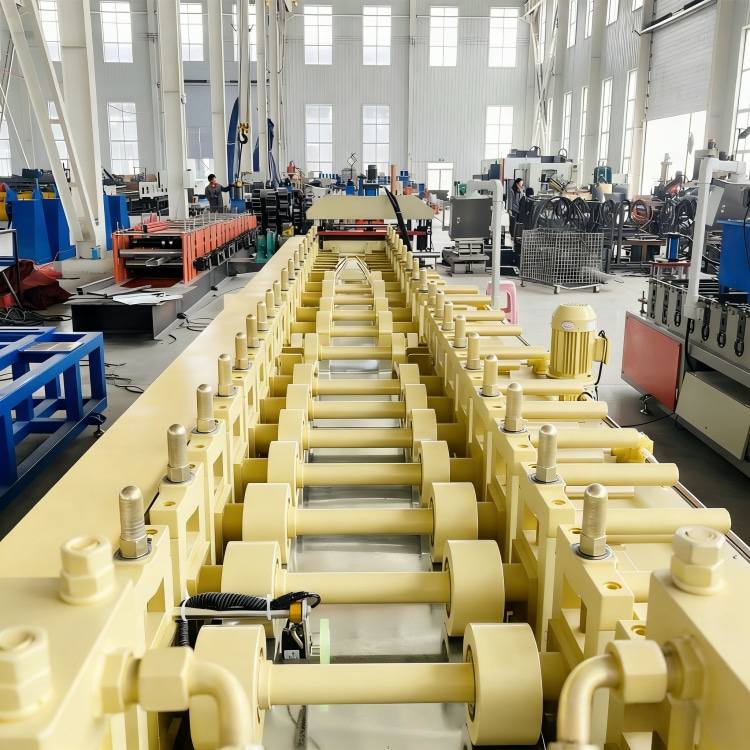

Diameter of shaft: 70mm solid shaft; Material of rollers: 45# steel, hard chrome plated on the surface
Machine body frame: Metal steel welded; Cutter: Gr12mov material, no scratches, no deformation
Motor Power: 5.5kw; Hydraulic system power: 5.5kw
Voltage: 380V 50Hz 3Phase (As your requirement); Control system: PLC
Forming Speed: 8-20m/min (customized)
|
Thickness
|
0.6mm(as customer's request)
|
|
Roller station
|
16-18 rows(As your requirement)
|
|
Diameter of shaft
|
70mm solid shaft
|
|
Material of rollers
|
45# steel,hard chrome plated on the surface
|
|
Machine body frame
|
Metal steel welded
|
|
Cutter
|
Gr12mov material,no scratches,no deformation
|
|
Motor Power
|
5.5kw
|
|

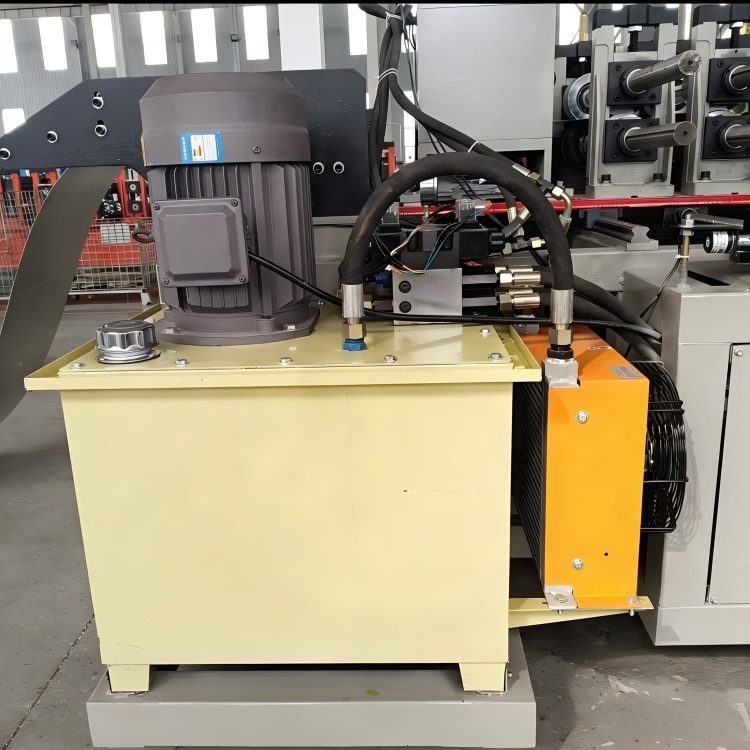

Hydraulic system power
|
5.5kw
|
|
Voltage
|
380V 50Hz 3Phase(As your requirement)
|
|
Control system
|
PLC
|
|
Forming Speed
|
8-20m/min(customized)
|
Key Product Advantages
1. Cost-Effective Operation: 5.5kw motor and hydraulic system balance power and energy consumption, reducing operational costs for enterprises.

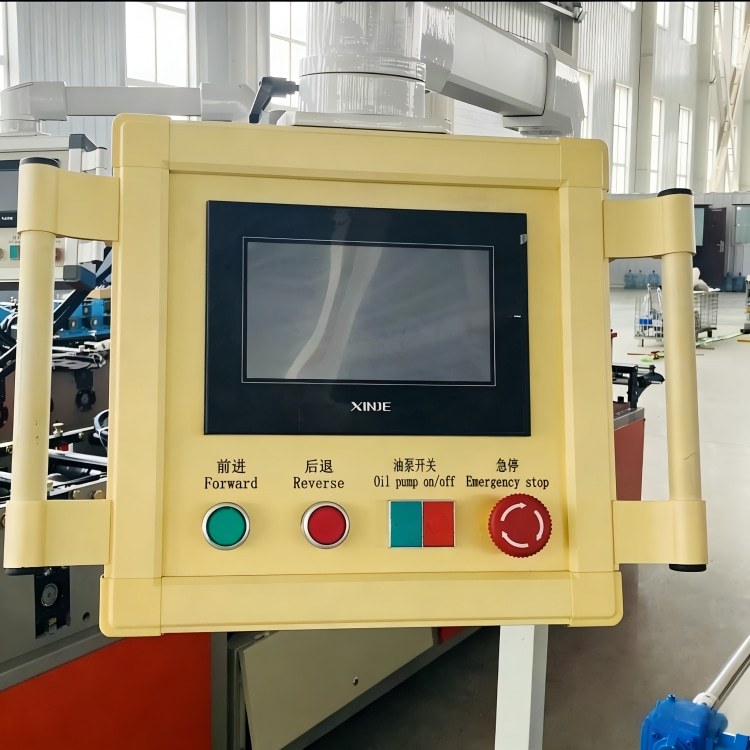

2. Easy to Operate: Intuitive PLC control system and simple structure allow operators to master skills quickly, reducing training costs and improving work efficiency.
3. Reliable Performance: Metal steel welded frame and 70mm solid shaft ensure stable operation, minimizing downtime and maintaining continuous production.
Quality & Safety Assurance
Strict pre-delivery inspection ensures all components meet quality standards, with scratch-free Gr12mov cutter and wear-resistant rollers guaranteeing consistent product quality.
Global Service Support
Provide global logistics, on-site installation by professional engineers, 24/7 online technical assistance and affordable accessory supply, reducing customer operational risks.
Typical Applications
Widely applied in mass production of shelf panels for commercial chain stores, daily necessities storage racks, small warehouses and retail store shelving.
