Shelf Panel Roll Forming Machine

Product Attributes :

Contact Person： XN Duan

Mobile Phone：18832797029

WhatsApp:+86 18832797029

E-mail:yuankuoduan@gmail.com

Add：Zhenggang Road, Industrial Development Zone, Botou City, Hebei Province

Product Description

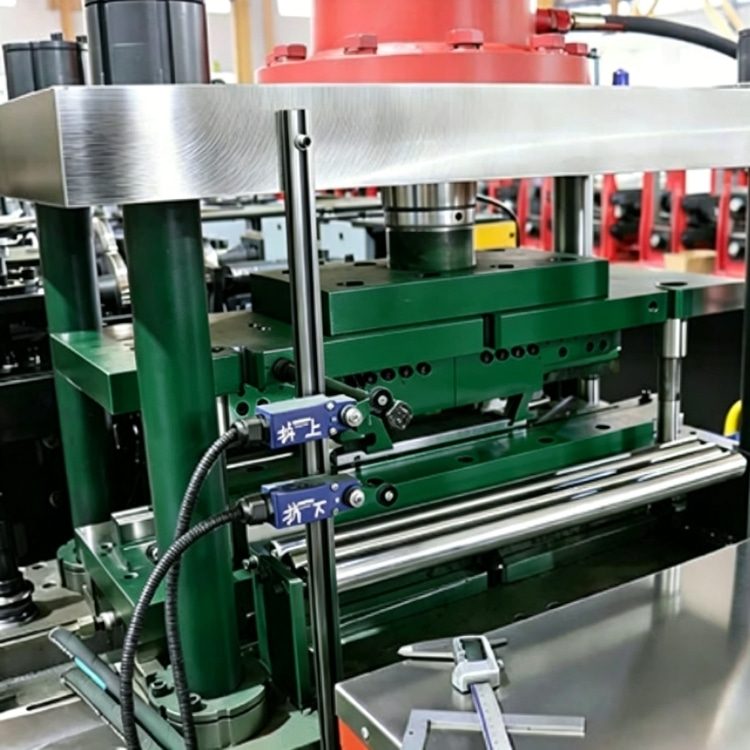

When it comes to shelf panels, dimensional accuracy is critical for seamless assembly and structural integrity. The Shelf Panel Roll Forming Machine is engineered to deliver precise, consistent results, with a tolerance of ±1 mm across all production runs. Its integrated automatic feeding, punching, and cutting units work in harmony to ensure every panel meets exact specifications.

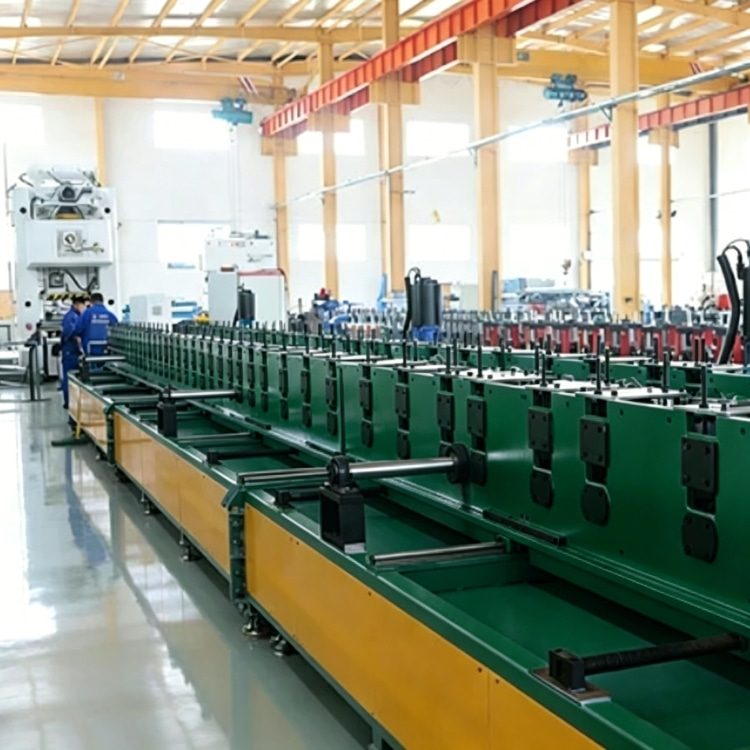

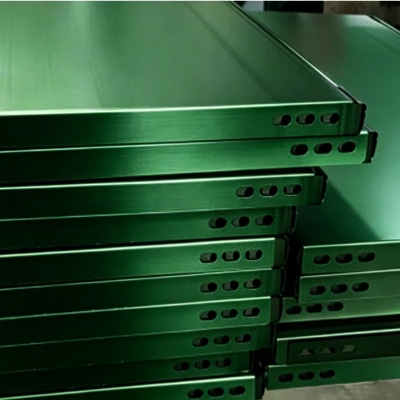

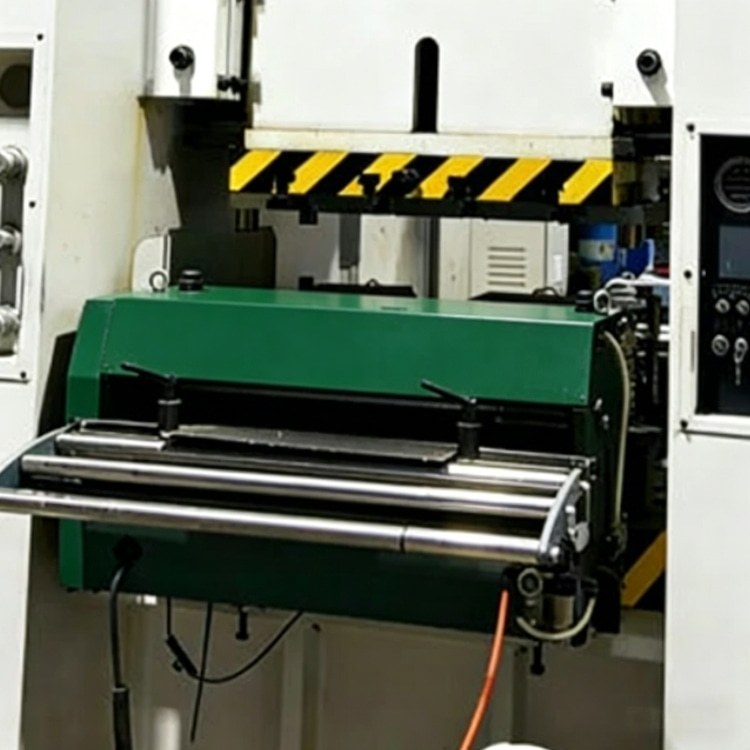

Shelf Panel Roll Forming Machine is professional industrial equipment for producing metal shelf panels. Adopting multi-station roller forming and PLC automatic control system, it features stable operation, high precision and high production speed. Suitable for manufacturing various metal shelf boards used in warehouse storage, supermarket shelves and logistics rack systems.

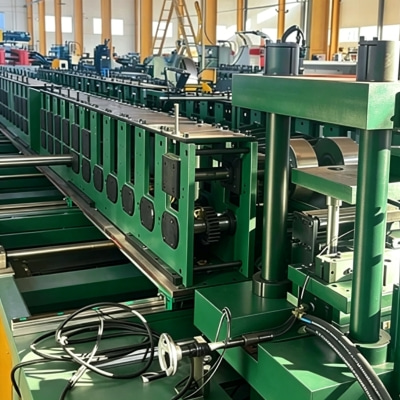

The forming section features 10–18 stations with hardened rollers, each calibrated to maintain precise bend angles and panel dimensions. The PLC control system adjusts feed speed and forming pressure in real time, compensating for material variations and ensuring uniform quality. The machine processes cold rolled and galvanized steel with thicknesses of 0.8–1.50 mm and widths from 250–1000 mm, delivering consistent results for both light and heavy-duty applications.

Parameter	Specification
Machine Type	Shelf Panel Roll Forming Machine
Material Thickness	0.8 – 1.50 mm
Material Width	250– 1000 mm
Forming Stations	10 – 18 stations
Max Forming Speed	12 – 20 m/min
Decoiler	Manual / Hydraulic / Motorized
Cutting Method	Flying Cut / Hydraulic Shear
Drive System	Electric / PLC Control
Power	15 – 30 kW
Machine Dimensions (L×W×H)	8–12 m x 1.5 m x 1.8 m
Machine Weight	6 – 12 tons
Tolerance	±1 mm
Suitable Material	Cold Rolled Steel / Galvanized Steel
Optional Features	Automatic Punching,Stacking,Labeling

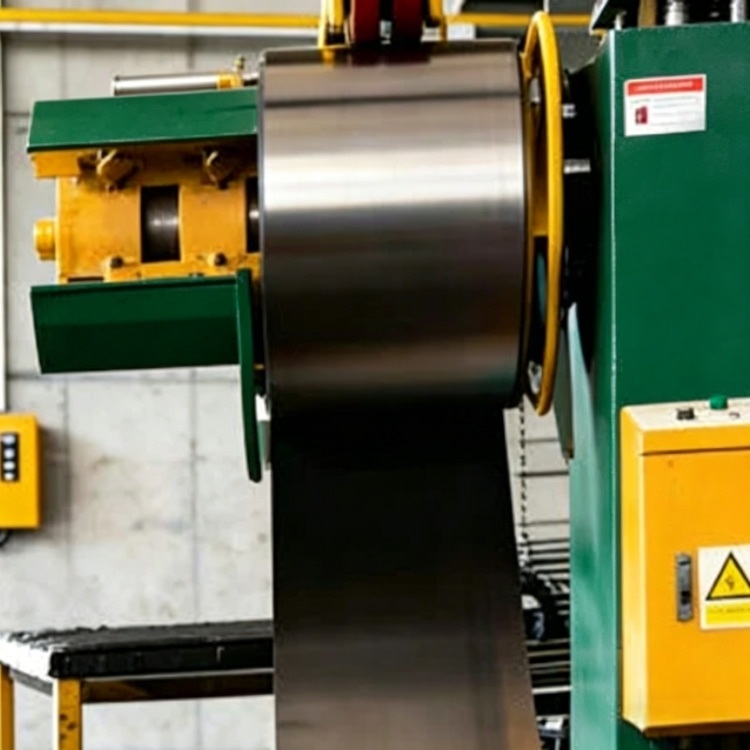

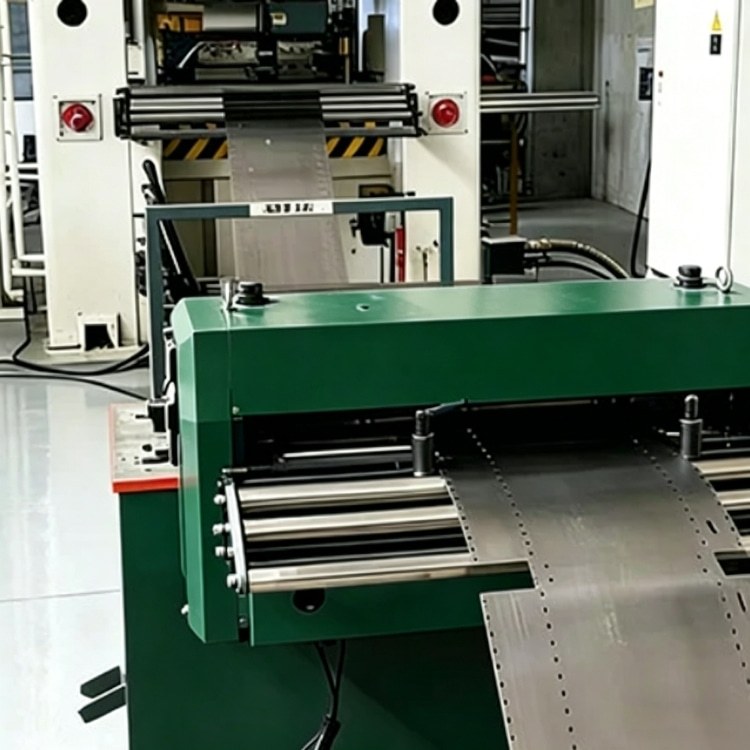

Cutting options include flying cut (for continuous high-speed production) and hydraulic shear (for precision cuts), both maintaining tight tolerances. The decoller’s motorized feeding system ensures even material advance, eliminating skewing and ensuring straight panels. With its focus on precision, this machine is ideal for manufacturers producing panels for global clients, where compliance with strict industry standards is essential.
