Shelf Panel Roll Forming Machine

Product Attributes :

Contact Person： XN Duan

Mobile Phone：18832797029

WhatsApp:+86 18832797029

E-mail:yuankuoduan@gmail.com

Add：Zhenggang Road, Industrial Development Zone, Botou City, Hebei Province

Product Description

Designed to withstand the rigors of 24/7 industrial production, the Shelf Panel Roll Forming Machine is constructed with heavy-duty materials and components built to last. Its steel frame, weighing 6–12 tons and measuring 8–12 m × 1.5 m × 1.8 m, provides exceptional stability, absorbing vibrations and preventing deformation during high-speed forming.

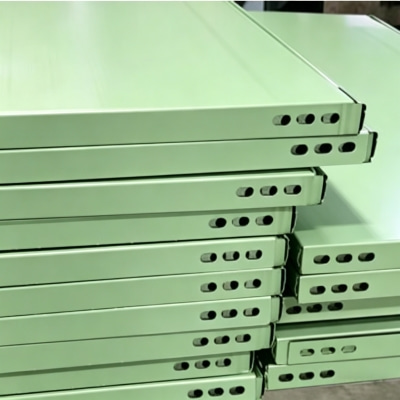

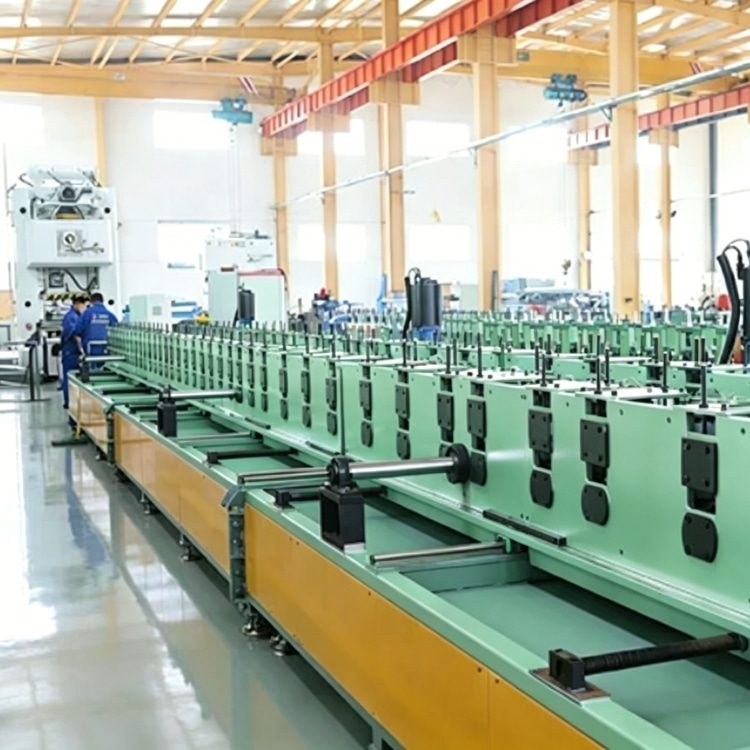

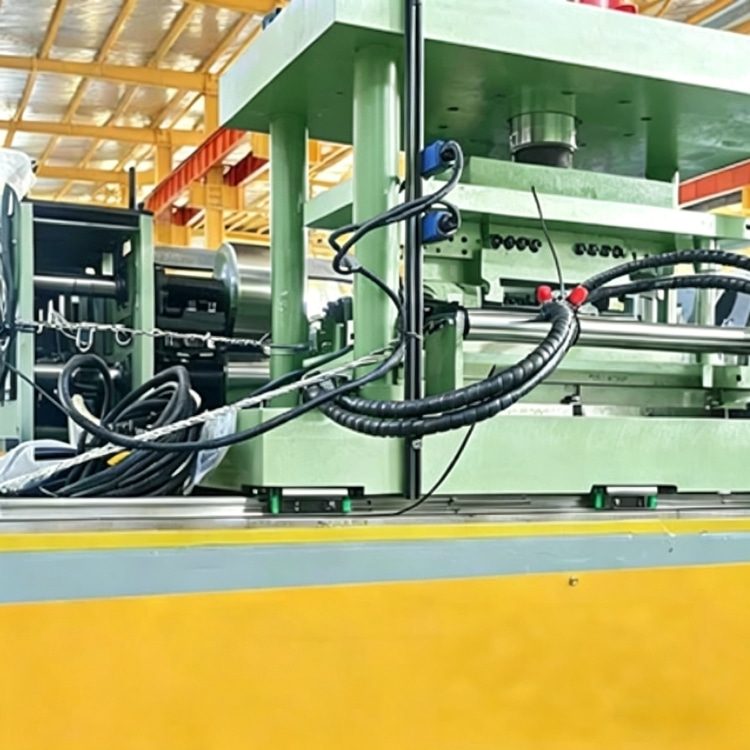

Shelf Panel Roll Forming Machine is professional industrial equipment for producing metal shelf panels. Adopting multi-station roller forming and PLC automatic control system, it features stable operation, high precision and high production speed. Suitable for manufacturing various metal shelf boards used in warehouse storage, supermarket shelves and logistics rack systems.

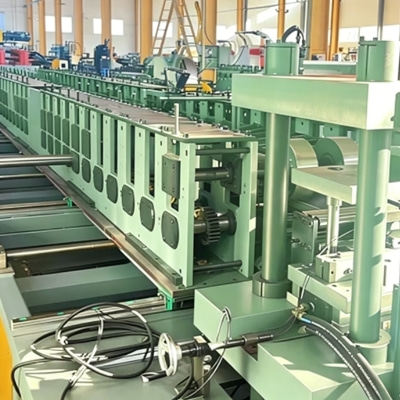

Key components, including forming rollers, shafts, and gears, are made from high-strength alloy steel and heat-treated for wear resistance. The 10–18 forming stations feature precision-machined rollers calibrated to maintain consistent panel geometry over years of use. The PLC-controlled electric drive system ensures smooth, reliable operation, with minimal downtime due to mechanical failure.

Parameter	Specification
Machine Type	Shelf Panel Roll Forming Machine
Material Thickness	0.8 – 1.50 mm
Material Width	250– 1000 mm
Forming Stations	10 – 18 stations
Max Forming Speed	12 – 20 m/min

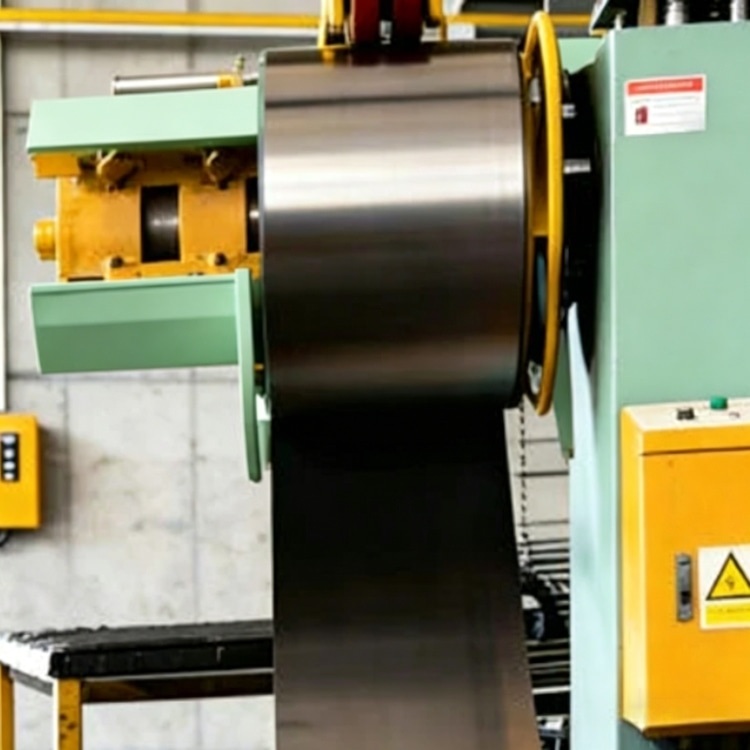

Decoiler	Manual / Hydraulic / Motorized
Cutting Method	Flying Cut / Hydraulic Shear
Drive System	Electric / PLC Control
Power	15 – 30 kW
Machine Dimensions (L×W×H)	8–12 m x 1.5 m x 1.8 m
Machine Weight	6 – 12 tons
Tolerance	±1 mm
Suitable Material	Cold Rolled Steel / Galvanized Steel

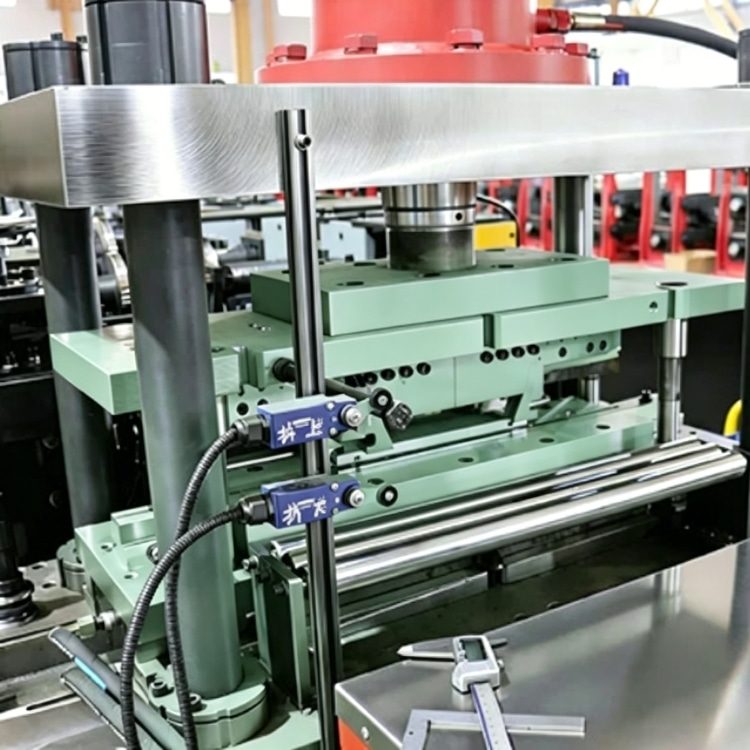

Optional Features	Automatic Punching,Stacking,Labeling

The machine processes cold rolled and galvanized steel with thicknesses of 0.8–1.50 mm and widths from 250–1000 mm, handling even the most demanding materials without compromise. Cutting methods—flying cut and hydraulic shear—use hardened blades for clean, burr-free cuts with a tolerance of ±1 mm. Optional features like automatic lubrication systems reduce maintenance needs, while the modular design allows easy access to components for quick repairs. Built for reliability, this machine minimizes downtime and maximizes return on investment for long-term production runs.
