Product Overview

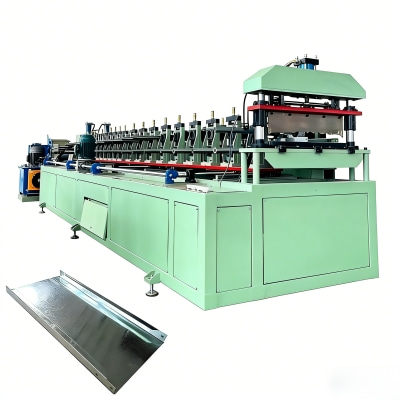

This machine is specialized in high-precision production of shelf panels, integrating automatic forming, cutting and control systems. With efficient output and stable performance, it delivers smooth, scratch-free finished products, perfectly meeting the needs of commercial and industrial shelf manufacturing.
Core Technical Specifications
Thickness: 0.6mm (as customer's request); Roller station: 16-18 rows (As your requirement)

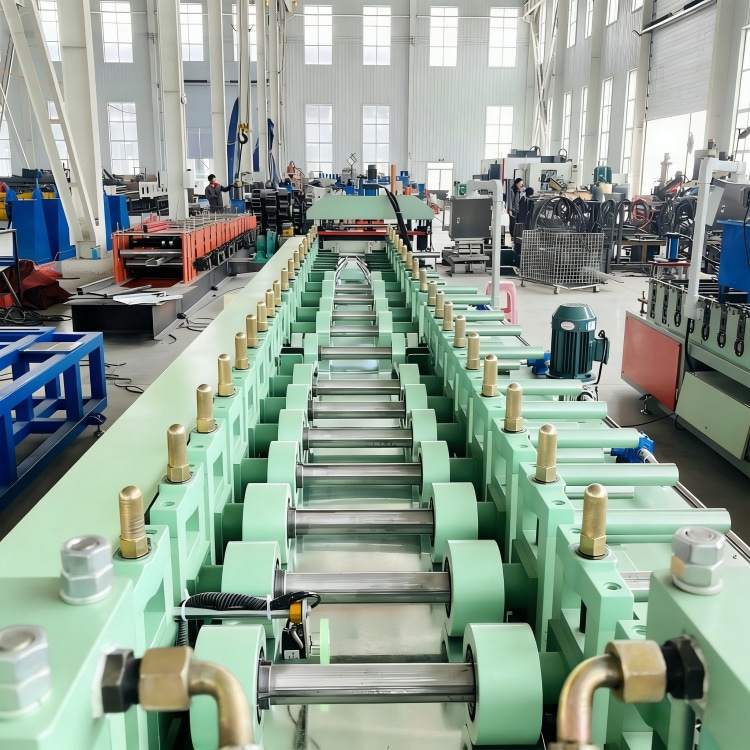

Diameter of shaft: 70mm solid shaft; Material of rollers:45# steel, hard chrome plated on the surface

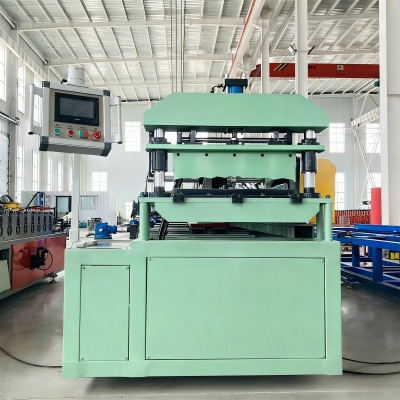

Machine body frame: Metal steel welded; Cutter: Gr12mov material, no scratches, no deformation

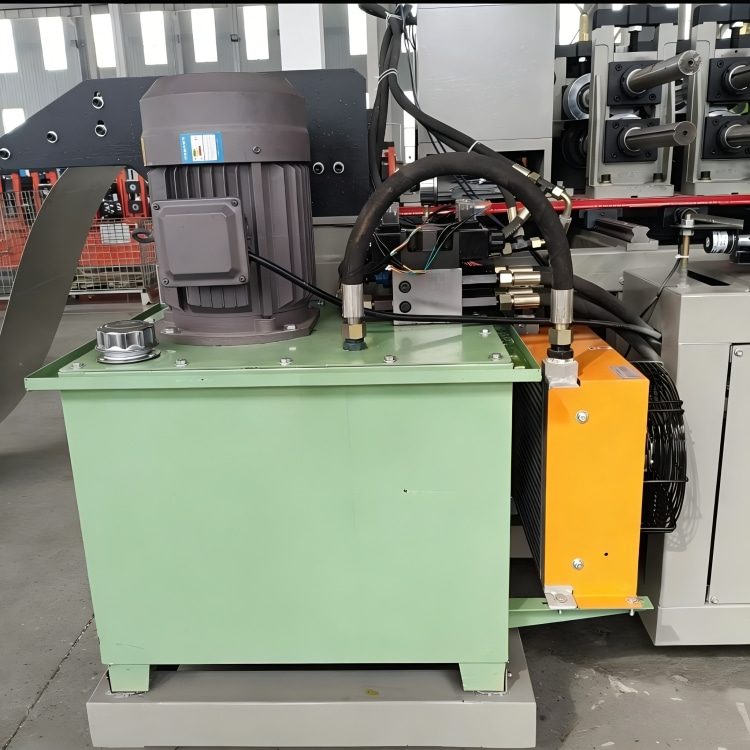

Motor Power: 5.5kw; Hydraulic system power:5.5kw

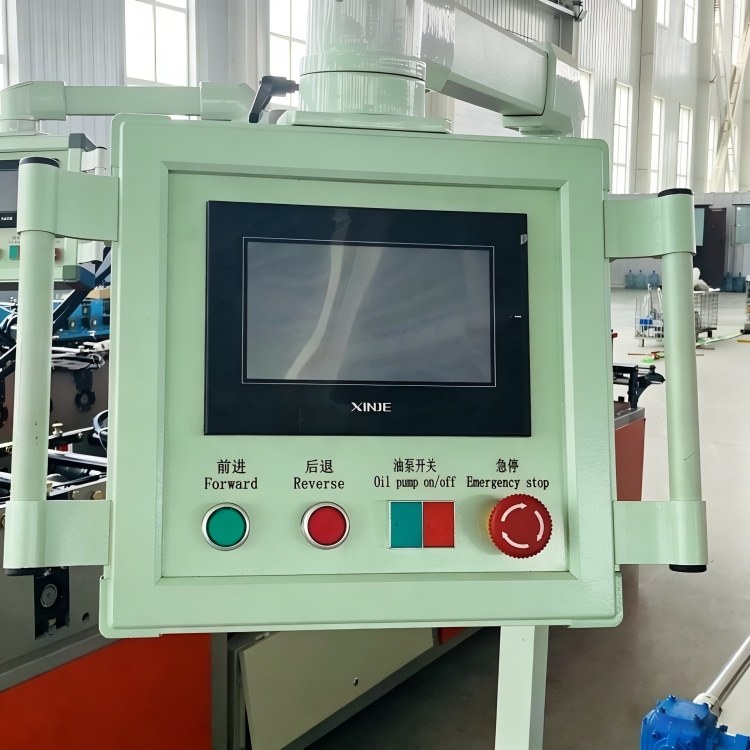

Voltage: 380V 50Hz 3Phase (As your requirement); Control system: PLC
Forming Speed: 8-20m/min (customized)
|
Thickness
|
0.6mm(as customer's request)
|
|
Roller station
|
16-18 rows(As your requirement)
|
|
Diameter of shaft
|
70mm solid shaft
|
|
Material of rollers
|
45# steel,hard chrome plated on the surface
|
|
Machine body frame
|
Metal steel welded
|
|
Cutter
|
Gr12mov material,no scratches,no deformation
|
|
Motor Power
|
5.5kw
|
|
Hydraulic system power
|
5.5kw
|
|
Voltage
|
380V 50Hz 3Phase(As your requirement)
|
|
Control system
|
PLC
|
|
Forming Speed
|
8-20m/min(customized)
|
Key Product Advantages
1. High Precision & Quality: 45# steel rollers with hard chrome plating and Gr12mov cutter ensure scratch-free, deformation-free shelf panels, meeting high aesthetic and quality standards.
2. Efficient Production: 8-20m/min customizable forming speed and 16-18 roller stations enable fast, continuous production, improving manufacturing efficiency.
3. Stable Operation: Metal steel welded frame and 70mm solid shaft provide strong support, ensuring stable performance during long-term operation.
Quality & Safety Assurance
All components undergo strict quality inspection, from the wear-resistant Gr12mov cutter to the stable PLC control system, ensuring reliable operation and consistent product quality.
Global Service Support
Provide multilingual consultation, on-site installation & commissioning, operator training and 24/7 after-sales support, ensuring worry-free use for customers worldwide.
Typical Applications
Widely used in producing shelf panels for commercial supermarkets, industrial warehouses, logistics centers, convenience stores and various storage shelving systems.
