Product Introduction
Overview

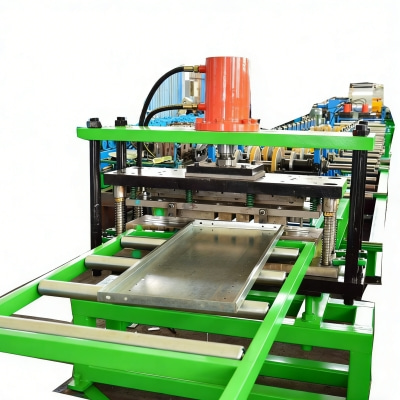

Xinnuo Shelf Panel Roll Forming Machine is a professional cold-forming equipment dedicated to manufacturing high-flatness shelf panels—core load-bearing parts for commercial shelves, warehouse storage racks, retail display racks, and intelligent logistics systems. It integrates high-precision panel forming, fast mold switching, and continuous batch production, providing stable production solutions for shelf manufacturers in 108+ countries, and is widely applied in scenarios such as food storage, electronic product sorting, and household goods display.
The machine is equipped with wear-resistant roller sets made of imported Swedish SS2343 alloy steel. After double quenching and 5-axis precision grinding, the roller surface hardness reaches HRC64, which can stably process 1.0–3.0 mm cold-rolled steel, hot-dip galvanized steel, and color-coated steel. Its modular quick-change system completes mold replacement within 18 minutes, supporting shelf panels with widths from 600mm to 1800mm and lengths from 800mm to 3000mm, fully matching the specifications of mainstream shelves.
Technical Advantages
Superior Flatness Control: Adopting Mitsubishi high-precision servo motors and Siemens S7-1200 PLC control system, the machine maintains the flatness error of shelf panels within 0.3 mm/m and dimensional accuracy within ±0.2 mm, fully complying with ANSI MH16.1 and GB/T 27924-2011 standards, ensuring that the panels can evenly bear goods without warping.
Integrated Efficient Production: The one-stop production process covers automatic uncoiling, dual-sided leveling, multi-pass forming, edge trimming, and servo fixed-length cutting. It eliminates secondary processing procedures such as manual leveling, reducing production time by 55% and material waste rate to less than 1.0%.
High Batch Productivity: A single machine can produce up to 190 pieces of standard shelf panels per day, which is 3 times the output of traditional semi-automatic equipment, effectively meeting the large-order production needs of shelf manufacturers.
Safety & Quality Assurance
The machine is equipped with 5-group infrared safety gratings and dual emergency stop buttons, achieving a shutdown response time of 0.05 seconds to ensure operator safety. A laser flatness detector real-time monitors the surface quality of the formed panels, automatically marking unqualified products with thickness deviations exceeding 0.15 mm, ensuring consistent batch quality.
Material Compatibility
It supports a variety of shelf panel materials, including 1.0–3.0 mm cold-rolled steel, hot-dip galvanized steel (zinc layer thickness ≥ 120g/m²), and polyester color-coated steel (coating thickness 50–80μm). The adaptive roller pressure control system (adjustable within 6–20 MPa) and circulating cooling device effectively protect the material surface and maintain its structural toughness, making the finished panels suitable for dry warehouses, cold storage, and humid logistics environments.
Global Service Support
Pre-sales Service: Provide multilingual technical consultation (English, Russian, Spanish, Arabic), on-site factory layout planning, and customized panel forming solutions according to shelf load requirements.
Sales Support: Offer professional packaging for key components (rollers, servo motors) to avoid transportation damage, undertake industrial equipment customs clearance procedures, and arrange on-site installation, commissioning, and 7-day operation and maintenance training.
After-sales Service: 24/7 online technical support, 36-month warranty for core components (rollers, servo motors, PLC), lifetime maintenance guidance, and free software system upgrades for 5 years.
Certifications
CE | ISO9001:2015 | SGS | TUV | ANSI MH16.1 | DIN EN 15512
Typical Applications
Flat panel production for supermarket and retail store shelves
Load-bearing panels for industrial warehouse storage racks
Corrosion-resistant panels for cold-chain and food storage racks
Colorful decorative panels for household and office storage shelves
