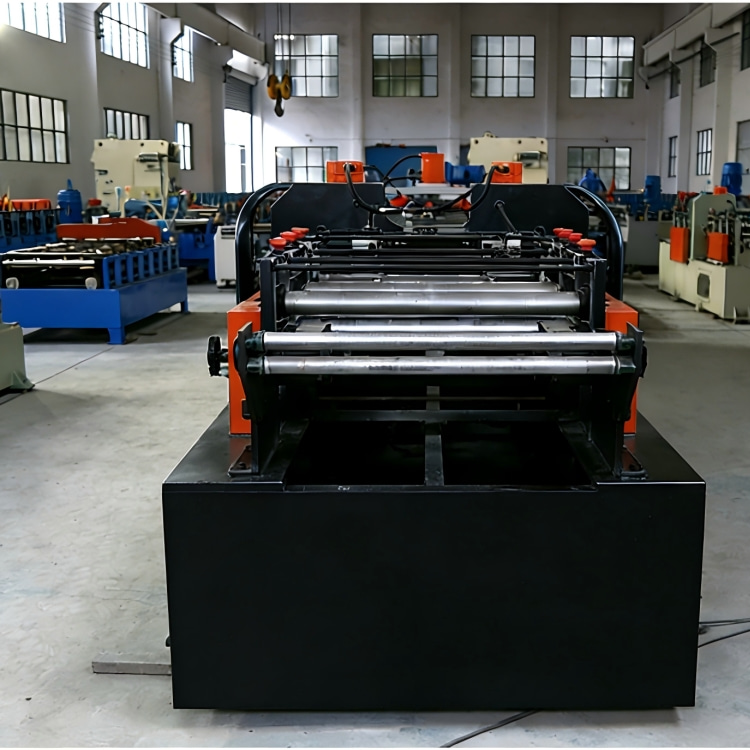

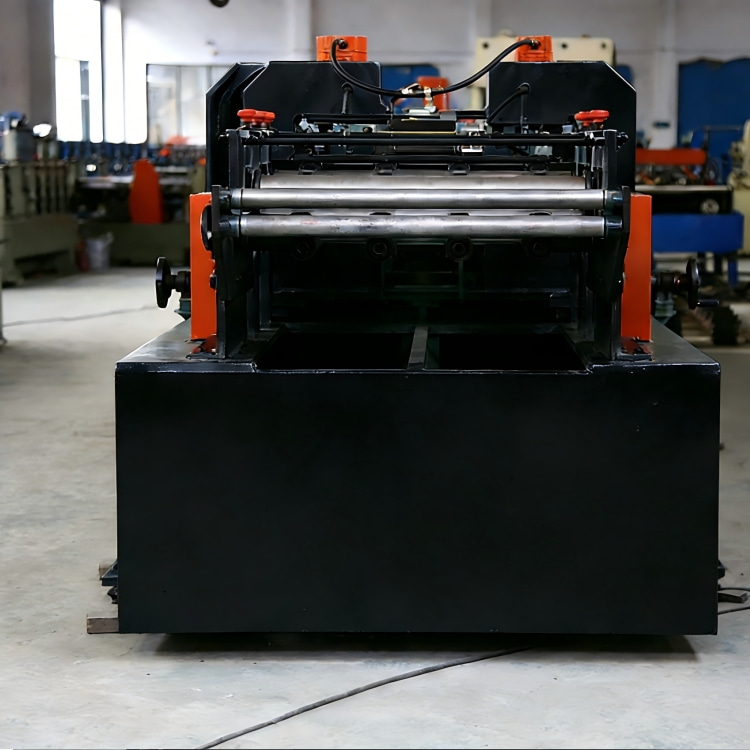

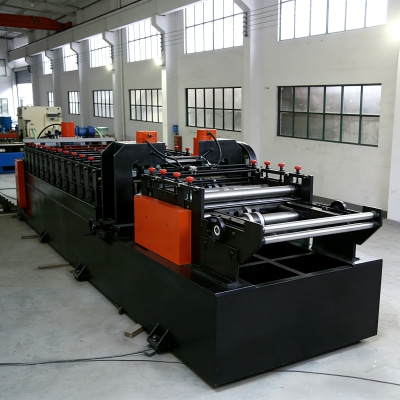

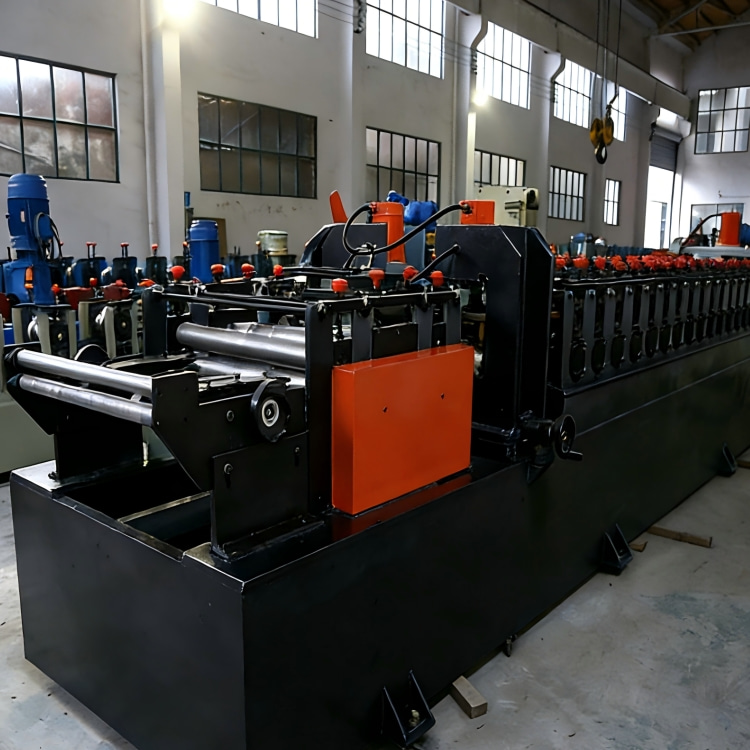

Product Overview
This machine is a precision-focused customized solution for metal shelf panels, tailored to customer profile drawings. It integrates intelligent PLC control and high-hardness rollers, ensuring consistent forming quality for diverse shelf panel specifications in industrial and commercial storage.
Core Technical Specifications
-
Raw material: Cold-rolled steel, Galvanized steel (optional stainless / color-coated steel)
-
Material thickness: 1.5 – 3.0 mm
-
Roller material: GCr15 (or optional Cr12) alloy steel, heat treated (quenched / hardened)
-
Roller hardness: HRC 58 – 62° (depending on heat treatment)
-
Number of forming stations: 16 – 28 stations (profile dependent)
-
Forming (line) speed: 5 – 15 m/min (depending on profile & configuration)
-
Main motor power:15 – 22 kW (depending on model)
-
Cutting / Shearing system: Hydraulic cutting (or saw-cut); cutting blades made of heat-treated Cr12 / Cr12MoV
-
Control system: PLC control (Siemens / Panasonic / Delta optional) — supports automatic forming, punching, cutting, length & quantity control
-
Decoiler: Manual or hydraulic decoiler (capacity configurable, e.g. 3t–5t)
-
Material width: As per customer’s profile drawing / specification
-
Power supply / Voltage: 380 V, 50 Hz, three-phase (customizable per customer requirement)
|
Parameter
|
Specification
|
|
Raw material
|
Cold-rolled steel,Galvanized steel (optional stainless / color-coated steel)
|
|
Material thickness
|
1.5 – 3.0 mm
|
|
Roller material
|
GCr15 (or optional Cr12) alloy steel,heat treated (quenched / hardened)
|
|
Roller hardness
|
HRC 58 – 62° (depending on heat treatment)
|
|
Number of forming stations
|
16 – 28 stations (profile dependent)
|
|
Forming (line) speed
|
5 – 15 m/min (depending on profile & configuration)
|
|
Main motor power
|
15 – 22 kW (depending on model)
|
|
Cutting / Shearing system
|
Hydraulic cutting (or saw-cut);cutting blades made of heat-treated Cr12 / Cr12MoV
|
|
Control system
|
PLC control (Siemens / Panasonic / Delta optional) — supports automatic forming,punching,cutting,length & quantity control
|
|
Decoiler
|
manual or hydraulic decoiler (capacity configurable,e.g. 3t–5t)
|
|
Material width
|
As per customer’s profile drawing / specification
|
|
Profile types
|
Upright rack columns / shelf upright posts / pallet rack uprights / warehouse shelving uprights
|
|
Power supply / Voltage
|
380 V,50 Hz,three-phase (customizable per customer requirement)
|
Key Product Advantages
1. Precision Customization: Fully adapts to customer profile drawings, with 16-28 adjustable stations ensuring dimensional accuracy of customized panels.
2. Intelligent Sync Control: PLC system realizes automatic punching, forming and cutting, matching customized production process requirements.
3. Multi-Material Compatibility: Supports various raw materials, meeting customized anti-rust, aesthetic and load-bearing needs.
Quality & Safety Assurance
Compliant with CE, ISO9001:2015 standards, all components undergo rigorous testing to ensure stability of customized panel production.
Global Service Support
Provide customized solution design, multilingual consultation, on-site installation & commissioning and 24/7 after-sales support.
Typical Applications
Widely used in customized panel production for industrial storage racks, commercial shelves, logistics center racks and special-purpose storage equipment.
