Warehouse Metal Rack Machine

Product Attributes :

Contact Person： XN Duan

Mobile Phone：18832797029

WhatsApp:+86 18832797029

E-mail:yuankuoduan@gmail.com

Add：Zhenggang Road, Industrial Development Zone, Botou City, Hebei Province

Product Description

Product Overview

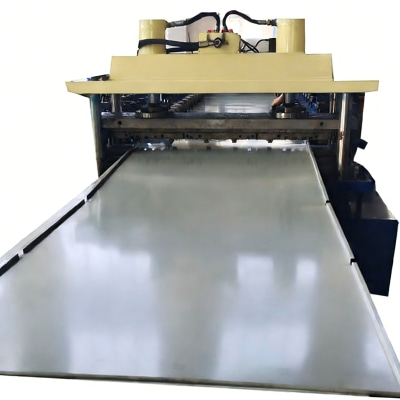

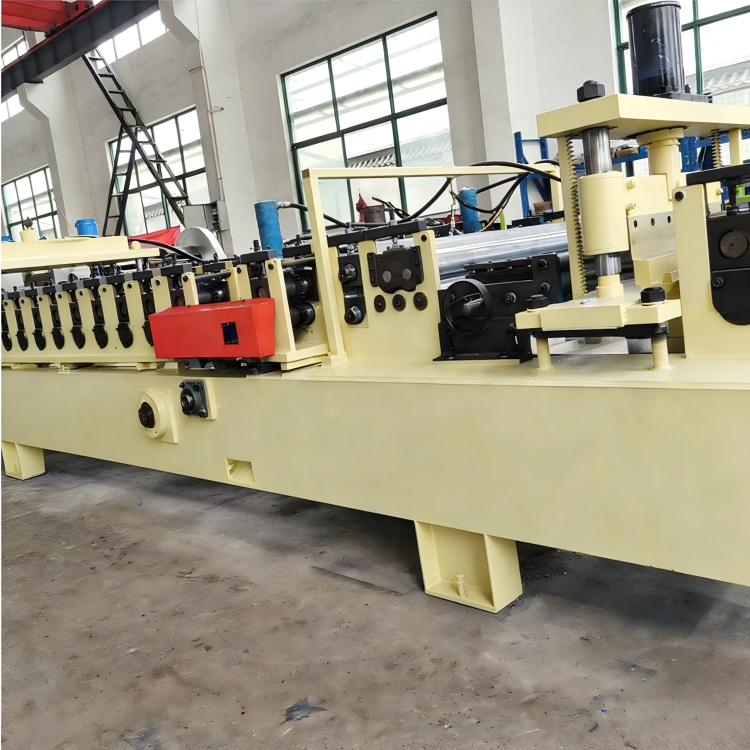

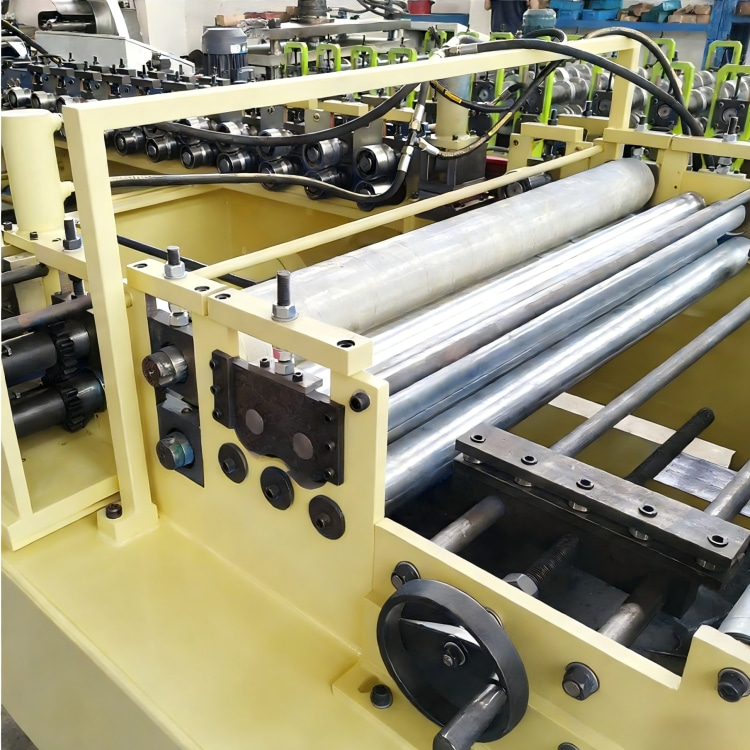

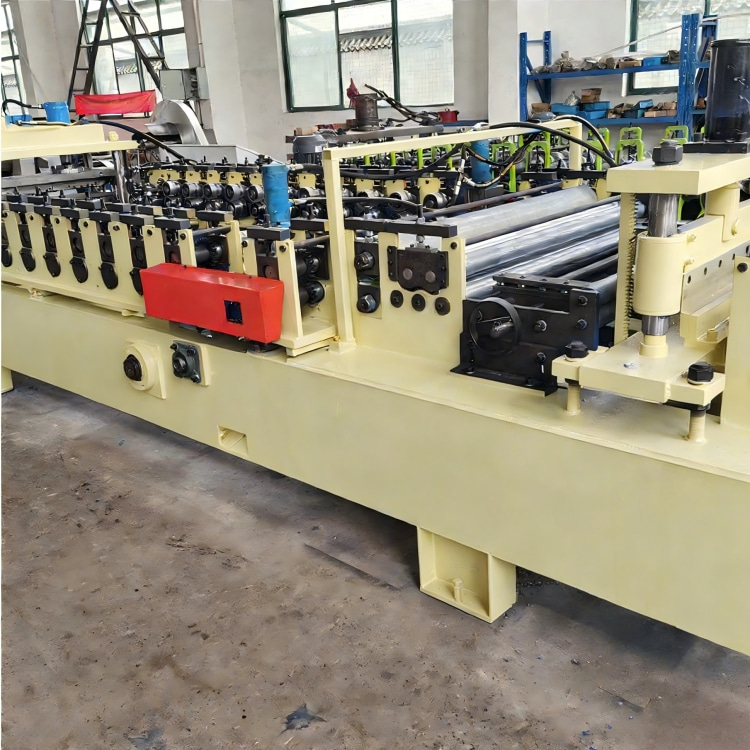

The Warehouse Metal Rack Machine is a green intelligent equipment for eco-friendly rack panel production. It adopts energy-saving motor and closed process design, reducing energy consumption and emissions, paired with intelligent data monitoring for lean production.

Core Technical Specifications

Raw material: Cold-rolled steel, Galvanized steel (optional stainless / color-coated steel)
Material thickness: 1.5 – 3.0 mm
Roller material: GCr15 (or optional Cr12) alloy steel, heat treated (quenched / hardened)
Roller hardness: HRC 58 – 62° (depending on heat treatment)

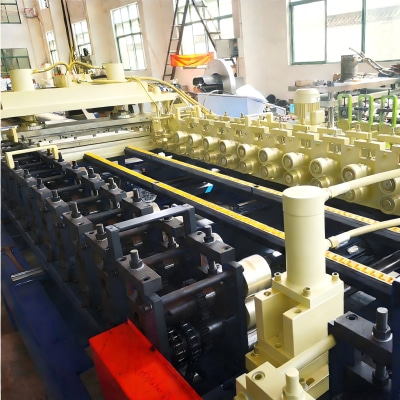

Number of forming stations: 16 – 28 stations (profile dependent)
Forming (line) speed: 5 – 15 m/min (depending on profile & configuration)
Main motor power: 15 – 22 kW (depending on model)

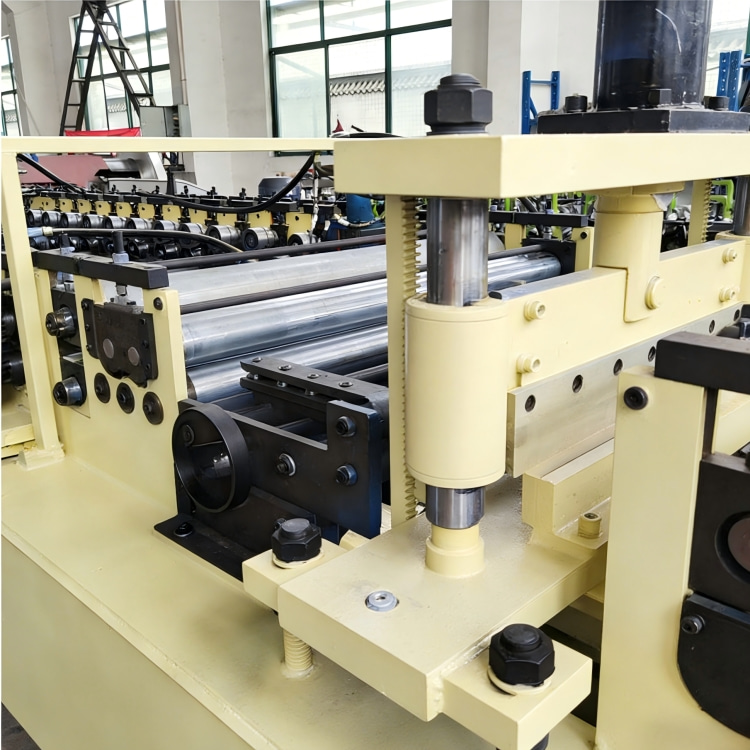

Cutting / Shearing system: Hydraulic cutting (or saw-cut); cutting blades made of heat-treated Cr12 / Cr12MoV
Control system: PLC control (Siemens / Panasonic / Delta optional) — supports automatic forming, punching, cutting, length & quantity control
Decoiler: Manual or hydraulic decoiler (capacity configurable, e.g. 3t–5t)
Material width: As per customer’s profile drawing / specification
Power supply / Voltage: 380 V, 50 Hz, three-phase (customizable per customer requirement)

Parameter	Specification
Raw material	Cold-rolled steel,Galvanized steel (optional stainless / color-coated steel)
Material thickness	1.5 – 3.0 mm
Roller material	GCr15 (or optional Cr12) alloy steel,heat treated (quenched / hardened)
Roller hardness	HRC 58 – 62° (depending on heat treatment)
Number of forming stations	16 – 28 stations (profile dependent)
Forming (line) speed	5 – 15 m/min (depending on profile & configuration)
Main motor power	15 – 22 kW (depending on model)
Cutting / Shearing system	Hydraulic cutting (or saw-cut);cutting blades made of heat-treated Cr12 / Cr12MoV
Control system	PLC control (Siemens / Panasonic / Delta optional) — supports automatic forming,punching,cutting,length & quantity control
Decoiler	manual or hydraulic decoiler (capacity configurable,e.g. 3t–5t)
Material width	As per customer’s profile drawing / specification

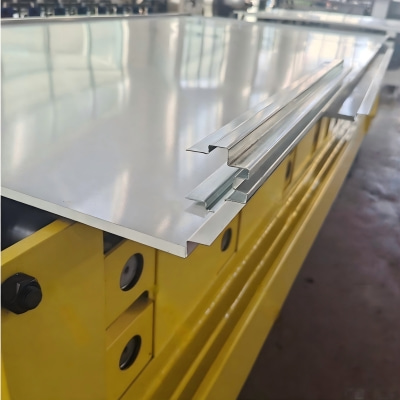

Profile types	Upright rack columns / shelf upright posts / pallet rack uprights / warehouse shelving uprights
Power supply / Voltage	380 V,50 Hz,three-phase (customizable per customer requirement)

Key Product Advantages

1. Energy-Saving & Eco-Friendly: Optimized motor reduces energy consumption by 15%, closed process minimizes noise and waste emissions.

2. Intelligent Lean Management: PLC system realizes real-time production data monitoring, helping optimize processes and reduce resource waste.

3. Global Adaptability: Customizable power supply and multi-material compatibility fit diverse regional production and environmental standards.

Quality & Safety Assurance

Compliant with RoHS, REACH environmental standards and ISO9001:2015, holding relevant green certifications for eco-friendly production.

Global Service Support

Provide green production solutions, energy-saving operation training, on-site commissioning and 24/7 after-sales support for global customers.

Typical Applications

Ideal for green production of panels in eco-industrial parks, green logistics centers and food cold-chain warehouse racks.
