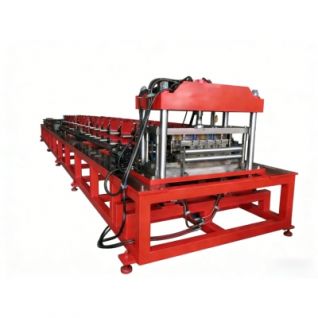

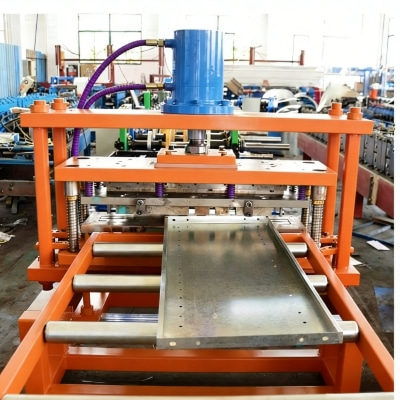

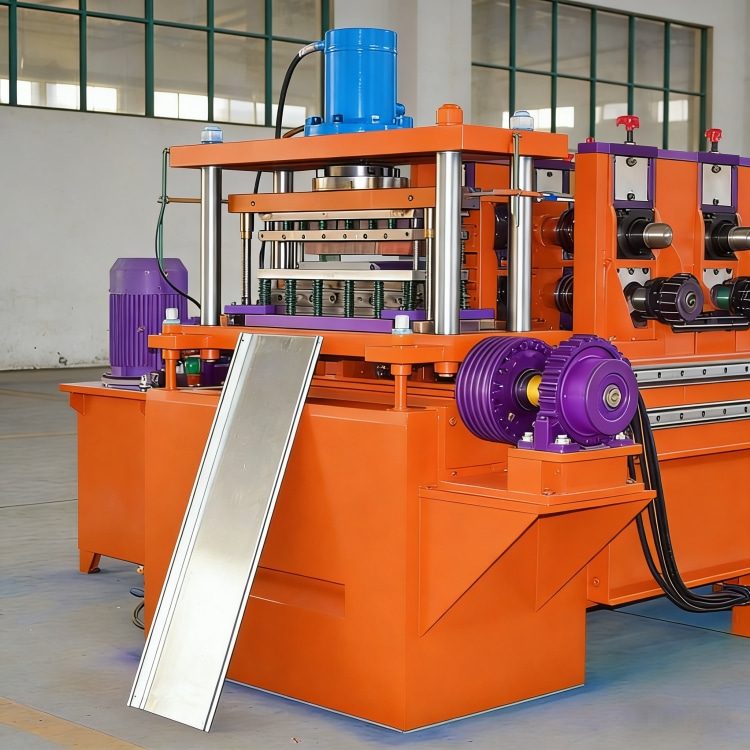

Product Overview
The Shelf Panel Roll Forming Machine is a fully automated integrated production solution designed exclusively for manufacturing high-precision shelf panels, a core component of retail shelving, industrial storage racks, and intelligent logistics systems. This production line integrates reliable forming technology, intelligent control, and streamlined workflow, ensuring consistent quality and efficient output for light to medium-duty shelf panel production. It has become a trusted choice for shelf manufacturers globally, catering to mass production demands with stable performance and easy operation.

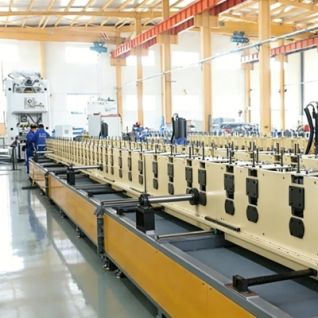

Production Line Configuration

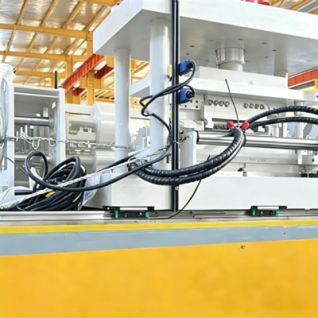

To achieve seamless and automated production, the overall production line is comprehensively equipped with key components, including decoiler, feeding system, hydraulic punching system, forming system, cutting system, electric control system, out tables, etc. Each module is precisely matched to realize a one-stop production process from raw material uncoiling to finished product output, minimizing manual intervention and improving production efficiency.
Core Technical Specifications
-
Model number: Rack Shelf Roll Forming Machine
-
Material Thickness: 0.7-1.2mm, compatible with common shelf panel raw materials
-
Product speed: 3-8meter / per minute, balancing high efficiency and forming precision
-

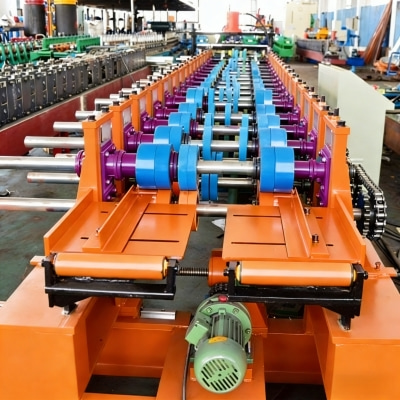

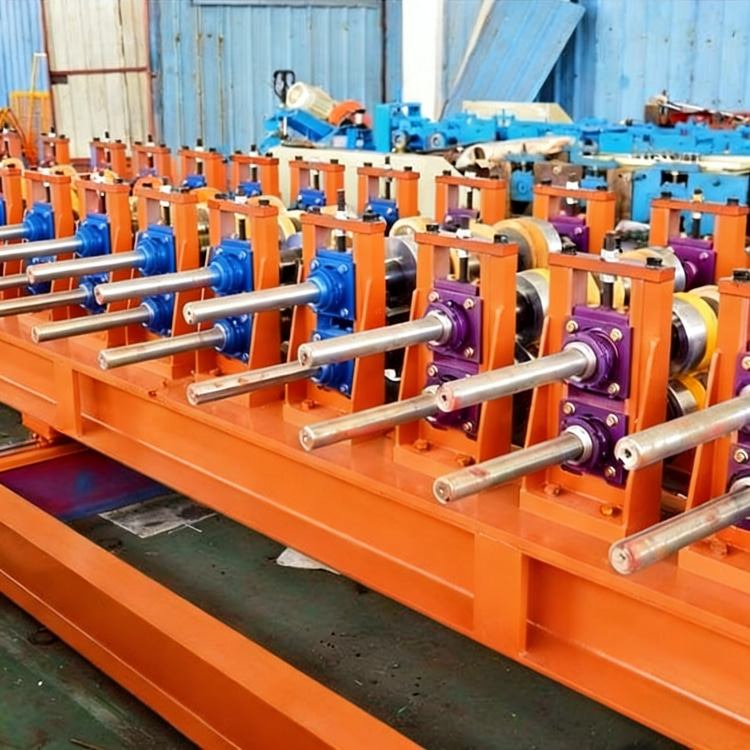

Roller Stations: About 18 stations, ensuring uniform forming and smooth surface of shelf panels
-
Roller Material: Gcr15 Steel with quenching, featuring excellent wear resistance and long service life
-
Shaft Material: 45# high quality steel, providing strong load-bearing capacity and stable transmission
-

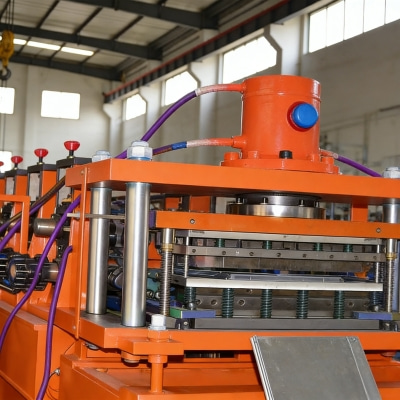

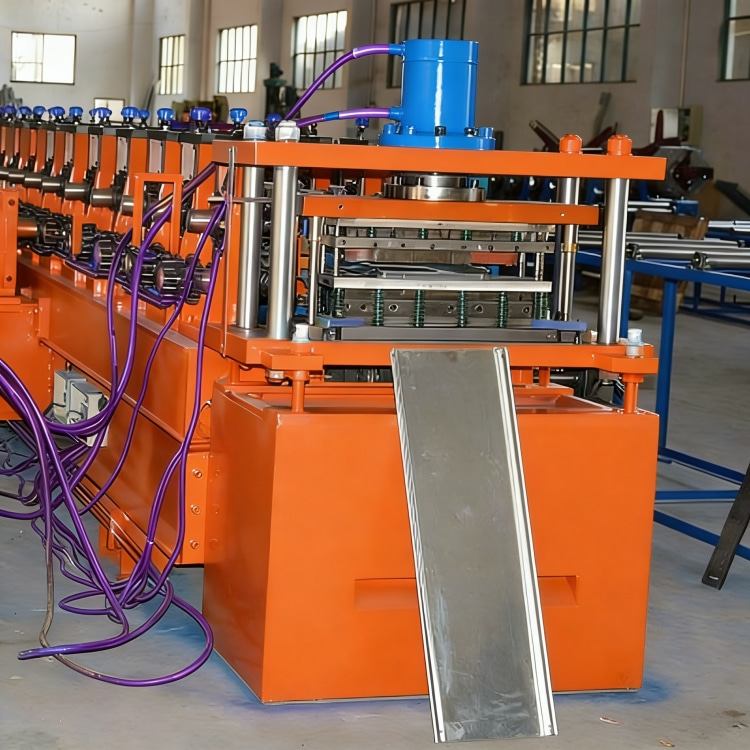

Material Of Cutting: CR12Mov with quench treatment, ensuring sharp cutting and smooth finished edges
-

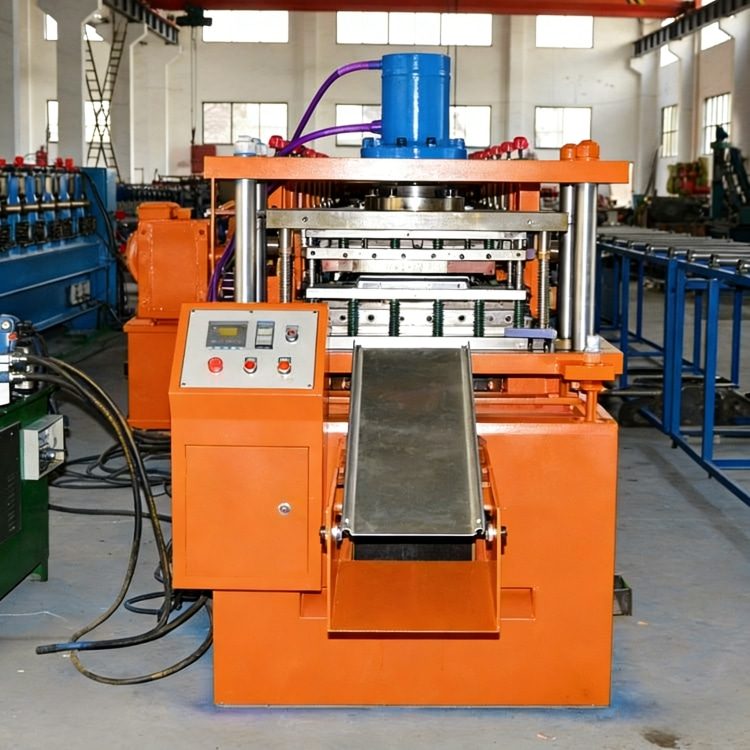

Electronic control: PLC control with touch screen, enabling intuitive operation and real-time production monitoring
-
Weight: About 8 tons, ensuring stable operation during high-speed production
Key Advantages
1. High Precision Forming: With about 18 roller stations and quenched Gcr15 steel rollers, the machine delivers consistent forming quality, ensuring shelf panels have precise dimensions and flat surfaces that meet strict assembly requirements.
2. Efficient Automated Operation: The integrated production line and PLC touch screen control simplify the operation process, allowing operators to complete parameter setting and production monitoring easily, while reducing labor costs and human errors.
3. Durable & Stable Performance: Core components such as 45# high-quality steel shafts and CR12Mov quenched cutting parts are selected for superior durability, ensuring long-term stable operation and reducing maintenance frequency.
4. Versatile Application: Adaptable to 0.7-1.2mm material thickness, the machine can produce various types of shelf panels, meeting the needs of retail, industrial storage, and logistics industries.
Safety & Quality Assurance
The machine is equipped with a complete safety protection system to safeguard operator safety during production. The intelligent PLC control system monitors the operation status of each component in real time, triggering automatic alarms and shutdowns in case of abnormalities to avoid production accidents and product defects. All key components undergo strict quality inspection and quenching treatment, ensuring the overall reliability and service life of the equipment.
Global Service Support
Pre-sales Consulting
We provide multilingual technical support (English, German, Russian, Spanish, Arabic), on-site factory layout planning, and customized solutions based on customers' specific product requirements, material characteristics, and production scales.
Sales Support
Professional packaging is provided to prevent transportation damage, and complete industrial equipment customs clearance documents are supplied. Our certified engineers offer on-site installation, commissioning, and systematic training on operation, maintenance, and quality control for customer teams.
After-sales Service
24/7 online technical assistance is available, with on-site support within 48 hours in key regions. We offer a long-term warranty for core components, lifelong maintenance guidance, and free software upgrades to ensure continuous and stable operation of the production line.
Certifications
CE | ISO9001:2015 | SGS | TUV Rheinland
Typical Applications
-
Shelf panel production for supermarket and retail display shelves
-
Light to medium-duty shelf panel manufacturing for industrial warehouses
-
Customized shelf panel production for office and household storage systems
-
Shelf panel production for intelligent logistics distribution centers
