Product Overview

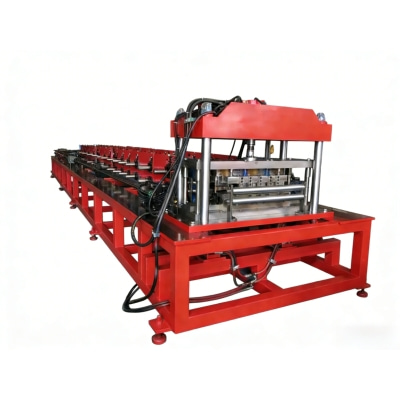

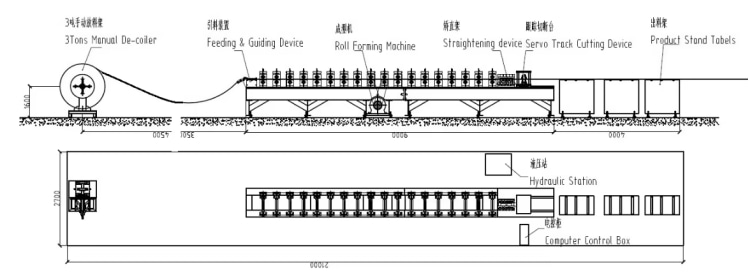

The Shelves Roll Forming Machine is a specialized automated production equipment engineered for manufacturing high-precision storage shelf components, including upright rack columns, shelf upright posts, and pallet rack uprights. As a core device in the storage shelf manufacturing industry, it integrates decoiling, feeding, punching, forming, and cutting processes into a seamless workflow. Equipped with advanced intelligent control technology and high-performance core components, this machine ensures stable, efficient, and high-quality mass production, perfectly meeting the demands of industrial warehouses, logistics distribution centers, and commercial storage facilities. It is highly recognized by global shelf manufacturers for its reliable operation, strong adaptability, and customizable configurations.
Core Technical Specifications
-
Raw material:Cold-rolled steel, Galvanized steel (optional stainless / color-coated steel), covering mainstream and customized material requirements for shelf production
-
Material thickness: 1.5 – 3.0 mm, matching the thickness standard of high-strength storage shelf components
-

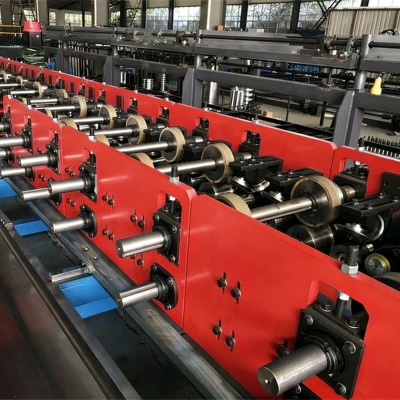

Roller material: GCr15 (or optional Cr12) alloy steel, heat treated (quenched / hardened), featuring superior wear resistance and deformation resistance
-
Roller hardness: HRC 58 – 62° (depending on heat treatment), guaranteeing long-term stable forming precision
-
Number of forming stations: 16 – 28 stations (profile dependent), adaptable to different shelf profile structures for uniform stress distribution
-
Forming (line) speed: 5 – 15 m/min (depending on profile & configuration), balancing production efficiency and product quality
-
Main motor power: 15 – 22 kW (depending on model), providing stable and sufficient power support for the entire production process
-

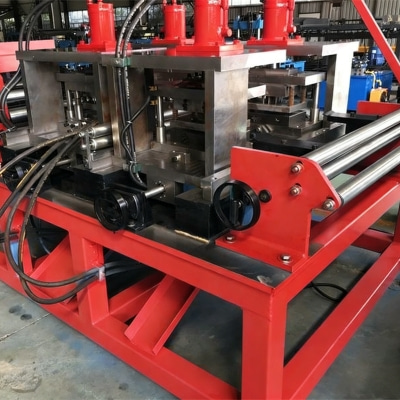

Cutting / Shearing system:Hydraulic cutting (or saw-cut); cutting blades made of heat-treated Cr12 / Cr12MoV, ensuring smooth cutting surfaces and high length precision
-
Control system: PLC control (Siemens / Panasonic / Delta optional) — supports automatic forming, punching, cutting, length & quantity control, realizing intelligent full-process management
-
Decoiler: Manual or hydraulic decoiler (capacity configurable, e.g. 3t–5t), adapting to different production scale requirements
-
Material width: As per customer’s profile drawing / specification, fully customized to meet unique shelf design needs
-
Profile types: Upright rack columns / shelf upright posts / pallet rack uprights / warehouse shelving uprights, covering core shelf component production
-
Power supply / Voltage: 380 V, 50 Hz, three-phase (customizable per customer requirement), compatible with global regional power standards
Global One-Stop Service
Pre-sales Consulting
We provide multilingual technical support (English, German, Russian, Spanish, Arabic), on-site factory layout planning, and customized production solutions based on customers' specific shelf profile drawings, material requirements, production scales, and regional power standards.
Sales Support
Professional packaging is adopted to prevent equipment damage during transportation. We provide complete industrial equipment customs clearance documents and arrange professional engineers for on-site installation, commissioning, and debugging. Systematic training on machine operation, maintenance, and quality control is provided for customer teams to ensure proficient use.
After-sales Service
24/7 online technical assistance is available to solve customers' problems in a timely manner. On-site maintenance support is provided within 48 hours in key regions. We offer a long-term warranty for core components of the machine, provide lifelong maintenance guidance, and free software upgrade services to ensure the continuous and stable operation of the equipment.
Typical Applications
-
Production of upright rack columns for heavy-duty industrial storage shelves
-
Manufacturing of shelf upright posts for commercial retail warehouses
-
Customized production of pallet rack uprights for logistics distribution centers
-
Production of warehouse shelving uprights for cold-chain storage and chemical storage facilities
