Product Overview

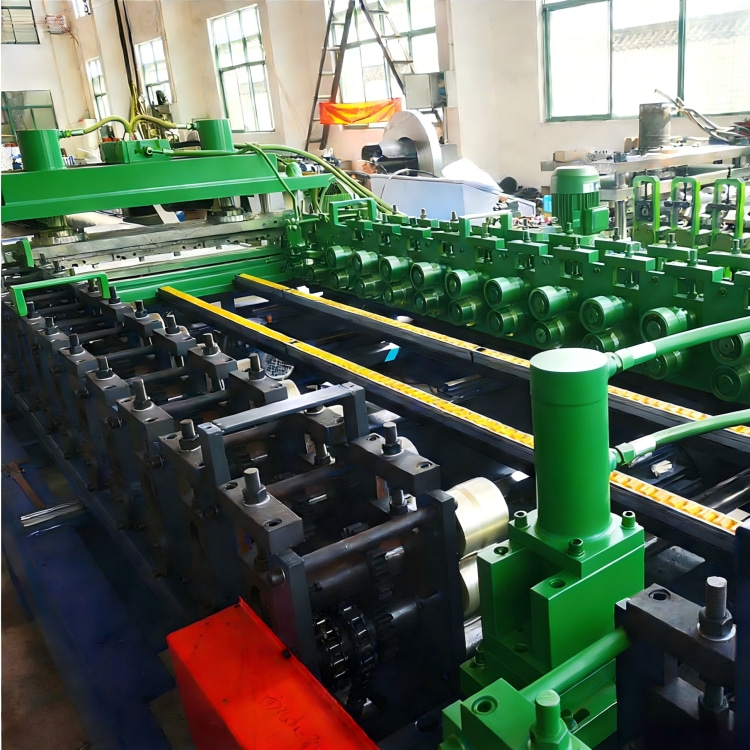

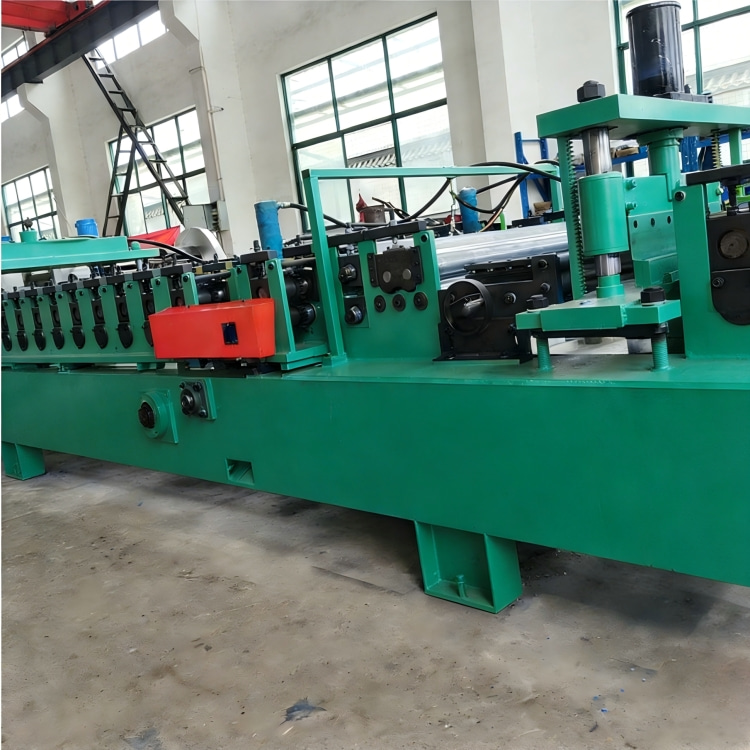

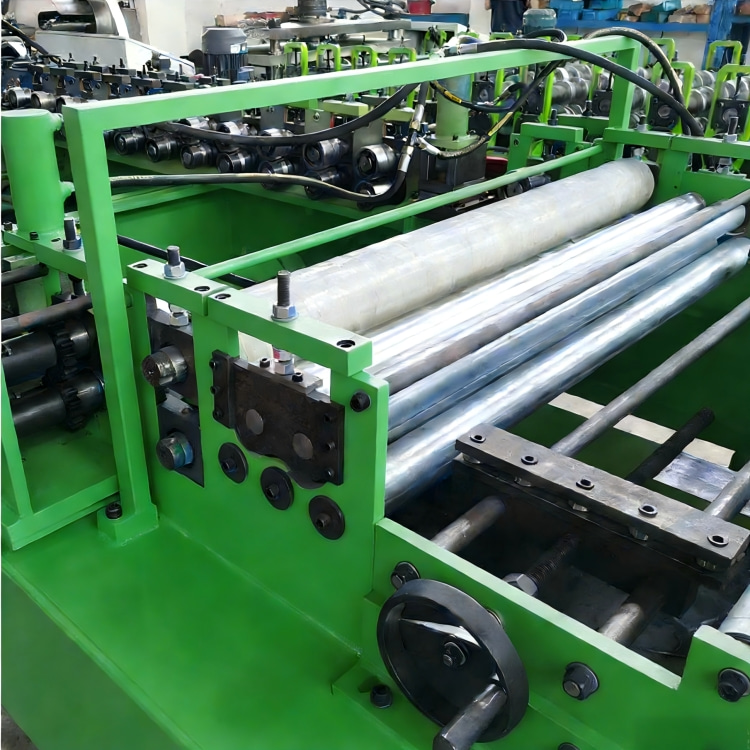

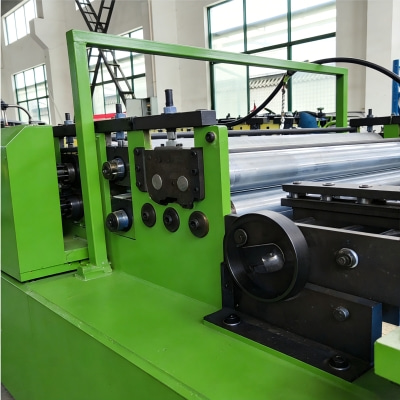

The Warehouse Metal Rack Machine is a high-end customized solution for diverse warehouse rack panel production. Designed for global manufacturers, it offers flexible component configuration to adapt to special-shaped panels and regional production standards for premium storage systems.
Core Technical Specifications
-
Raw material: Cold-rolled steel, Galvanized steel (optional stainless / color-coated steel)
-
Material thickness: 1.5 – 3.0 mm
-
Roller material: GCr15 (or optional Cr12) alloy steel, heat treated (quenched / hardened)
-
Roller hardness: HRC 58 – 62° (depending on heat treatment)
-

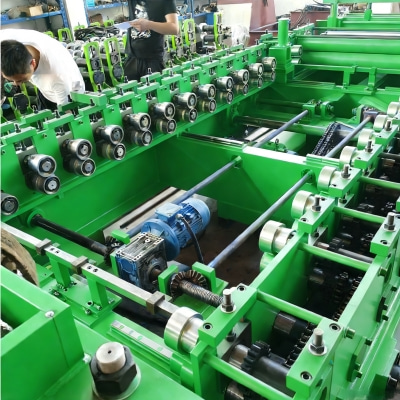

Number of forming stations: 16 – 28 stations (profile dependent)
-
Forming (line) speed: 5 – 15 m/min (depending on profile & configuration)
-
Main motor power:15 – 22 kW (depending on model)
-
Cutting / Shearing system: Hydraulic cutting (or saw-cut); cutting blades made of heat-treated Cr12 / Cr12MoV
-
Control system: PLC control (Siemens / Panasonic / Delta optional) — supports automatic forming, punching, cutting, length & quantity control
-
Decoiler: Manual or hydraulic decoiler (capacity configurable, e.g. 3t–5t)
-
Material width: As per customer’s profile drawing / specification
-
Power supply / Voltage: 380 V, 50 Hz, three-phase (customizable per customer requirement)
|
Parameter
|
Specification
|
|
Raw material
|
Cold-rolled steel,Galvanized steel (optional stainless / color-coated steel)
|
|
Material thickness
|
1.5 – 3.0 mm
|
|
Roller material
|
GCr15 (or optional Cr12) alloy steel,heat treated (quenched / hardened)
|
|
Roller hardness
|
HRC 58 – 62° (depending on heat treatment)
|
|
Number of forming stations
|
16 – 28 stations (profile dependent)
|
|
Forming (line) speed
|
5 – 15 m/min (depending on profile & configuration)
|
|
Main motor power
|
15 – 22 kW (depending on model)
|
|
Cutting / Shearing system
|
Hydraulic cutting (or saw-cut);cutting blades made of heat-treated Cr12 / Cr12MoV
|
|
Control system
|
PLC control (Siemens / Panasonic / Delta optional) — supports automatic forming,punching,cutting,length & quantity control
|
|
Decoiler
|
manual or hydraulic decoiler (capacity configurable,e.g. 3t–5t)
|
|
Material width
|
As per customer’s profile drawing / specification
|
|
Profile types
|
Upright rack columns / shelf upright posts / pallet rack uprights / warehouse shelving uprights
|
|
Power supply / Voltage
|
380 V,50 Hz,three-phase (customizable per customer requirement)
|
Key Product Advantages
1. Strong Customization Capacity: Customize material width, roller type and PLC brand per drawings, fitting special-shaped rack panel production needs.
2. Durable Wear-Resistant Components: Heat-treated alloy steel rollers and cutting blades ensure low wear, with annual failure rate below 4% for long-term use.
3. Profile-Adaptable Production: Adjustable stations and speed adapt to various panel specifications, meeting personalized load-bearing requirements.
Quality & Safety Assurance
Certified by SGS and TUV Rheinland, the machine undergoes full-process quality inspection, ensuring compliance with global high-end storage equipment standards.
Global Service Support
Offer one-stop services including customized solution design, on-site debugging, maintenance training and lifelong accessory supply.
Typical Applications

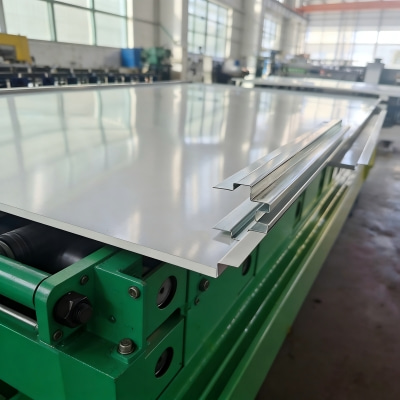

Suitable for premium panels of heavy-duty industrial racks, intelligent logistics racks and special environment warehouse storage systems.
