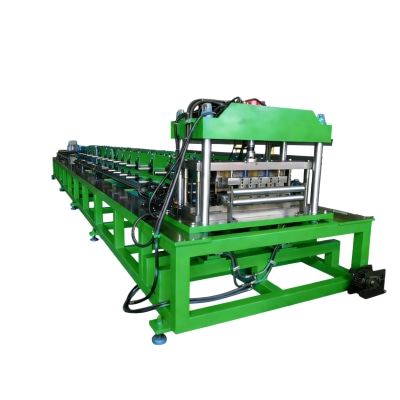

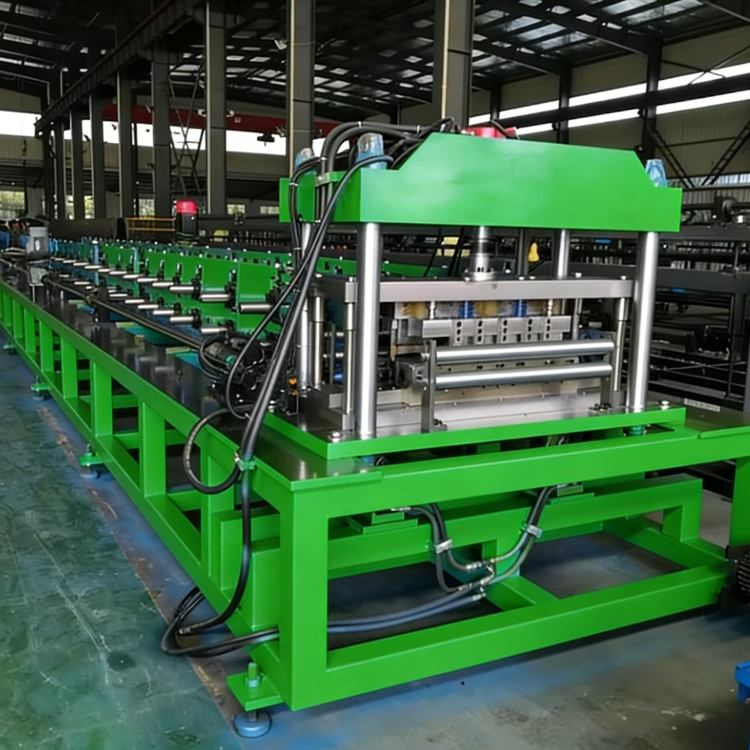

Product Overview
The Shelves Roll Forming Machine is a professional automated production equipment tailored for manufacturing high-precision storage shelves, a key component in industrial warehouses, logistics distribution centers, and commercial retail storage systems. This machine integrates advanced roll forming technology, precise cutting systems, and intelligent control functions, enabling stable and efficient mass production of various types of shelves. With strong adaptability to different raw materials and shelf specifications, it has become a trusted choice for global shelf manufacturers due to its reliable performance, high production efficiency, and consistent product quality.
Core Technical Specifications
-
Raw material: Cold-rolled steel, Galvanized steel (optional stainless / color-coated steel), covering mainstream and customized material demands for shelf production
-
Material thickness: 1.5 – 3.0 mm, perfectly matching the thickness requirement of high-strength storage shelves
-
Roller material: GCr15 (or optional Cr12) alloy steel, heat treated (quenched / hardened), featuring excellent wear resistance and deformation resistance
-
Roller hardness: HRC 58 – 62° (depending on heat treatment), ensuring long-term stable forming precision
-

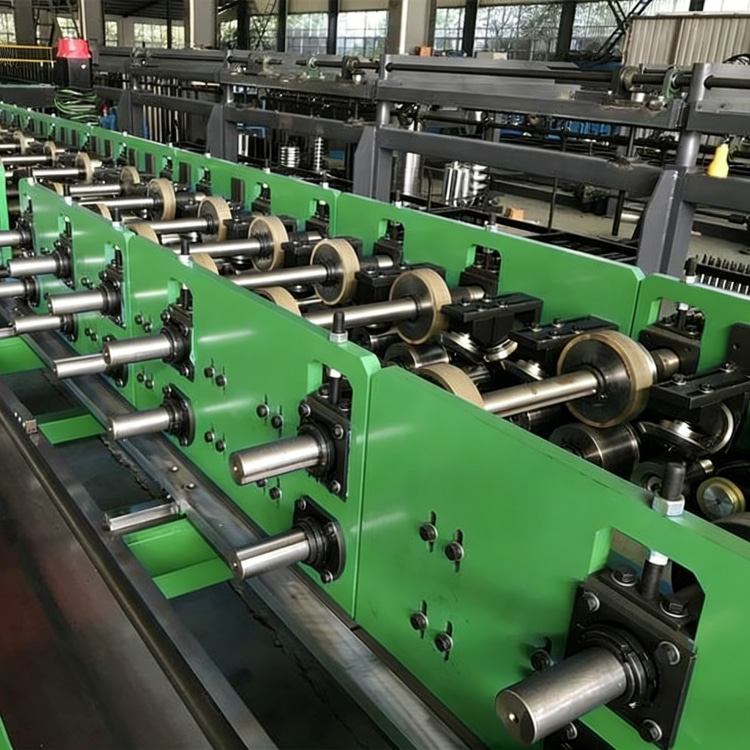

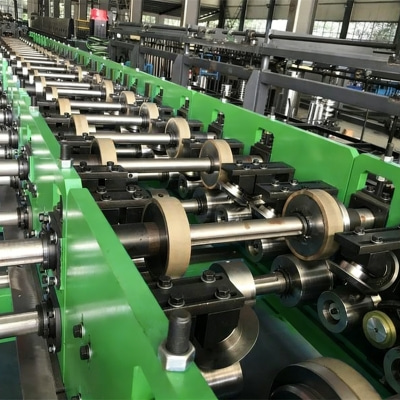

Number of forming stations: 16 – 28 stations (profile dependent), adaptable to different shelf profile structures for uniform stress distribution
-
Forming (line) speed: 5 – 15 m/min (depending on profile & configuration), balancing high efficiency and production quality
-
Main motor power: 15 – 22 kW (depending on model), providing stable and sufficient power support for the entire production process
-

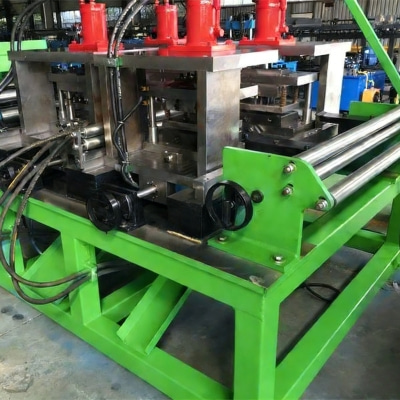

Cutting / Shearing system: Hydraulic cutting (or saw-cut); cutting blades made of heat-treated Cr12 / Cr12MoV, ensuring smooth cutting surfaces and high length precision
-
Control system: PLC control (Siemens / Panasonic / Delta optional) — supports automatic forming, punching, cutting, length & quantity control, realizing intelligent full-process management
-
Decoiler: Manual or hydraulic decoiler (capacity configurable, e.g. 3t–5t), matching different production scale requirements
-

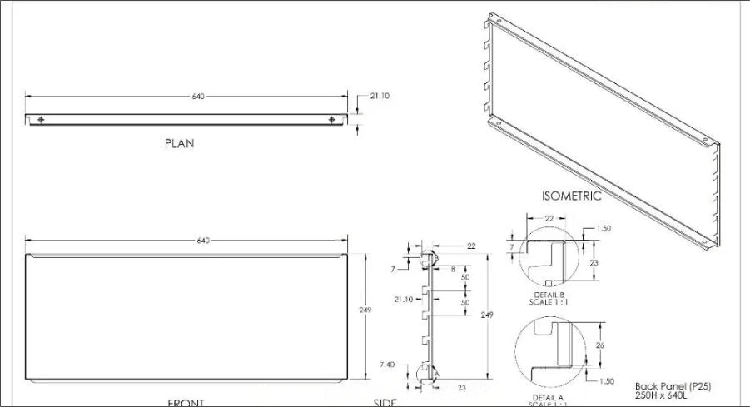

Material width: As per customer’s profile drawing / specification, fully customized for unique shelf designs
-
Power supply / Voltage: 380 V, 50 Hz, three-phase (customizable per customer requirement), adaptable to global regional power standards
Global One-Stop Service
Pre-sales Consulting
We provide multilingual technical support (English, German, Russian, Spanish, Arabic), on-site factory layout planning, and customized production solutions based on customers' specific shelf drawings, production scales, and regional requirements.
Sales Support
Professional packaging is used to prevent equipment damage during transportation. We provide complete customs clearance documents and arrange professional engineers for on-site installation, commissioning, and debugging. Systematic training on operation, maintenance, and quality control is provided for customer teams to ensure proficient use of the equipment.
After-sales Service
24/7 online technical assistance is available to solve customer problems in a timely manner. On-site maintenance support is provided within 48 hours in key regions. We offer a long-term warranty for core components of the machine, provide lifelong maintenance guidance, and free software upgrade services to ensure the continuous and stable operation of the equipment.
Typical Applications
-
Production of heavy-duty industrial storage shelves for factories and workshops
-
Manufacturing of pallet shelves for logistics distribution centers and warehouses
-
Customized production of commercial retail shelves for supermarkets and convenience stores
-
Production of special environment (cold-chain, chemical) storage shelves for special industries
