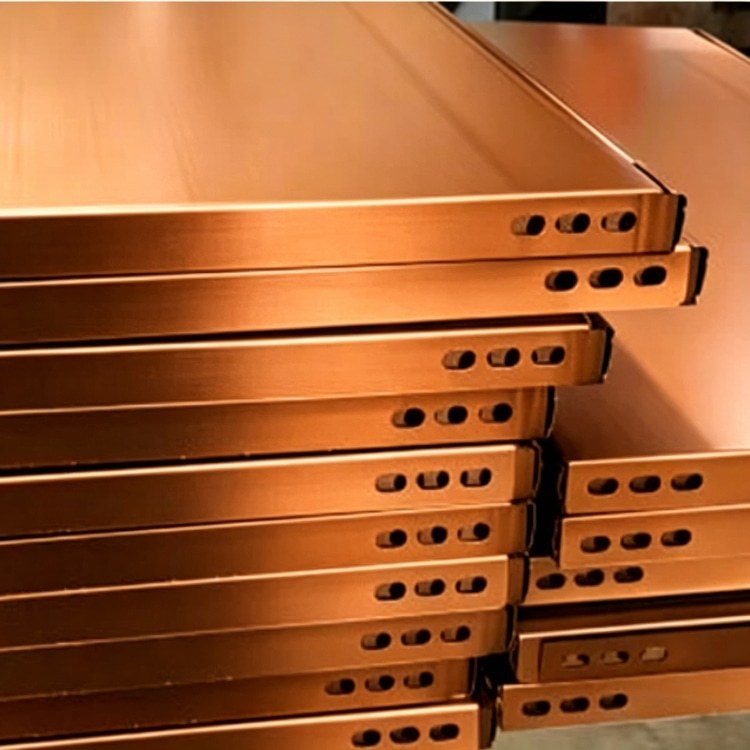

The Shelf Panel Roll Forming Machine is engineered for high-precision, continuous manufacturing of shelf panels used in industrial, commercial, and retail storage systems. Built for efficiency, this integrated line combines automatic feeding, punching, and cutting units to eliminate manual intervention, reduce human error, and ensure every panel meets exact dimensional specifications. The result is smooth, uniform surfaces and consistent quality across light-duty retail shelves and heavy-duty industrial racking alike.

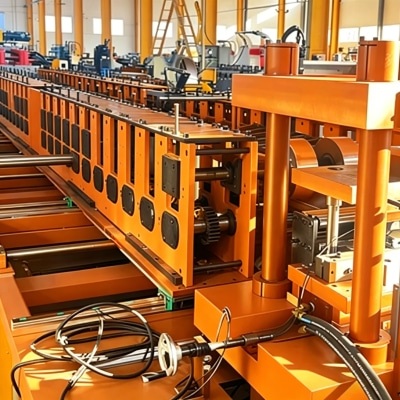

Designed to handle diverse materials, the machine processes cold rolled steel and galvanized steel with thicknesses from 0.8–1.50 mm and widths ranging from 250–1000 mm. Its modular forming section features 10–18 forming stations, each with hardened rollers calibrated to maintain precise bend angles and panel geometry. The maximum forming speed reaches 12–20 m/min, enabling high-volume production without sacrificing accuracy.
|
Parameter
|
Specification
|
|
Machine Type
|
Shelf Panel Roll Forming Machine
|
|
Material Thickness
|
0.8 – 1.50 mm
|
|
Material Width
|
250– 1000 mm
|
|
Forming Stations
|
10 – 18 stations
|
|
Max Forming Speed
|
12 – 20 m/min
|
|
Decoiler
|
Manual / Hydraulic / Motorized
|
|
Cutting Method
|
Flying Cut / Hydraulic Shear
|
|
Drive System
|
Electric / PLC Control
|
|
Power
|
15 – 30 kW
|
|
Machine Dimensions (L×W×H)
|
8–12 m x 1.5 m x 1.8 m
|
|
Machine Weight
|
6 – 12 tons
|
|
Tolerance
|
±1 mm
|
|
Suitable Material
|
Cold Rolled Steel / Galvanized Steel
|
|
Optional Features
|
Automatic Punching,Stacking,Labeling
|

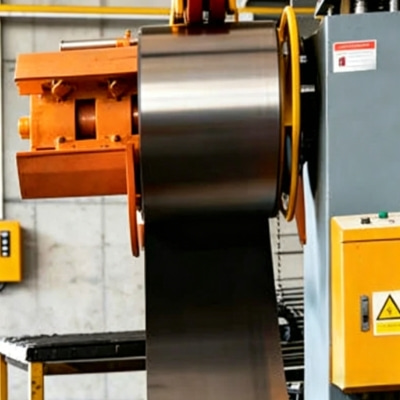

Controlled by a PLC-based electric drive system, the machine offers intuitive operation and real-time monitoring. Operators can store custom production recipes for quick profile changes, while the decoller supports manual, hydraulic, or motorized feeding to match varying coil sizes. Cutting options include flying cut (for continuous high-speed runs) and hydraulic shear (for clean, burr-free edges), both delivering a tolerance of ±1 mm. Optional features like automatic punching, stacking, and labeling further streamline workflows, reducing labor costs and material waste. With a robust steel frame weighing 6–12 tons and dimensions of 8–12 m × 1.5 m × 1.8 m, the machine ensures stable performance even in 24/7 industrial environments, making it an indispensable asset for manufacturers scaling production.
