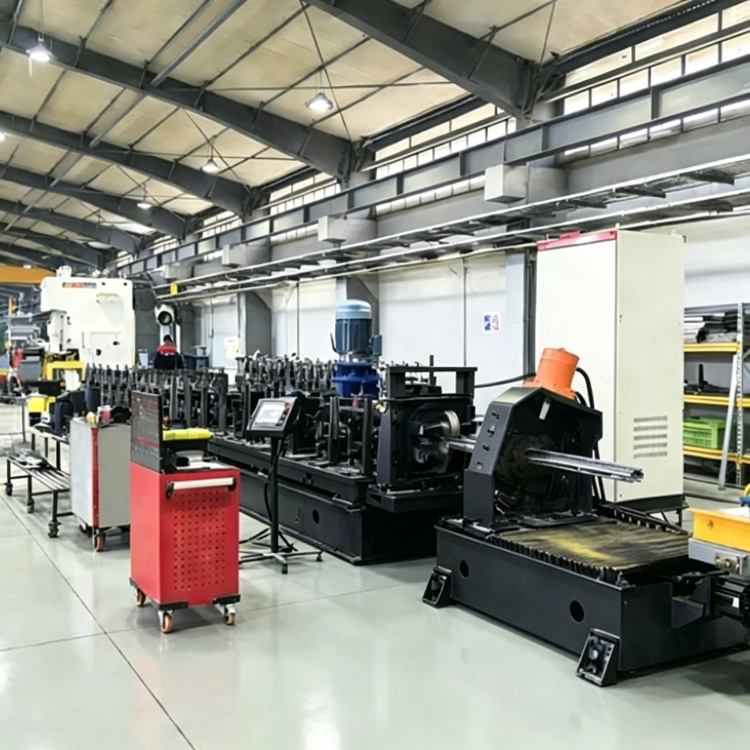

Engineered for precision, the Shelf Rack Roll Forming Machine delivers exceptional dimensional accuracy, ensuring that every shelf rack upright produced meets the strictest industry standards for structural integrity and assembly. The machine’s advanced forming technology, combined with a PLC control system and servo-driven feeding, ensures that each bend, fold, and cut is executed with pinpoint accuracy, maintaining a dimensional tolerance of ±1 mm across all production runs. This precision is critical for shelf racks, as misaligned or poorly formed uprights can compromise the entire storage system’s stability and safety.

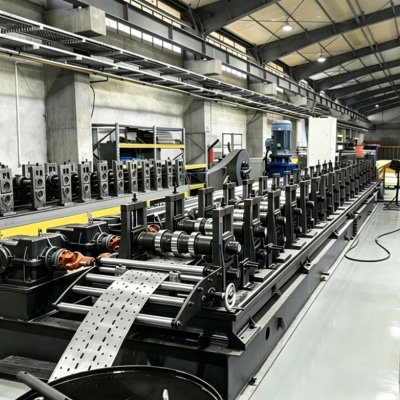

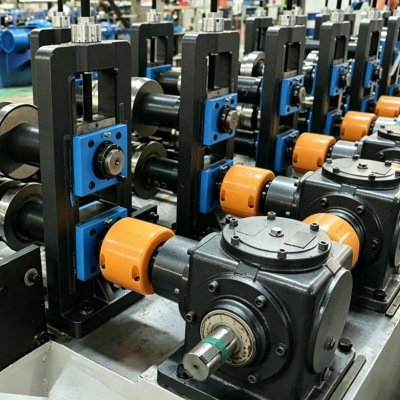

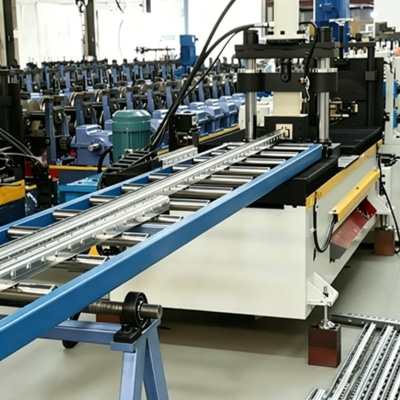

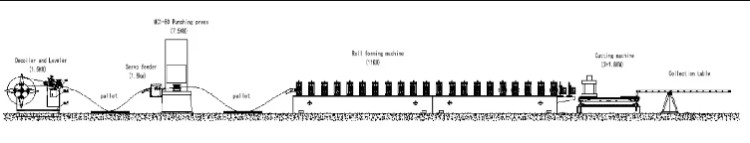

The forming section features 12 to 20 precision stations, each equipped with custom-designed tooling that is machined to exact specifications. The tooling is made from high-hardness steel with a hardness of HRC 58-62, ensuring that it maintains its shape and precision even after prolonged use. The servo-driven feeding system delivers material to the forming stations with a positioning accuracy of ±0.5 mm, ensuring consistent material alignment and preventing misforming. The machine’s cutting system, whether flying cut or hydraulic shear, is calibrated to deliver clean, accurate cuts, ensuring that each upright’s length is precise and consistent.
|
Parameter
|
Specification
|
|
Machine Type
|
Shelf Rack Roll Forming Machine
|
|
Material Thickness
|
1.0 ~ 3.5 mm
|
|
Material Width
|
50 ~ 250 mm
|
|
Forming Stations
|
12 ~ 20 stations
|
|
Max Forming Speed
|
10 ~ 18 m/min
|
|

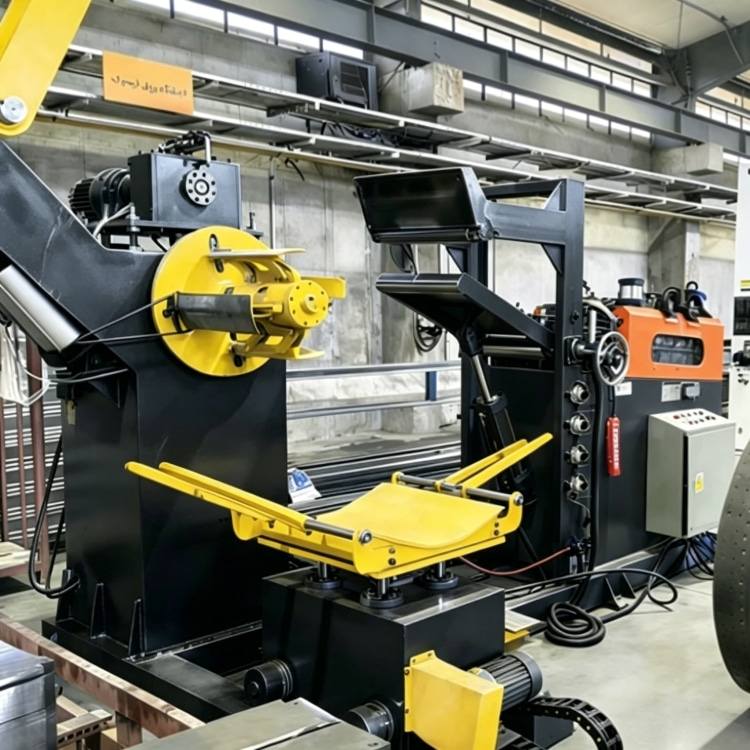

Decoiler
|
Manual / Hydraulic / Motorized
|
|
Cutting Method
|
Flying Cut / Hydraulic Shear
|
|
Drive System
|
Electric / PLC Control
|
|
Power
|
20 ~ 35 kW
|
|
Machine Dimensions (L×W×H)
|
10–14 m × 1.5 m × 1.8 m
|
|
Machine Weight
|
7 ~ 14 tons
|
|
Tolerance
|
±1 mm
|
|
Suitable Material
|
Cold Rolled Steel / Galvanized Steel
|
|

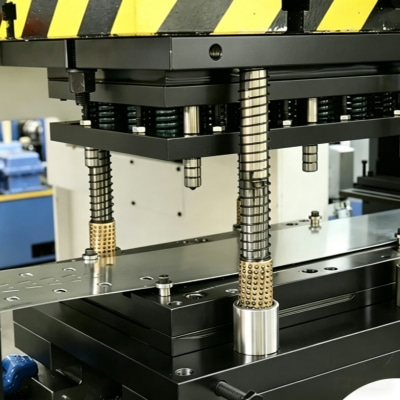

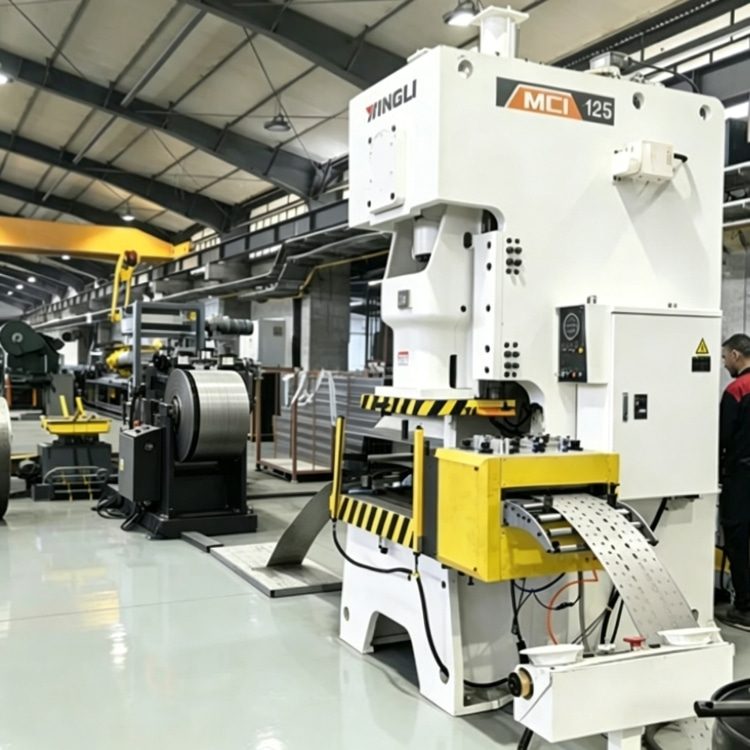

Optional Features
|
Automatic Punching,Stacking,Labeling
|
To further enhance precision, the machine is equipped with a laser alignment system that monitors material position in real time and adjusts the feeding system automatically to correct any deviations. The PLC control system stores production parameters and ensures that each profile is formed to the same exact specifications, eliminating variation between batches. The machine’s heavy-duty frame, weighing 7 tons to 14 tons, provides a stable platform for the forming process, reducing vibrations that can affect dimensional accuracy. Whether producing standard or custom uprights, this Shelf Rack Roll Forming Machine delivers the precision needed to ensure that shelf racks are safe, durable, and easy to assemble.
