Automatic Box Beam Roll Forming Line Storage Rack Roll Forming Machine

Automatic Box Beam Roll Forming Line Storage Rack Roll Forming Machine

Product Attributes :

Contact Person： XN Duan

Mobile Phone：18832797029

WhatsApp:+86 18832797029

E-mail:yuankuoduan@gmail.com

Add：Zhenggang Road, Industrial Development Zone, Botou City, Hebei Province

Product Description

Product Overview

This machine is an economic and efficient option for mass shelf beam production, integrating user-friendly operation and low maintenance design. It balances production efficiency and cost control, helping small and medium-sized enterprises reduce operational costs while ensuring stable output quality.

Core Technical Specifications

Raw material: Cold-rolled steel, Galvanized steel (optional stainless / color-coated steel)

Material thickness: 1.5 – 3.0 mm

Roller material: GCr15 (or optional Cr12) alloy steel, heat treated (quenched / hardened)

Roller hardness: HRC 58 – 62° (depending on heat treatment)

Number of forming stations: 16 – 28 stations (profile dependent)

Forming (line) speed: 5 – 15 m/min (depending on profile & configuration)

Main motor power: 15 – 22 kW (depending on model)

Cutting / Shearing system:Hydraulic cutting (or saw-cut); cutting blades made of heat-treated Cr12 / Cr12MoV

Control system: PLC control (Siemens / Panasonic / Delta optional) — supports automatic forming, punching, cutting, length & quantity control

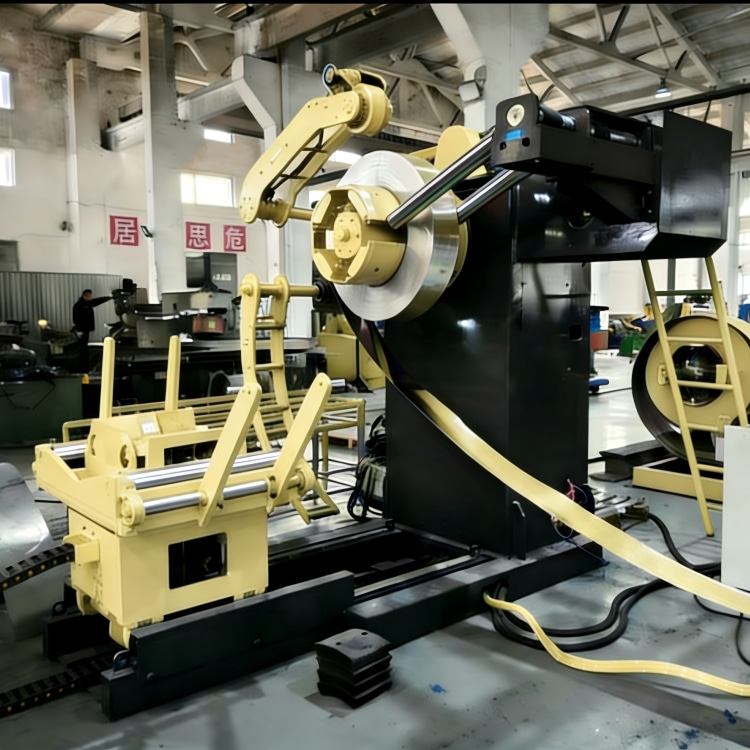

Decoiler: Manual or hydraulic decoiler (capacity configurable, e.g. 3t–5t)

Material width: As per customer’s profile drawing / specification

Power supply / Voltage: 380 V, 50 Hz, three-phase (customizable per customer requirement)

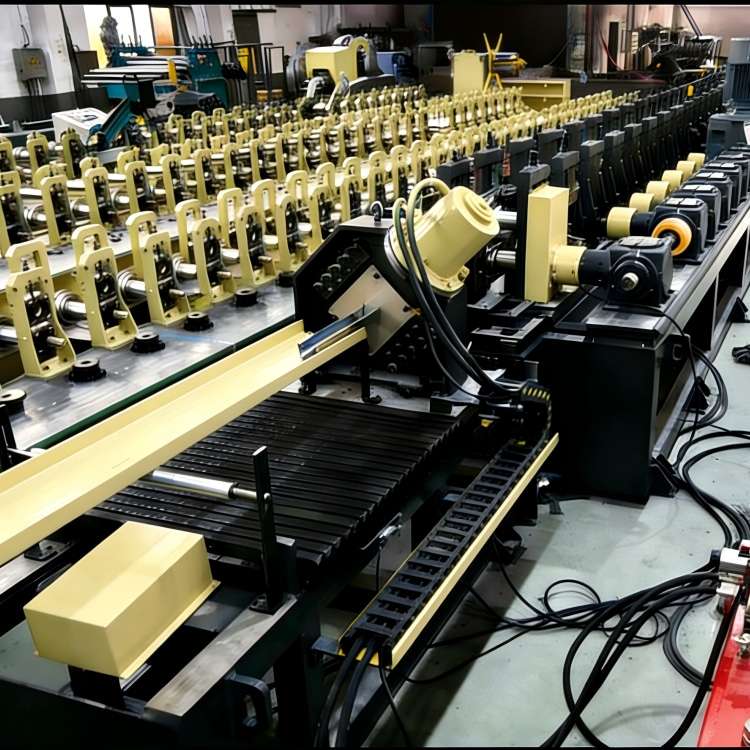

Automatic Box Beam Roll Forming Line
Machinable Material	A) Galvanized Coil	Thickness(MM):1.5-3.0 as per customer
	B) Cold/Hot-rolled Steel
	C) Carbon Steel
Yield Strength	250 - 350 Mpa
Tensil Stress	350 Mpa-500 Mpa
Nominal Forming Speed(M/Min)	10-20	* Or According To Your Requirment
Forming Station	18-20	* According To Your Profile Drawings
Decoiler	Manual Decoiler	* Hydraulic Decoiler (Optional)
Driving System	Chain Drive	* Gearbox Drive (Optional)
Machine Structure	Steel Plates Welded	* Cast Iron Stands (Optional)
Rollers’ Material	GCr 15	* Cr12Mov (Optional)
Cutting System	Hydraulic Cut	* Saw Cut (Optional)
Boxing Unit	By Chain	* By Gearbox (Optional)
Welding Efficiency	Specification 50100±25 seconds/pcs, Specification 50120-140±30 seconds/pcs, Specification 50*160±35 seconds/pcs (Except for beams with unilateral error of >1.5mm)

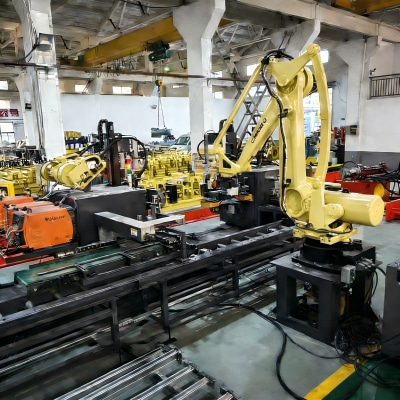

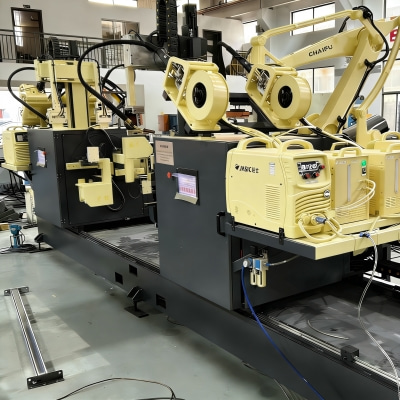

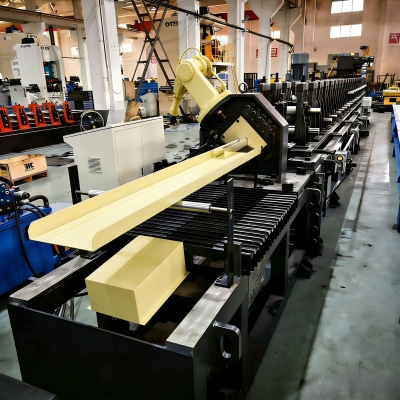

Welding &Stacking Process	Stack the hanging pieces in order on the automatic hanging piece feeding platform,then input the signal,the machine starts to automatically load the hanging pieces,and at the same time,the robot automatically grabs the crossbeam to the specified position of the machine platform,starts welding,first welds the two sides,rotates 90 degrees and then welds the two sides to complete the welding,rotates to another station,and the robot takes the material to the finished product stacking,and the robot takes the material again,and the above actions are repeated. All the above actions are controlled and operated by the dedicated system for the crossbeam automatic line
Machine Color	Industrial Blue	* Or According To Your Requirment

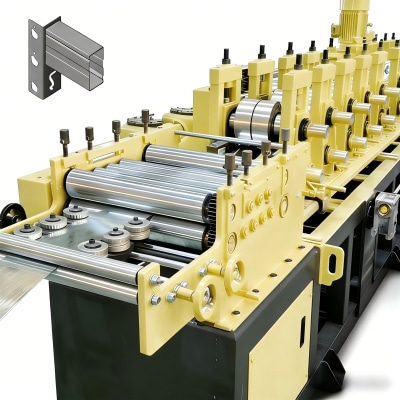

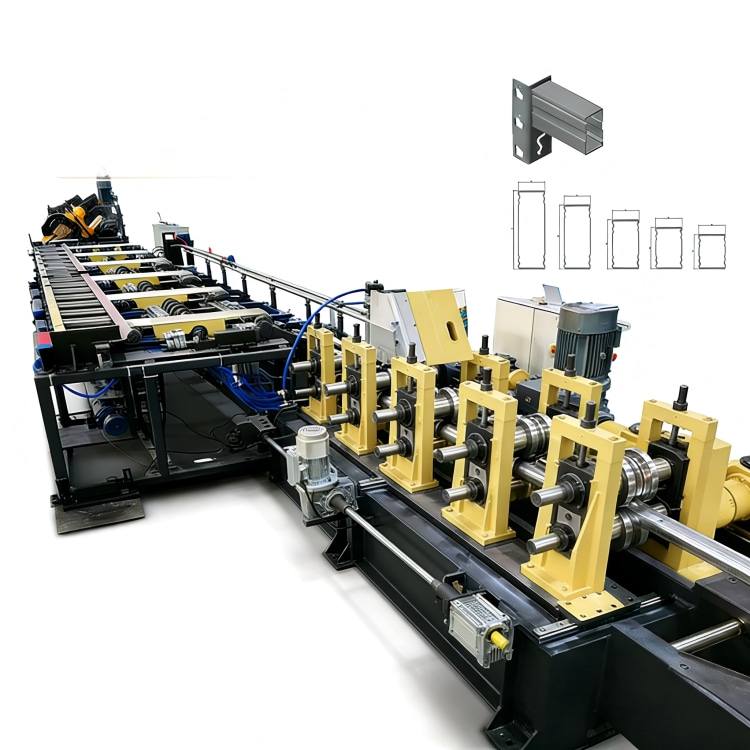

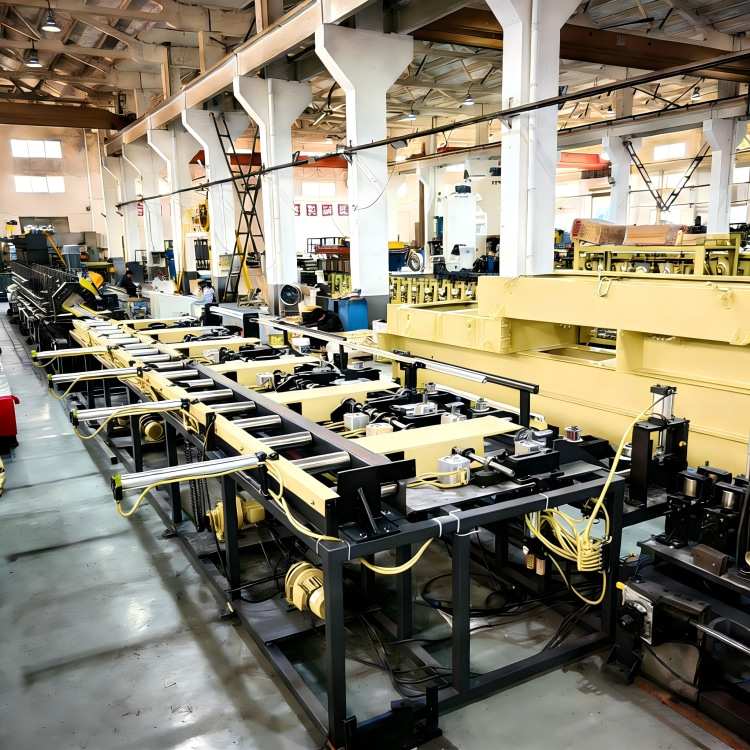

Storage Rack Roll Forming Machine

Key Product Advantages

1. High-Efficiency Mass Production: 5-15 m/min forming speed and integrated automatic workflow shorten production cycles, improving overall efficiency by 30% compared to traditional equipment.

2. Easy Operation & Low Training Cost: Intuitive PLC interface and simple operation process allow operators to master skills quickly, reducing personnel training expenses.

3. Low Maintenance Expense: Scientific structure design and wear-resistant core components (heat-treated rollers and blades) reduce replacement frequency and maintenance downtime costs.

Quality & Safety Assurance

Strict pre-delivery inspection and safety protection system ensure operational safety and stable performance, complying with international industrial standards and meeting mass production quality consistency requirements.

Global Service Support

Provide global logistics, on-site installation by professional engineers, 24/7 online technical assistance and lifelong maintenance guidance, reducing customer operational risks.

Typical Applications

Widely applied in mass production of beams for commercial chain store shelves, daily necessities storage racks, industrial warehouse shelving and logistics sorting center racks.
