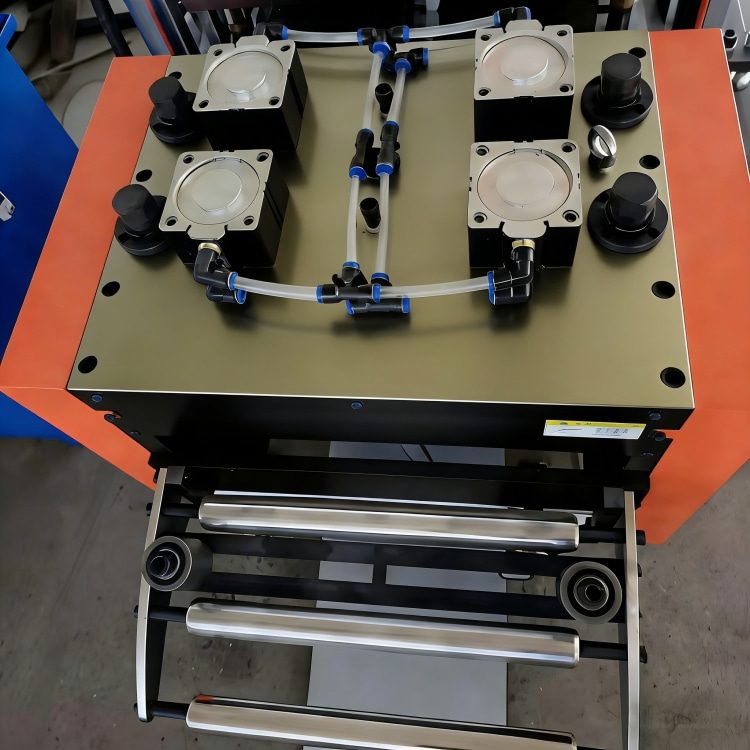

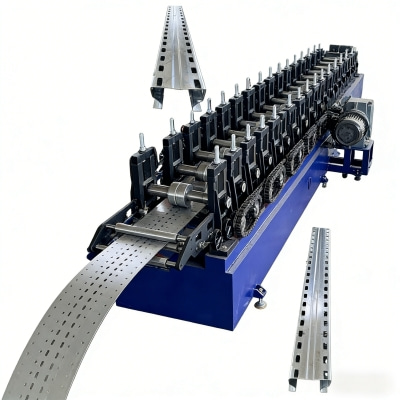

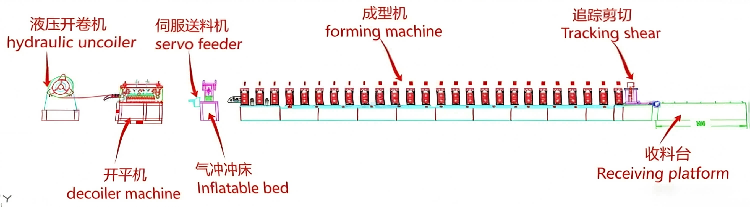

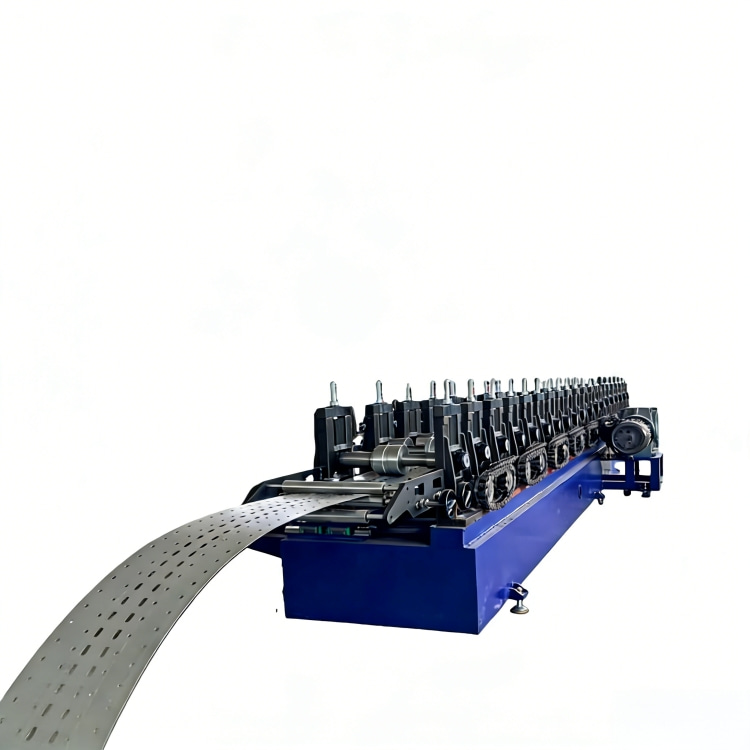

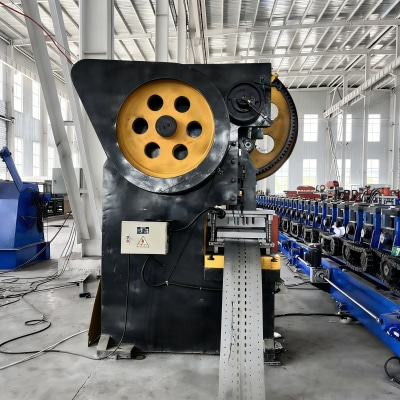

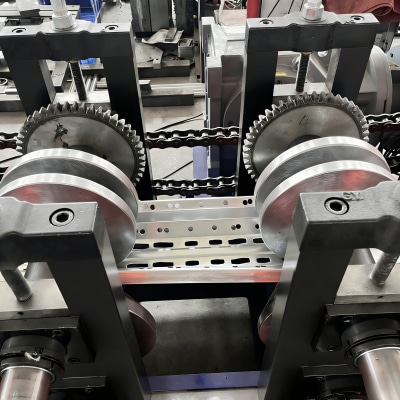

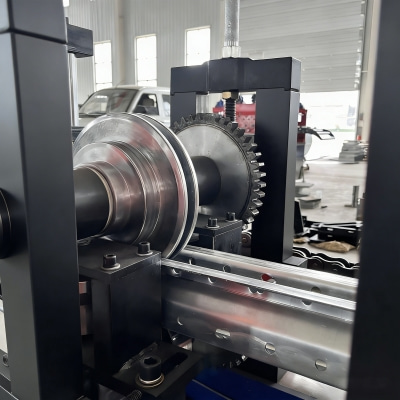

The Upright Roll Forming Machine is a professional equipment tailored for high-precision production of shelf uprights, designed to meet the strict requirements of industrial storage and logistics shelving systems. With its advanced structural design and intelligent control, this machine ensures stable performance, high efficiency, and consistent product quality, making it an ideal choice for shelf manufacturers worldwide.
Crafted to process Q235 Galvanized sheet with a rolling thickness of 2-3mm, it delivers excellent forming accuracy with a forming tolerance of ±0.2mm—a key advantage that ensures the produced uprights fit perfectly with shelf beams, enhancing the overall stability and load-bearing capacity of the storage rack. The production capacity of 10-20 m/min is adjustable or customizable, allowing manufacturers to flexibly adapt to different production scales and delivery requirements, significantly improving production efficiency compared to traditional forming equipment.
Equipped with a PLC control system and a combined operation method of LCD, PLC Program, driver and wireless control, the machine achieves fully automatic operation, reducing human intervention and minimizing operational errors. Every part is equipped with protective devices, featuring a reliable fault diagnosis function that promptly alerts operators to potential issues, ensuring safe and uninterrupted production. The machine operates stably within a working temperature of -30℃ ~ 50℃, adapting to various industrial environments.
|
Item
|
Description &Parameter
|
|
Technical Standards
|
1.GB/T6725-2002《Technical conditions for cold-formed steel》
2.GB/708-88《Dimensions,shapes,weights,and allowable deviations of cold-rolled steel plates and strips》
3.GB/6723-86《Dimensions,shapes,weights,and allowable deviations of general cold-formed open section steel》
|
|
Forming raw material
|
Q235 Galvanized sheet
|
|
Rolling thickness(mm)
|
2-3mm
|
|
Forming dimensions (mm)
|
According to the product drawings
|
|
Feeding width(mm)
|
According to the product drawings
|
|
Production capacity
|
10-20 m/min adjustable or Customization
|
|
Control system
|
PLC
|
|
Forming tolerance (mm)
|
±0.2mm
|
|
Operation mode
|
Combined operation method of LCD,PLC Program,driver and wireless control.
|
|
Automation level
|
Fully automatic
|
|
Fault diagnosis function
|
There are protective devices in every part.
|
|
Working temperature
|
-30℃ ~ 50℃
|
|
Power
|
26KW
|
|
Input voltage
|
380V/50HZ/3PH electricity or Customization
|
|
Dimension(L*W*H)(mm)
|
9800 * 800 * 2940
|
|
Weight(Tons)
|
8.5
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery test report
|
Provided
|
|
Warranty information
|
Three years warranty for the entire machine.
|
Powered by a 26KW motor with an input voltage of 380V/50HZ/3PH electricity (or customizable), it provides strong and stable power support for continuous production. With adimension of 9800 * 800 * 2940mm and a weight of 8.5 Tons, it features a compact structure that saves workshop space while ensuring structural stability. We provide video outgoing-inspection and machinery test report to guarantee product quality, along with a three years warranty for the entire machine, offering customers worry-free after-sales support. This machine is widely used in producing high-precision shelf uprights for industrial warehouses, logistics centers, and heavy-duty storage systems.
