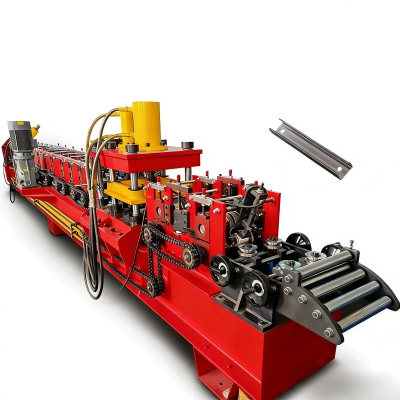

C Bracing Section Roll Forming Machine Rack Bracing Roll Forming Machine

C Bracing Section Roll Forming Machine Rack Bracing Roll Forming Machine

Product Attributes :

Contact Person： XN Duan

Mobile Phone：18832797029

WhatsApp:+86 18832797029

E-mail:yuankuoduan@gmail.com

Add：Zhenggang Road, Industrial Development Zone, Botou City, Hebei Province

Product Description

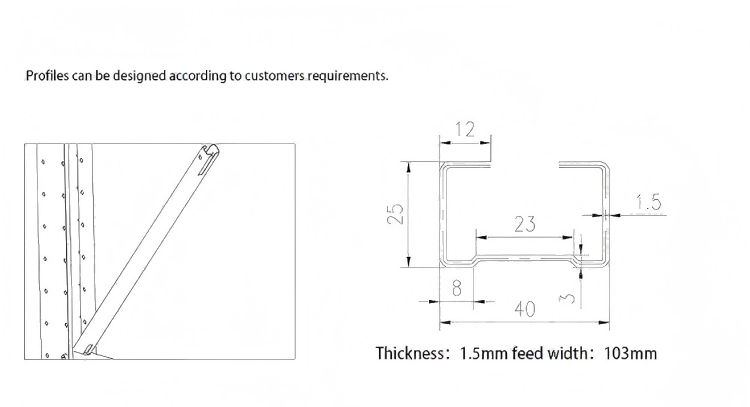

Engineered exclusively for manufacturing high-precision C-shaped uprights for storage rack systems, this rack bracing roll forming machine delivers consistent, reliable performance to meet the rigorous demands of warehouse and logistics infrastructure projects. It supports a versatile range of machinable materials, including Galvanized Coil (1.5-1.8MM thickness, customizable per customer requirements), PPGI, PPGL, Cold-rolled Steel and Carbon Steel, ensuring compatibility with diverse end-product specifications. The machine is optimized for materials with Yield Strength ranging from 250 - 350 Mpa and Tensil Stress between 350 Mpa-500 Mpa, guaranteeing structural integrity of the formed rack uprights.

Boasting a Nominal Forming Speed of 10-15 M/Min (adjustable per user requirements) and around 14 Forming Stations (tailored to profile drawings), it balances efficiency and precision seamlessly. Users can select between a Manual Decoiler as standard or an optional Hydraulic Decoiler to match their production scale. The standard Chain Drive system ensures stable power transmission, with an optional Gearbox Drive available for enhanced torque control. Built with a robust Steel Plates Welded structure, the machine can be upgraded to Cast Iron Stands for superior durability in heavy-duty operations.

C Bracing Section Roll Forming Machine
Machinable Material	A) Galvanized Coil	Thickness(MM):1.5-1.8 as per customer
	B) PPGI,PPGL
	C) Cold-rolled Steel
	D) Carbon Steel
Yield Strength	250 - 350 Mpa
Tensil Stress	350 Mpa-500 Mpa
Nominal Forming Speed(M/Min)	10-15	* Or According To Your Requirment
Forming Station	About 14	* According To Your Profile Drawings
Decoiler	Manual Decoiler	* Hydraulic Decoiler (Optional)
Driving System	Chain Drive	* Gearbox Drive (Optional)
Machine Structure	Steel Plates Welded	* Cast Iron Stands (Optional)
Rollers’ Material	GCr 15	* Cr12Mov (Optional)

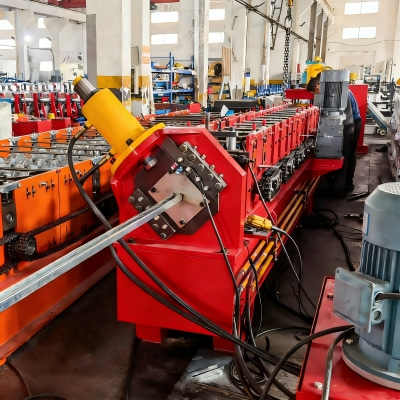

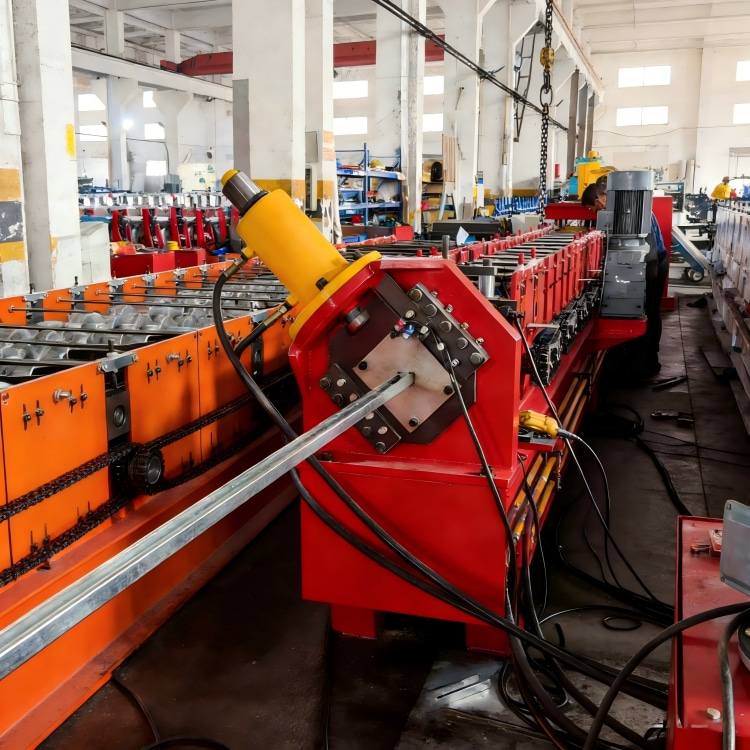

Cutting System	Hydraulic Pre-cut
Punching System	Hydraulic Punching
Frequency Changer Brand	Yaskawa	* Siemens (Optional)
Power Supply	380V 50Hz	* Or According To Your Requirment
Machine Color	Industrial Blue	* Or According To Your Requirment

Rack Bracing Roll Forming Machine

Equipped with GCr 15 rollers as standard (Cr12Mov rollers optional for extended service life), the machine maintains consistent forming accuracy over long production runs. Its integrated Hydraulic Pre-cut System and Hydraulic Punching System enable clean, precise shaping without secondary processing. The Yaskawa frequency changer ensures smooth speed regulation, with Siemens as an alternative option. Configured for 380V 50Hz power supply (customizable) and finished in industrial blue (color customizable), this machine is a versatile solution for rack component manufacturing.
