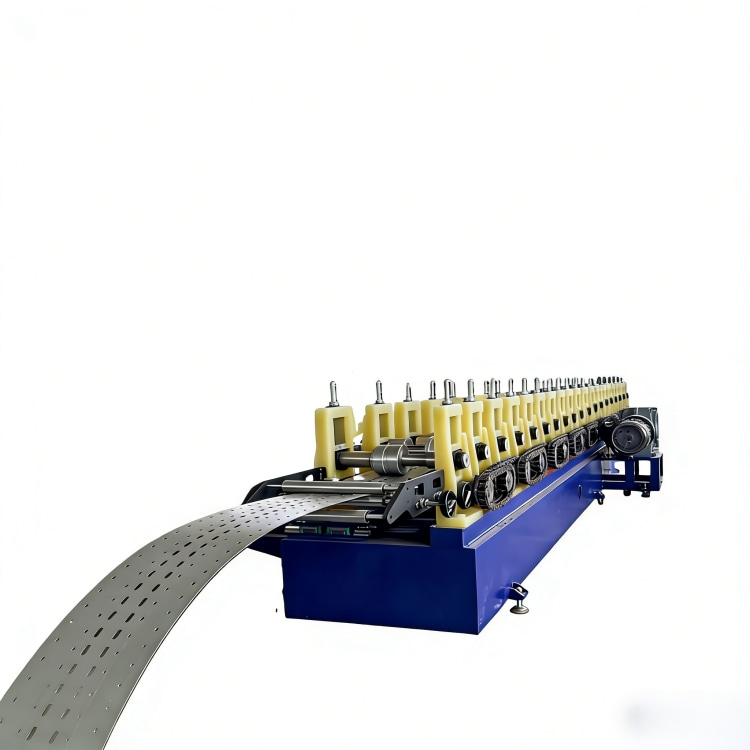

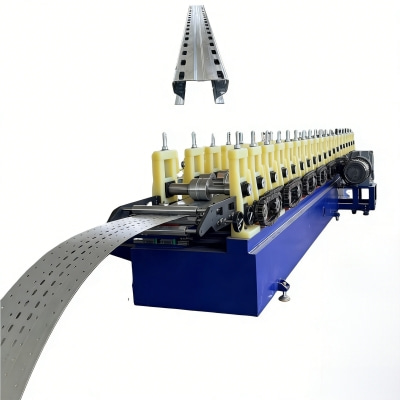

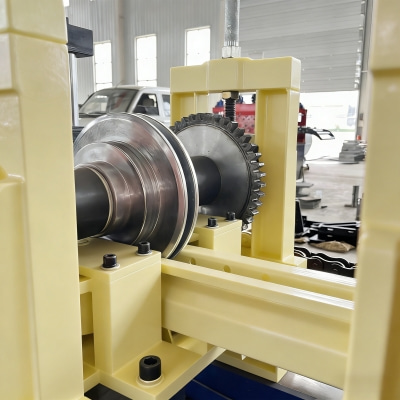

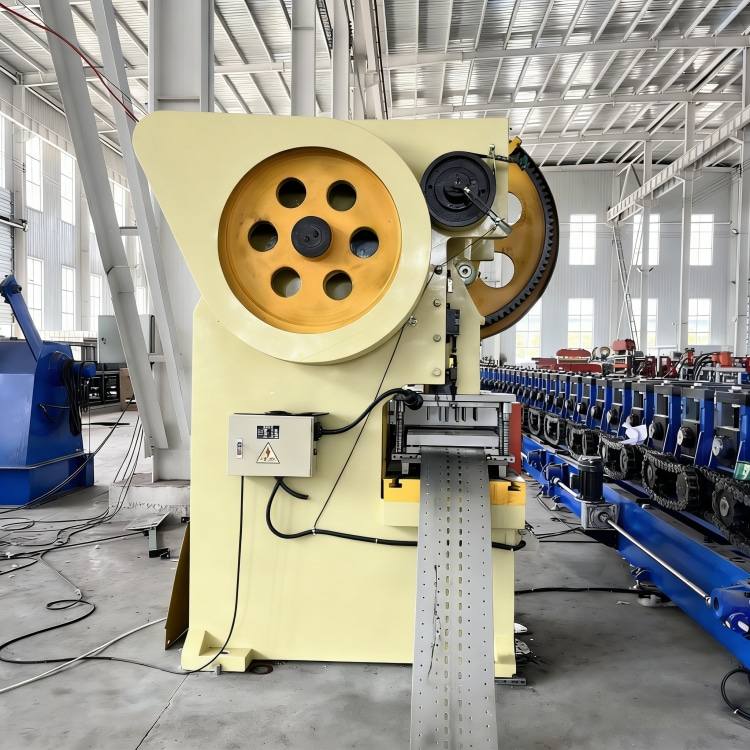

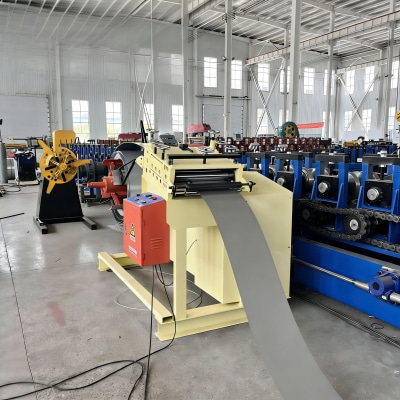

As a flexible and intelligent solution for shelf upright production, the Upright Roll Forming Machine stands out with its customizable configurations and versatile adaptability, perfectly fitting the personalized needs of global shelf manufacturers. Whether for standard or non-standard shelf uprights, this machine can be tailored to meet diverse production requirements, delivering high-quality products efficiently.

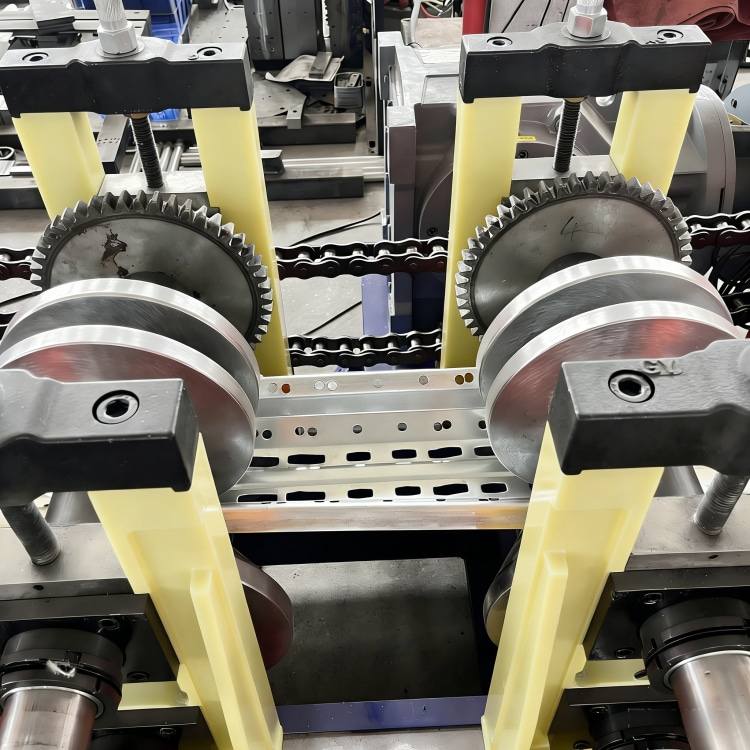

The machine is specialized in processing Q235 Galvanized sheet, a high-quality material known for its corrosion resistance and structural strength, suitable for long-term use in various storage environments. It supports a rolling thickness of 2-3mm and can be adjusted according to specific product needs. The forming dimensions and feeding width are fully customizable according to the product drawings, allowing manufacturers to produce uprights of different sizes and specifications without replacing core components, reducing production costs and improving flexibility.
|
Item
|
Description &Parameter
|
|
Technical Standards
|
1.GB/T6725-2002《Technical conditions for cold-formed steel》
2.GB/708-88《Dimensions,shapes,weights,and allowable deviations of cold-rolled steel plates and strips》
3.GB/6723-86《Dimensions,shapes,weights,and allowable deviations of general cold-formed open section steel》
|
|
Forming raw material
|
Q235 Galvanized sheet
|
|
Rolling thickness(mm)
|
2-3mm
|
|
Forming dimensions (mm)
|
According to the product drawings
|
|
Feeding width(mm)
|
According to the product drawings
|
|
Production capacity
|
10-20 m/min adjustable or Customization
|
|
Control system
|
PLC
|
|
Forming tolerance (mm)
|
±0.2mm
|
|
Operation mode
|
Combined operation method of LCD,PLC Program,driver and wireless control.
|
|
Automation level
|
Fully automatic
|
|
Fault diagnosis function
|
There are protective devices in every part.
|
|
Working temperature
|
-30℃ ~ 50℃
|
|
Power
|
26KW
|
|
Input voltage
|
380V/50HZ/3PH electricity or Customization
|
|
Dimension(L*W*H)(mm)
|
9800 * 800 * 2940
|
|
Weight(Tons)
|
8.5
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery test report
|
Provided
|
|
Warranty information
|
Three years warranty for the entire machine.
|

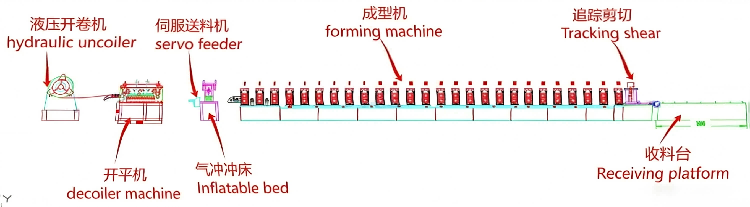

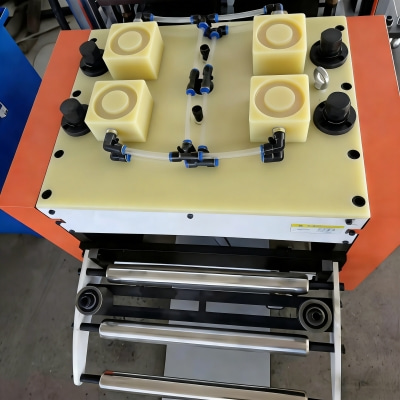

With a production capacity of 10-20 m/min (adjustable or customizable), it balances speed and precision, ensuring efficient production while maintaining strict quality standards. The PLC control system integrates with an LCD display, driver, and wireless control, enabling operators to easily set parameters, monitor production status, and control the machine remotely—simplifying operation and improving work efficiency. The fully automatic operation mode and fault diagnosis function (with protective devices in every part) ensure safe, stable, and error-free production.
Powered by a 26KW high-efficiency motor, the machine operates with stable power, and the input voltage is customizable to adapt to different regional power supply standards. Its dimension of 9800 * 800 * 2940mm and weight of 8.5 Tons make it easy to install and integrate into existing production lines. We provide video outgoing-inspection and machinery test report to verify product quality, and a three years warranty for the entire machine ensures long-term reliable use. This machine is ideal for producing customized shelf uprights for commercial supermarkets, intelligent logistics racks, and special-purpose storage systems.
