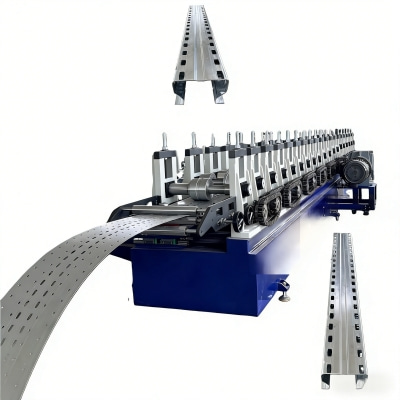

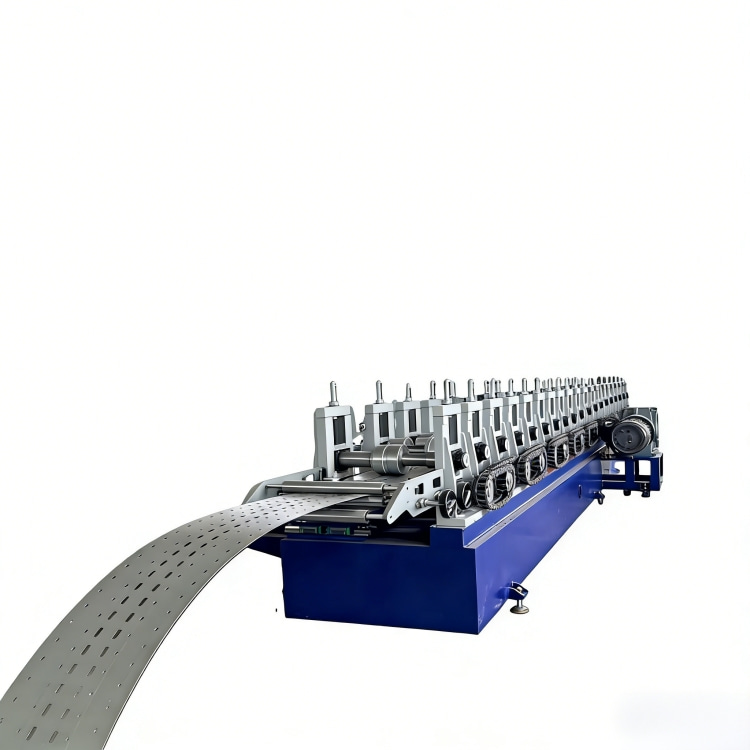

The Upright Roll Forming Machine adheres to high-quality standards in every detail, from component selection to production testing, ensuring consistent performance and reliable product quality. With comprehensive after-sales support, this machine provides customers with a worry-free user experience, making it a trusted choice for global shelf manufacturers.
It processes Q235 Galvanized sheet with a rolling thickness of 2-3mm, ensuring the produced shelf uprights have excellent structural strength and corrosion resistance, suitable for long-term use in various storage environments. The forming tolerance of ±0.2mm guarantees precise shaping, ensuring the uprights fit perfectly with shelf beams and other components, enhancing the overall stability of the storage rack. The production capacity of 10-20 m/min is adjustable or customizable, allowing manufacturers to optimize production efficiency according to their needs.
|
Item
|
Description &Parameter
|
|
Technical Standards
|
1.GB/T6725-2002《Technical conditions for cold-formed steel》
2.GB/708-88《Dimensions,shapes,weights,and allowable deviations of cold-rolled steel plates and strips》
3.GB/6723-86《Dimensions,shapes,weights,and allowable deviations of general cold-formed open section steel》
|
|
Forming raw material
|
Q235 Galvanized sheet
|
|
Rolling thickness(mm)
|
2-3mm
|
|
Forming dimensions (mm)
|
According to the product drawings
|
|
Feeding width(mm)
|
According to the product drawings
|
|
Production capacity
|
10-20 m/min adjustable or Customization
|
|
Control system
|
PLC
|
|
Forming tolerance (mm)
|
±0.2mm
|
|
Operation mode
|
Combined operation method of LCD,PLC Program,driver and wireless control.
|
|
Automation level
|
Fully automatic
|
|
Fault diagnosis function
|
There are protective devices in every part.
|
|
Working temperature
|
-30℃ ~ 50℃
|
|
Power
|
26KW
|
|
Input voltage
|
380V/50HZ/3PH electricity or Customization
|
|
Dimension(L*W*H)(mm)
|
9800 * 800 * 2940
|
|
Weight(Tons)
|
8.5
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery test report
|
Provided
|
|
Warranty information
|
Three years warranty for the entire machine.
|
Equipped with a PLC control system and a combined operation method of LCD, PLC Program, driver and wireless control, the machine achieves fully automatic operation, reducing labor costs and operational errors. The fault diagnosis function, with protective devices in every part, ensures safe and stable production, preventing potential accidents and production interruptions. The machine’s working temperature range of -30℃ ~ 50℃ allows it to operate stably in various industrial environments, ensuring year-round production.
Powered by a 26KW high-efficiency motor with input voltage of 380V/50HZ/3PH electricity (or customizable), it provides stable power output for continuous production. With a dimension of 9800 * 800 * 2940mm and weight of 8.5 Tons, it features a sturdy structure that ensures long-term durability. We provide video outgoing-inspection and machinery test report to verify product quality before delivery, and a three years warranty for the entire machine covers all components, including free maintenance and replacement of faulty parts. This machine is ideal for producing high-standard shelf uprights for intelligent warehouses, high-end commercial facilities, and large-scale logistics centers.
