Product Overview
This machine is an economic and durable option for C-type shelf upright production, featuring solid structure, wear-resistant components and easy operation. It balances production efficiency and cost control, ideal for small and medium-sized storage equipment manufacturers.
Core Technical Specifications
Machinable Material: Galvanized Coil, PPGI, PPGL, Cold-rolled Steel, Carbon Steel (Thickness: 1.5-1.8 mm as per customer)
Yield Strength: 250 - 350 Mpa; Tensil Stress: 350 Mpa-500 Mpa
Nominal Forming Speed: 10-15 m/min (or according to requirement); Forming Station: About 14 (according to profile drawings)
Decoiler: Manual Decoiler (Hydraulic Decoiler optional); Driving System: Chain Drive (Gearbox Drive optional)
Machine Structure: Steel Plates Welded (Cast Iron Stands optional); Rollers’ Material: GCr 15 (Cr12Mov optional)
Cutting System: Hydraulic Pre-cut; Punching System: Hydraulic Punching
Frequency Changer Brand: Yaskawa (Siemens optional); Power Supply: 380V 50Hz (or according to requirement)
|

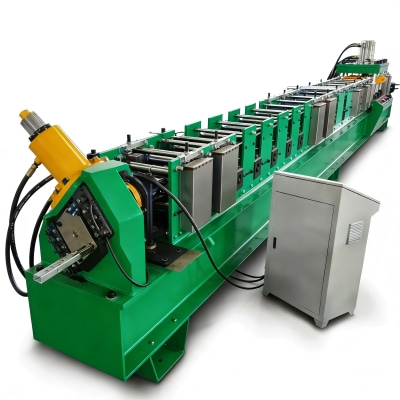

C Bracing Section Roll Forming Machine
|
|
Machinable Material
|
A) Galvanized Coil
|
Thickness(MM):1.5-1.8 as per customer
|
|
|
B) PPGI,PPGL
|
|
|
|
C) Cold-rolled Steel
|
|
|
|
D) Carbon Steel
|
|
|
Yield Strength
|
250 - 350 Mpa
|
|
Tensil Stress
|
350 Mpa-500 Mpa
|
|
Nominal Forming Speed(M/Min)
|
10-15
|
* Or According To Your Requirment
|
|

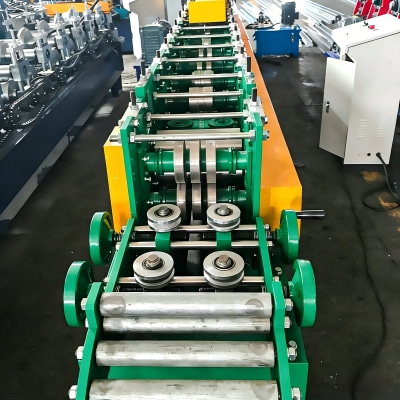

Forming Station
|
About 14
|
* According To Your Profile Drawings
|
|

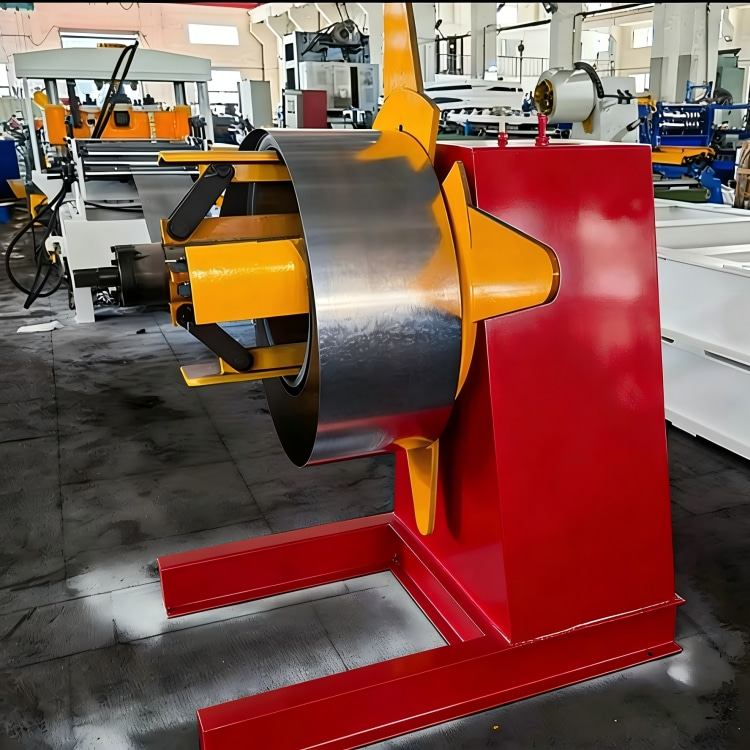

Decoiler
|
Manual Decoiler
|
* Hydraulic Decoiler (Optional)
|
|
Driving System
|
Chain Drive
|
* Gearbox Drive (Optional)
|
|
Machine Structure
|
Steel Plates Welded
|
* Cast Iron Stands (Optional)
|
|
Rollers’ Material
|
GCr 15
|
* Cr12Mov (Optional)
|
|

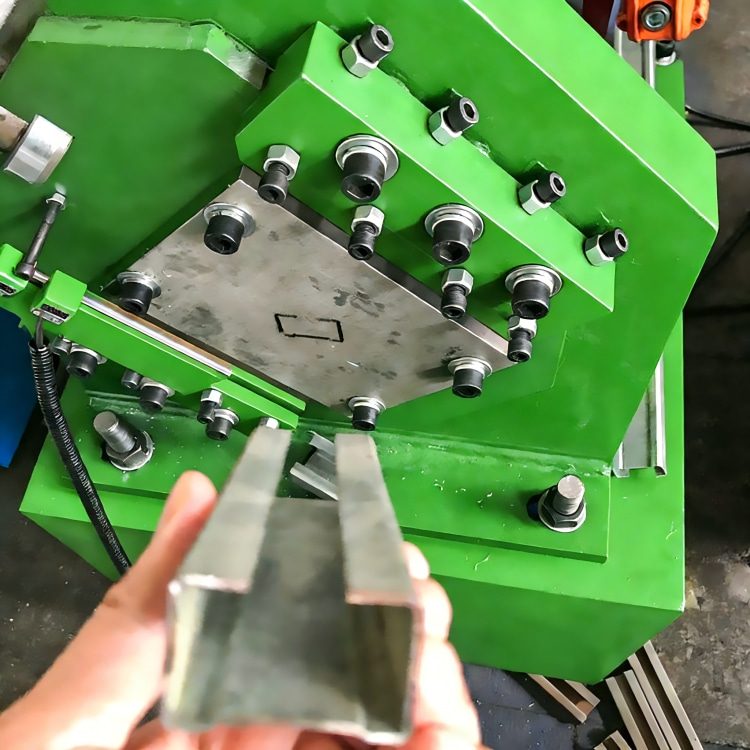

Cutting System
|
Hydraulic Pre-cut
|
|

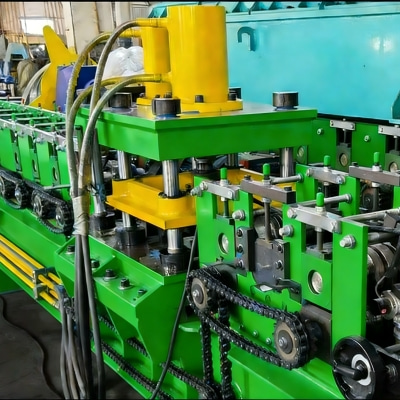

Punching System
|
Hydraulic Punching
|
|
Frequency Changer Brand
|
Yaskawa
|
* Siemens (Optional)
|
|
Power Supply
|
380V 50Hz
|
* Or According To Your Requirment
|
|
Machine Color
|
Industrial Blue
|
* Or According To Your Requirment
|
Key Product Advantages
1. Durable Structure: Steel plates welded structure and GCr15 rollers ensure excellent wear resistance and structural stability, reducing maintenance frequency and extending service life.
2. Easy Operation & Low Cost: Simple manual decoiler and intuitive operation interface reduce training costs, while reliable components lower maintenance and replacement expenses.
3. Stable Efficiency: 10-15 m/min forming speed and integrated hydraulic cutting/punching systems ensure continuous production and stable output quality.
Quality & Safety Assurance
Strict pre-delivery inspection and safety protection devices ensure operational safety. The machine complies with international industrial standards, meeting mass production quality consistency requirements.
Global Service Support
Provide global logistics, on-site installation by professional engineers, 24/7 online technical assistance and affordable accessory supply, reducing customer operational risks and costs.
Typical Applications
Widely applied in mass production of C-type uprights for commercial chain store shelves, daily necessities storage racks, small-sized warehouse shelving and light-duty logistics racks.
