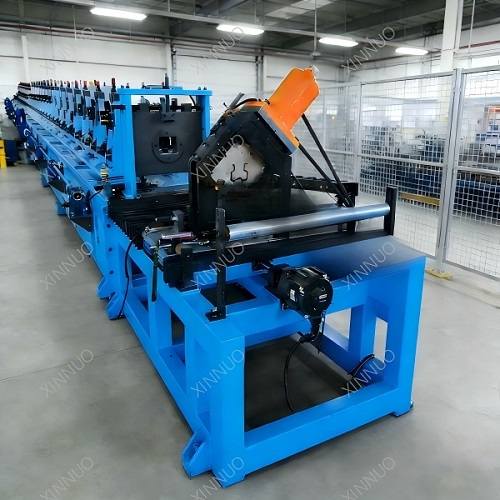

storage upright shelf roll forming machine

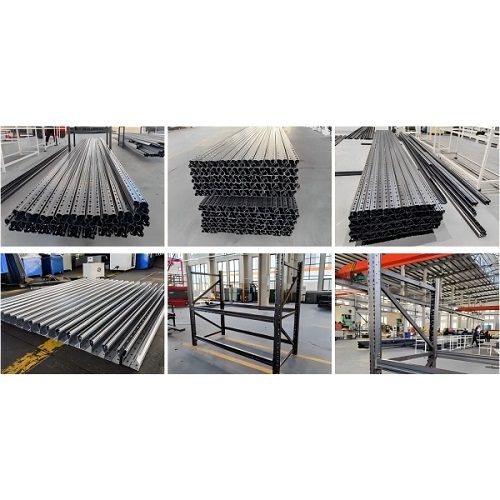

Warehouse shelf upright roll forming machine also named Pallet Racking Roll Forming Machine (s) is developed to produce upright frame / upright racks.

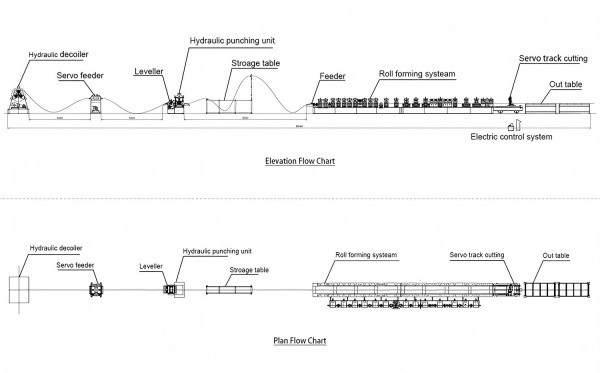

Our intelligent roll forming machine could make various sizes of upright with thickness 1.5-3.0mm. Uncoiling, servo feeding, punching, roll forming, cutting etc process can be automatically realized on one line. Meantime, we have the roll forming machine to make box beam, step beam and shelf panels. All these are components of Pallet racking system.

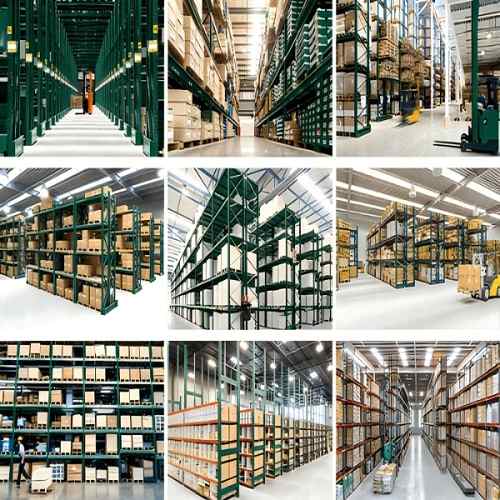

Pallet racking is a cost-effective solution for storing palletized goods. Consisting of separate frames and beams that are available in a huge range of sizes, and secured with locking pins, Pallet Racking is easily configured to your needs whether led by pallet size or forklift type.

In warehouse pallet racking system, we are able to manufacture more machines like Box beam roll forming machine, step beam roll forming machine and shelf panel (box plate) roll forming machine etc.

We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your all requirements. Whichever line you choose, the quality of SUNWAY Machinery will ensure you obtain perfectly functional profiles.

what is upright roll forming machine?

An upright roll forming machine is a type of industrial machinery used in the metalworking industry for shaping and forming continuous metal strips into desired profiles. It is commonly used for producing structural components with a consistent cross-section, such as beams, channels, and panels.

The machine operates by passing the metal strip through a series of adjustable rollers arranged vertically. Each roller set is designed to gradually shape the strip by bending it to a specific contour. The rollers are positioned in a sequential order, with each set performing a specific bending or forming operation. As the metal strip passes through the machine, it undergoes a continuous shaping process until it reaches the desired profile.

Upright roll forming machines are known for their efficiency, accuracy, and high production rates. They are capable of handling various types of metals, including steel, aluminum, and stainless steel, with different thicknesses and widths. These machines are widely used in industries such as construction, automotive, aerospace, and manufacturing, where precise and consistent metal profiles are required for different applications.
