Customization Flexibility & Personalized Production Solution Focus

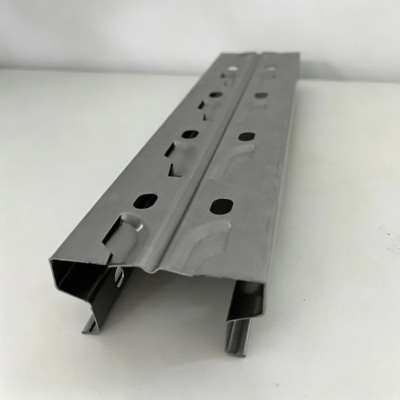

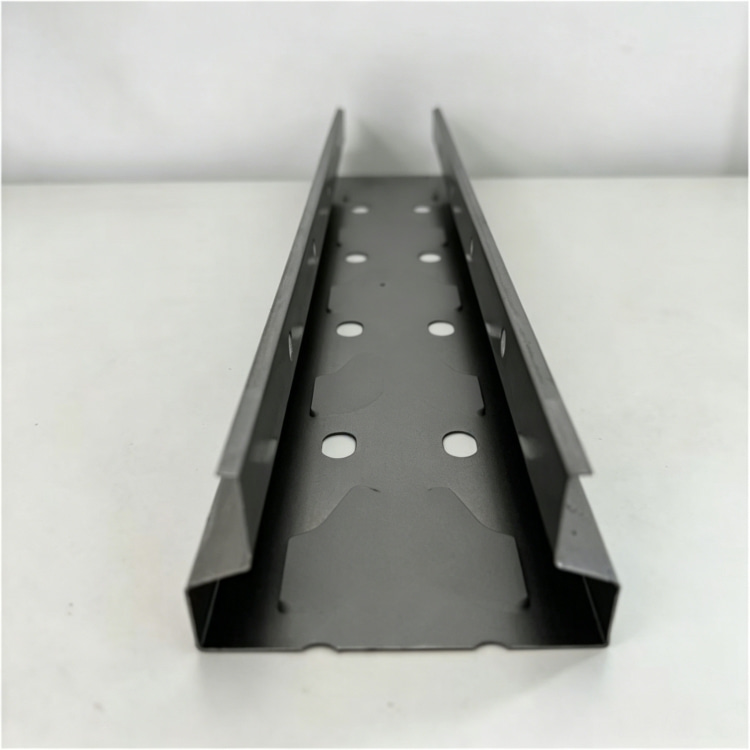

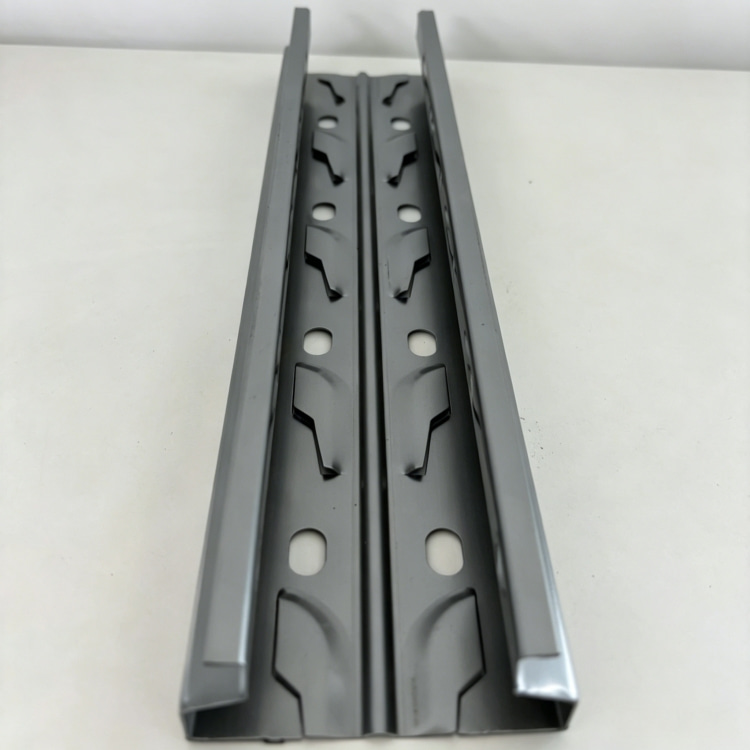

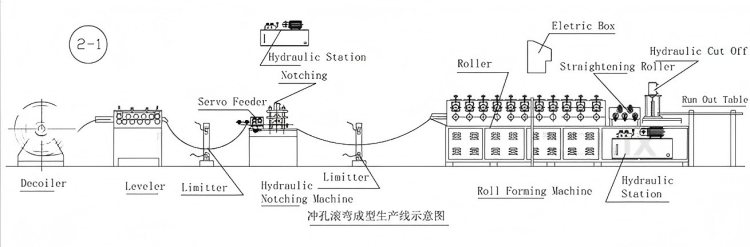

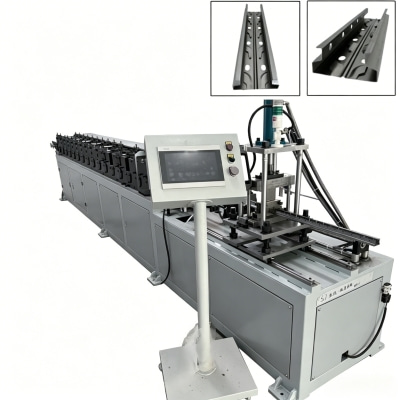

Positioned as a highly customizable modular cold forming production solution for diversified light-duty shelving design requirements, Xinnuo’s Butterfly Holes Upright Roll Forming Machine reserves abundant personalized modification space across punching mold layout, forming roller outline and partial module configuration, enabling flexible adjustment to match clients’ proprietary shelving blueprint specifications while retaining core automatic five-in-one production flow (decolling-leveling-punching-forming-cutting) and top running speed of 20 meters per minute, helping shelving manufacturers develop differentiated proprietary butterfly hole upright products to capture segmented niche storage equipment market share. The base version machine is preset with dual-set standard 60*35mm Cr12MOV butterfly hole punching molds (HRC60~62° hardness, driven by5.5KW hydraulic motor) for mainstream regular butterfly hole upright fabrication targeting 150KG max single-layer load shelves; upon client’s customized demand, Xinnuo’s mold workshop can reprocess Cr12MOV mold blanks to alter butterfly hole aperture size, hole spacing layout or partial additional auxiliary small round hole stamping function, transforming the punching station to produce multi-hole composite upright profiles without revamping whole hydraulic power structure of punching unit.

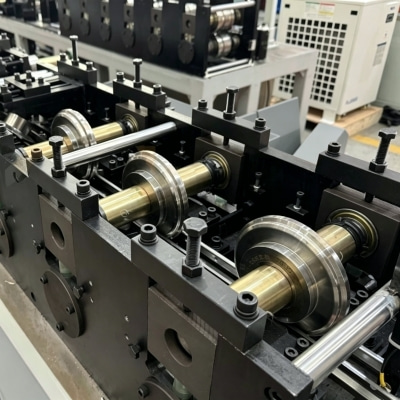

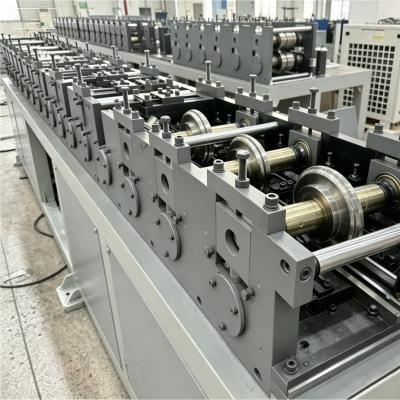

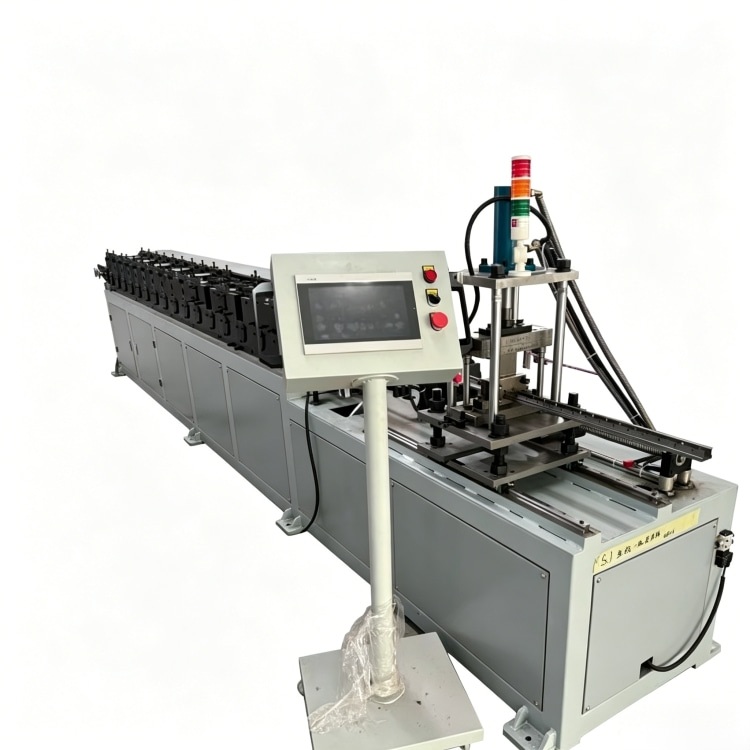

Central forming section consists of 20 groups customizable GCr15 forming rollers (HRC57-59°+mirror polishing)+5 straightening rollers, all roller seats adopt spacer-based width adjustment design, Xinnuo’s technical engineers can change roller outer contour curvature or adjust forming station spacing according to client’s target upright cross-section drawing, realizing production of non-standard C-type, U-type or special folded-edge upright variants on same production line; attached circulating water cooling system retains independent pipeline layout to adapt customized roller layout’s heat dissipation requirement without extra pipeline reconstruction cost. Applicable raw material baseline specification locks at 1.2~1.5mm cold rolled/galvanized steel, for clients needing to expand thin material processing range slightly, Xinnuo can adjust decoller’s feeding tension spring stiffness and leveler’s roller gap spacing to accommodate minor thickness fluctuation within customized scope without replacing whole decoller and leveler assembly; the base decoller supports standard parameters: max coil weight3000kgs, outer diameter1400mm, inner diameter460~520mm, fixed 500mm coil width, customized wider coil width demand can be realized via decoller reel shaft length modification.
Features &Specification
|
Parament
|
Specification
|
|
Suitable material
|
HCR Coil / Carbon Steel Coil,GI Coil
|
|
Material Thickness
|
1.2-1.5mm
|
|
Working speed
|
1~20m/min
|
|
Profile
|
60/80*35mm
|
Terminal hydraulic cut-off unit with 4KW independent hydraulic station and Cr12MOV cutting dies (HRC57-59° stop-then-cut mode) supports customized fixed-length cutting tolerance adjustment; for clients requiring stricter finished upright length precision below 0.3mm tolerance (base standard ≤0.5mm), Xinnuo can upgrade mechanical baffle positioning structure to servo-driven length positioning module to boost cutting accuracy correspondingly. Full machine’s Schneider-component-based control system under 380V/50HZ/3PH power supply reserves extra program storage space on control board, facilitating later parameter addition for newly customized production specifications via simple program upgrade instead of whole control cabinet replacement. Xinnuo’s after-sales system includes 1-year basic warranty on standard frame, dies and core electric parts, customized modified spare parts follow negotiated warranty clause according to personalized transformation content. Apart from finished upright for conventional household and supermarket shelves with 150KG layer load, customized modified equipment can produce uprights for specialized uses including mobile tool trolley frames, small warehouse movable partition racks and exhibition booth lightweight supporting frames, broadening client’s finished product downstream application fields and market profit sources significantly.
