Global After-Sales Service & Cross-Border Project Matching Focus

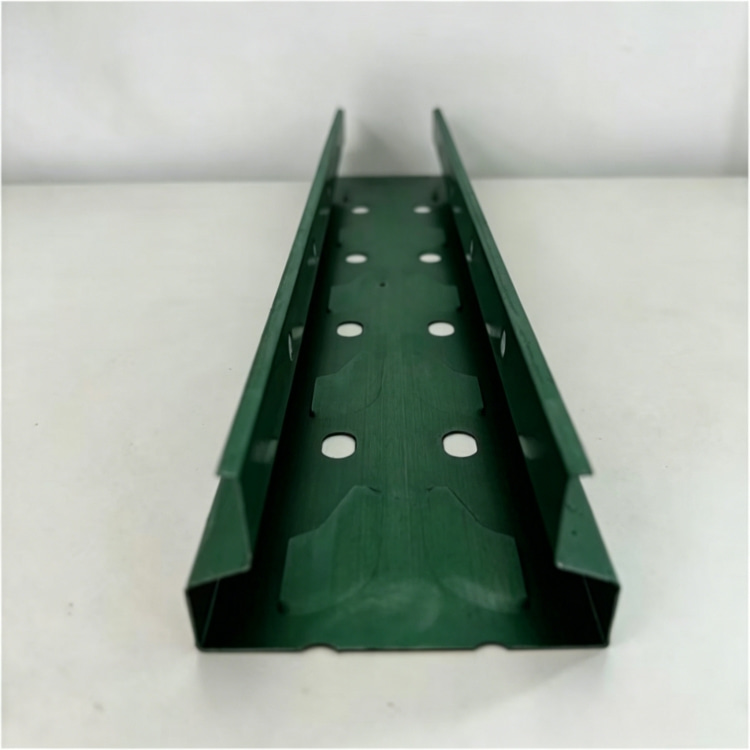

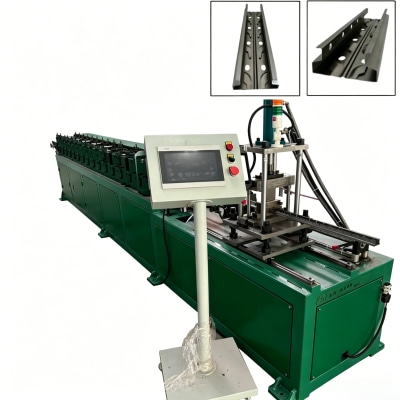

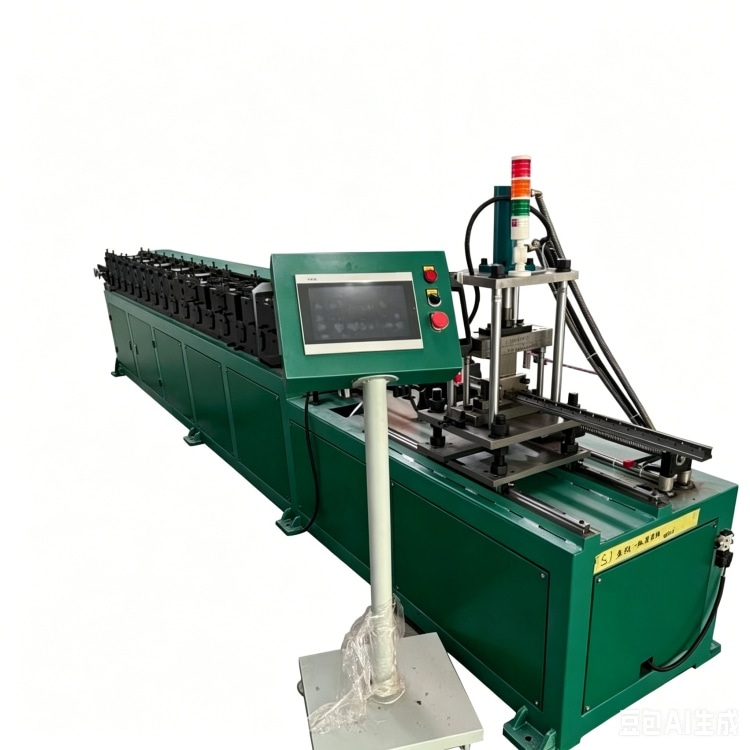

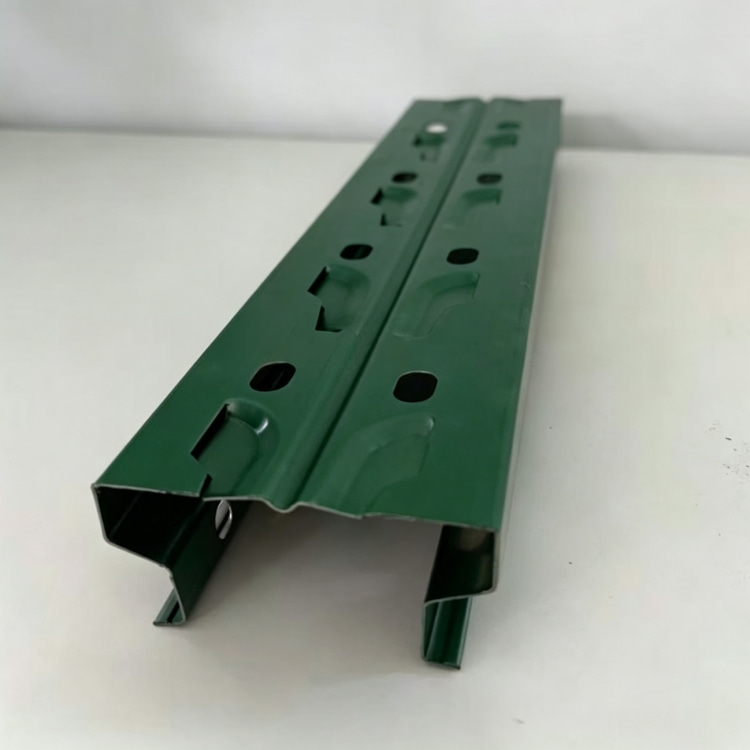

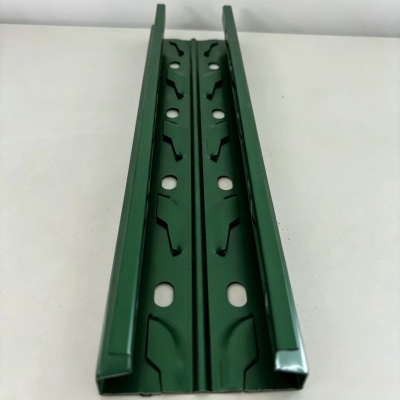

Tailored to satisfy global shelving manufacturers’ cross-border procurement and localized after-sales service demands across Europe, Southeast Asia, Middle East and South America markets, Xinnuo’s Butterfly Holes Upright Roll Forming Machine is designed to match international standard power specification and global spare part supply system alongside standardized multi-lingual after-sales technical support, becoming reliable core production equipment for numerous cross-border light-duty storage rack export factories producing bolt-free butterfly hole uprights with max 150KG single-layer shelf load and applicable raw material thickness of 1.2~1.5mm cold rolled/galvanized steel. The whole machine’s base power configuration adopts universal industrial 380V/50HZ/3PH power supply specification widely popular across most global industrial countries, core control electrical components all select globally circulated authentic Schneider brand spare parts which can be conveniently sourced from local industrial component dealers in client’s destination country, eliminating long-distance international emergency spare part air freight delay risk caused by sudden electrical component breakdown during overseas factory production; all key wear parts including Cr12MOV punching/cutting dies (punch mold HRC60~62°, cut mold HRC57-59°) and GCr15 forming rollers (20 groups+HRC57-59°+mirror polish) are produced per international standard size dimension, facilitating client’s local third-party mold processing factory to make alternative spare molds when needed besides Xinnuo’s original spare part supply channel.
Standard matched decoller parameter (max coil weight3000kgs, outer diameter1400mm, inner diameter460~520mm, fixed coil width500mm) conforms to mainstream global steel coil packaging and transportation dimension norm for thin-gauge shelving steel, enabling clients to purchase locally sourced standard steel coils without special customized coil production from steel mills; machine’s top production speed of 20 meters per minute meets both small-batch trial production for new market product development and large-volume mass export order fulfillment for mature overseas shelf brands flexibly via transducer-based stepless speed adjustment on Schneider control system. Xinnuo’s global after-sales framework establishes multi-time-zone online technical support team proficient in English and multiple mainstream regional business languages, providing remote real-time equipment fault diagnosis, parameter adjustment guidance and daily maintenance consultation via video call for overseas clients anytime across different global time zones.
Features &Specification
|
Parament
|
Specification
|
|
Suitable material
|
HCR Coil / Carbon Steel Coil,GI Coil
|
|
Material Thickness
|
1.2-1.5mm
|
|
Working speed
|
1~20m/min
|
|
Profile
|
60/80*35mm
|
The official standardized 1-year global warranty policy covers machine main frame, all forming/punching/cutting dies and core Schneider electric accessories for all cross-border shipped equipment; within valid warranty period, Xinnuo arranges free original spare part delivery via international logistics for normally damaged standard components, coordinating with local overseas agent to complete on-site replacement guidance if necessary. For clients from regions with unique local shelving industry standard requiring non-standard butterfly hole layout or upright cross-section dimension, Xinnuo’s overseas engineering department completes personalized mold and roller customization design before production shipment according to local market’s shelf specification norm, ensuring finished uprights comply with target country’s storage rack safety standard and assembly habit. Besides conventional household and supermarket shelf production, many overseas clients deploy this customized machine to manufacture display rack uprights for chain retail brands, export small warehouse storage system accessories and movable logistics cart frames, Xinnuo also provides pre-shipment full machine trial run video inspection service for cross-border buyers to verify production quality before container loading and international ocean transportation, reducing post-arrival equipment abnormality risk at destination port.
