Reliability and durability are at the heart of the Shelf Rack Roll Forming Machine, designed to withstand the rigors of continuous industrial operation and deliver consistent performance year after year. Its heavy-duty frame is constructed from high-strength steel, welded using advanced techniques to ensure structural integrity and resistance to deformation, even under heavy loads and high-speed operation. All critical components, including the forming rolls, shafts, and gears, are made from high-quality alloy steel and treated with heat treatment to enhance wear resistance and extend service life, reducing maintenance costs and downtime.

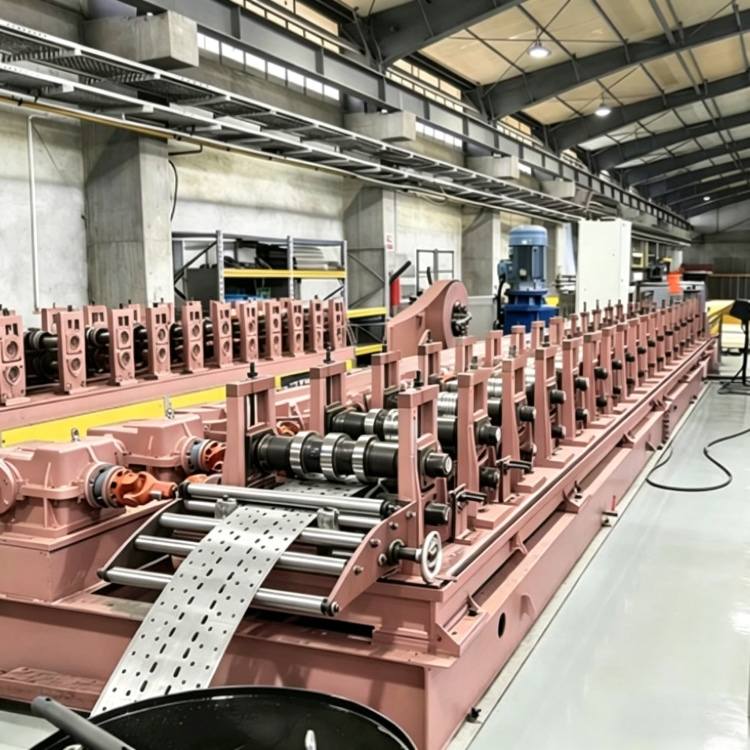

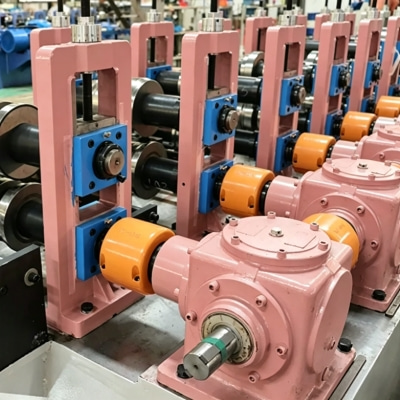

The machine’s PLC control system is equipped with self-diagnostic functions, which can quickly detect and alert operators to potential issues, such as material jams, tool wear, or parameter errors, allowing for timely troubleshooting and minimizing production interruptions. The automatic lubrication system ensures that all moving parts are properly lubricated at regular intervals, reducing friction and wear, and extending the machine’s service life. The forming rolls, numbering 12 to 20, are designed with precision to ensure consistent forming quality, while the servo-driven feeding system maintains stable material advance, even when processing thicker materials up to 3.5 mm in thickness.
|
Parameter
|
Specification
|
|
Machine Type
|
Shelf Rack Roll Forming Machine
|
|
Material Thickness
|
1.0 ~ 3.5 mm
|
|
Material Width
|
50 ~ 250 mm
|
|
Forming Stations
|
12 ~ 20 stations
|
|
Max Forming Speed
|
10 ~ 18 m/min
|
|
Decoiler
|
Manual / Hydraulic / Motorized
|
|
Cutting Method
|
Flying Cut / Hydraulic Shear
|
|
Drive System
|
Electric / PLC Control
|
|
Power
|
20 ~ 35 kW
|
|
Machine Dimensions (L×W×H)
|
10–14 m × 1.5 m × 1.8 m
|
|
Machine Weight
|
7 ~ 14 tons
|
|
Tolerance
|
±1 mm
|
|
Suitable Material
|
Cold Rolled Steel / Galvanized Steel
|
|
Optional Features
|
Automatic Punching,Stacking,Labeling
|

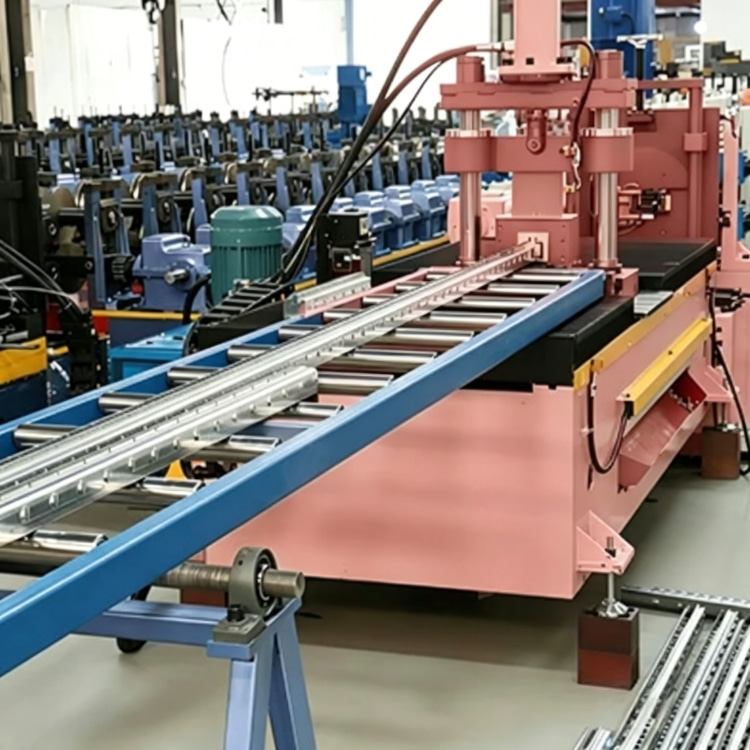

The machine’s cutting system is built to last, with high-quality blades that can withstand repeated use and deliver clean, accurate cuts with a tolerance of ±1 mm. The power system, with a range of 20 kW to 35 kW, is designed for energy efficiency and reliability, ensuring stable performance even during long production runs. The machine’s overall design prioritizes ease of maintenance, with accessible components and clear instructions, allowing operators to perform routine maintenance tasks quickly and efficiently. Whether used in small workshops or large manufacturing facilities, this Shelf Rack Roll Forming Machine offers the reliability and durability needed to keep production running smoothly and meet the demands of the storage system market.
