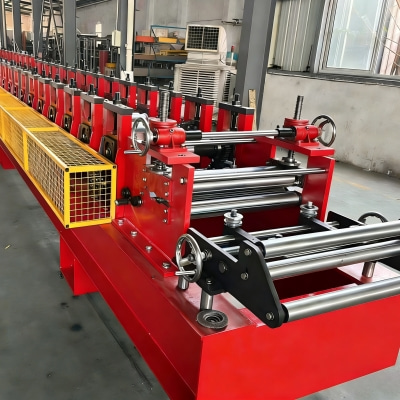

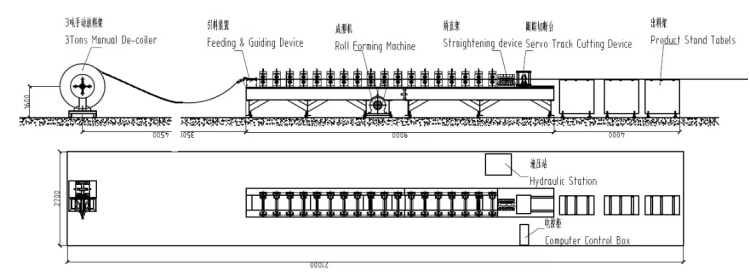

Product Overview

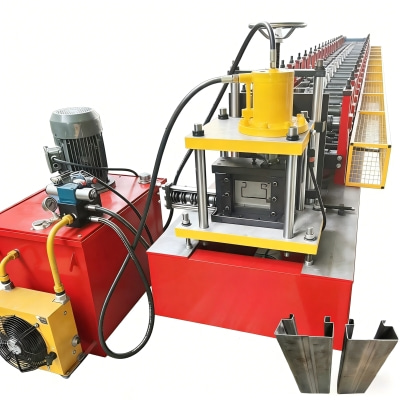

The Upright Racking Roll Forming Line is a high-performance and efficient production equipment for upright rack columns. Integrating advanced mechanical design and intelligent control technology, it realizes the full-automatic production process from raw material uncoiling to finished product cutting. With the advantages of high production efficiency, simple operation, and low maintenance cost, it is an ideal choice for storage rack manufacturers pursuing cost-effective and high-quality production.
Core Technical Specifications
-
Raw material: Cold-rolled steel, Galvanized steel (optional stainless / color-coated steel)
-
Material thickness: 1.5 – 3.0 mm
-
Roller material: GCr15 (or optional Cr12) alloy steel, heat treated (quenched / hardened)
-
Roller hardness: HRC 58 – 62° (depending on heat treatment)
-
Number of forming stations: 16 – 28 stations (profile dependent)
-
Forming (line) speed: 5 – 15 m/min (depending on profile & configuration)
-

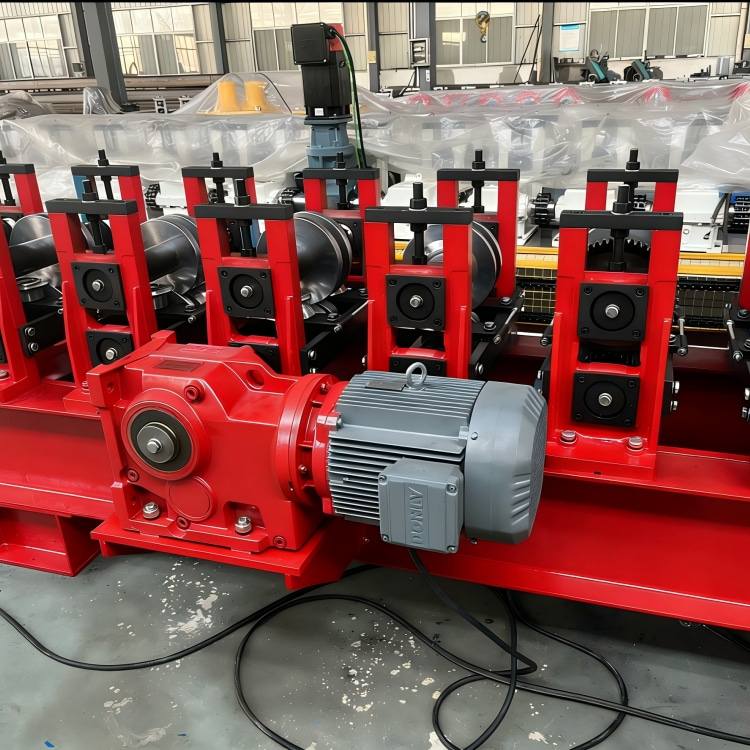

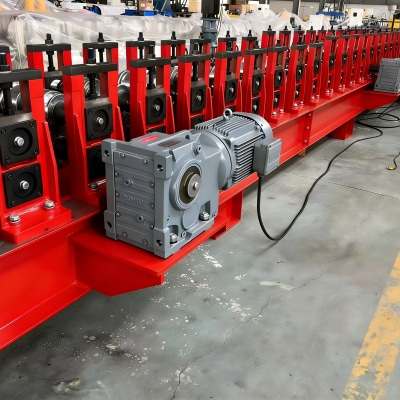

Main motor power:15 – 22 kW (depending on model)
-

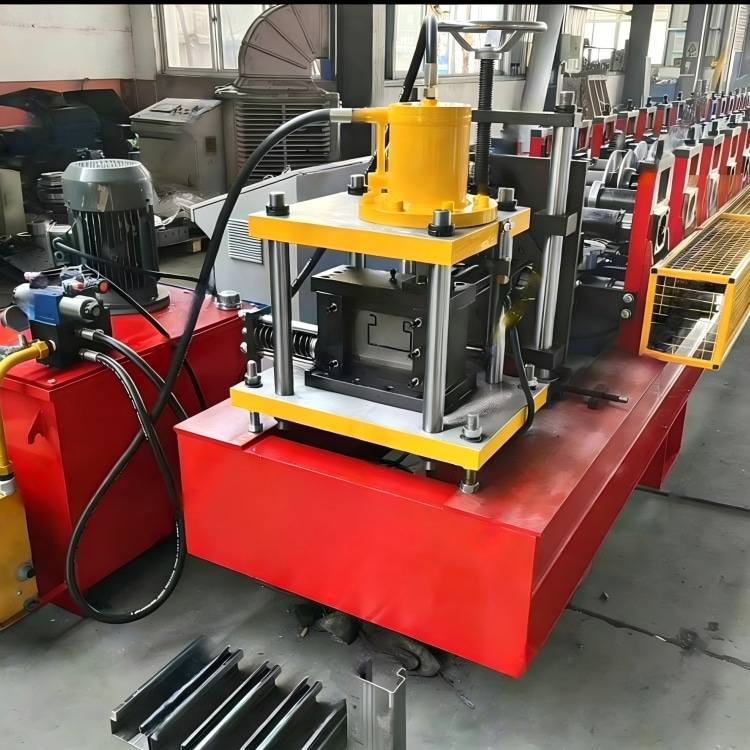

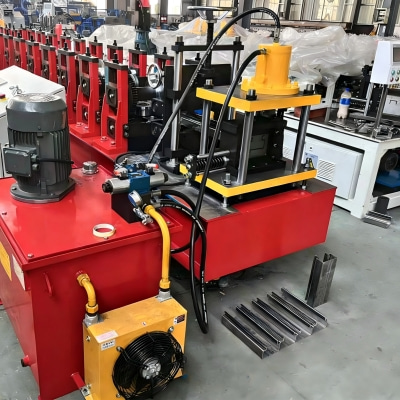

Cutting / Shearing system: Hydraulic cutting (or saw-cut); cutting blades made of heat-treated Cr12 / Cr12MoV
-
Control system: PLC control (Siemens / Panasonic / Delta optional) — supports automatic forming, punching, cutting, length & quantity control
-
Decoiler: Manual or hydraulic decoiler (capacity configurable, e.g. 3t–5t)
-
Material width: As per customer’s profile drawing / specification
-

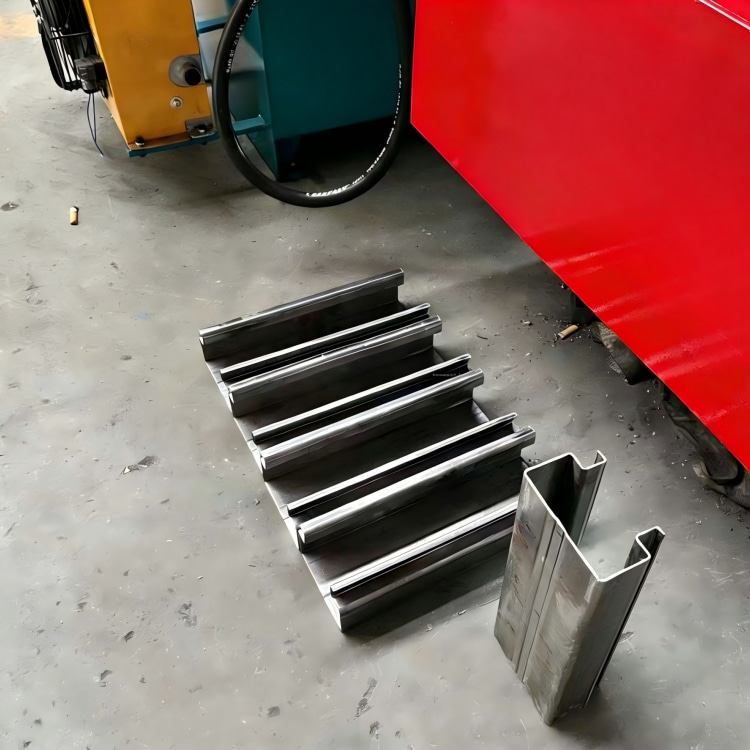

Profile types: Upright rack columns / shelf upright posts / pallet rack uprights / warehouse shelving uprights
-
Power supply / Voltage: 380 V, 50 Hz, three-phase (customizable per customer requirement)
Key Product Advantages
1. High-Efficiency Mass Production: The integrated workflow and adjustable forming speed of 5-15 m/min enable the line to complete large-batch production tasks efficiently, significantly reducing production cycle and labor cost.
2. User-Friendly Operation: Equipped with a humanized PLC control interface, which is intuitive and easy to learn. Operators can master the operation within a short time, reducing training costs and human errors.
3. Easy Maintenance & Low Cost: The line structure is scientific and reasonable, with easily accessible components for maintenance. The long service life of core components and low failure rate effectively reduce the overall operation cost for customers.
Quality & Safety Assurance
All parts are strictly inspected and tested before leaving the factory, complying with international safety and quality standards. The comprehensive safety protection system and real-time fault monitoring function ensure the safety of operators and the stability of the production process.
Global Service Support
We provide global logistics and customs clearance services, on-site installation and commissioning by professional engineers, 24/7 online technical assistance, and lifelong maintenance guidance, solving all worries for customers in the use process.
Typical Applications
Widely applied in the production of upright rack columns for industrial warehouses, logistics distribution centers, commercial supermarkets, and daily necessities storage facilities, adapting to various load-bearing and storage requirements.
