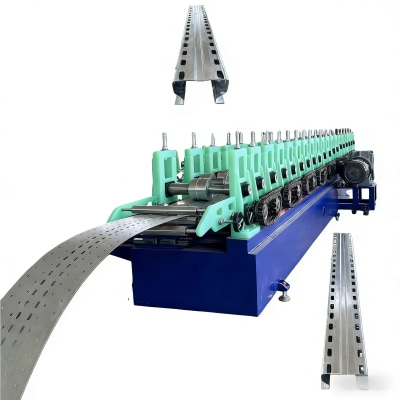

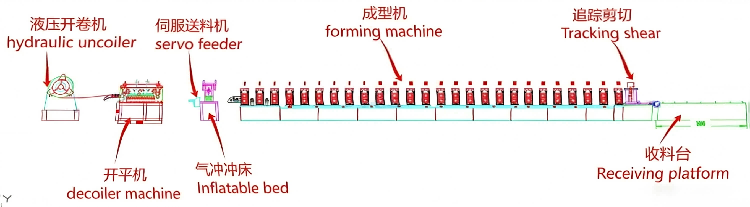

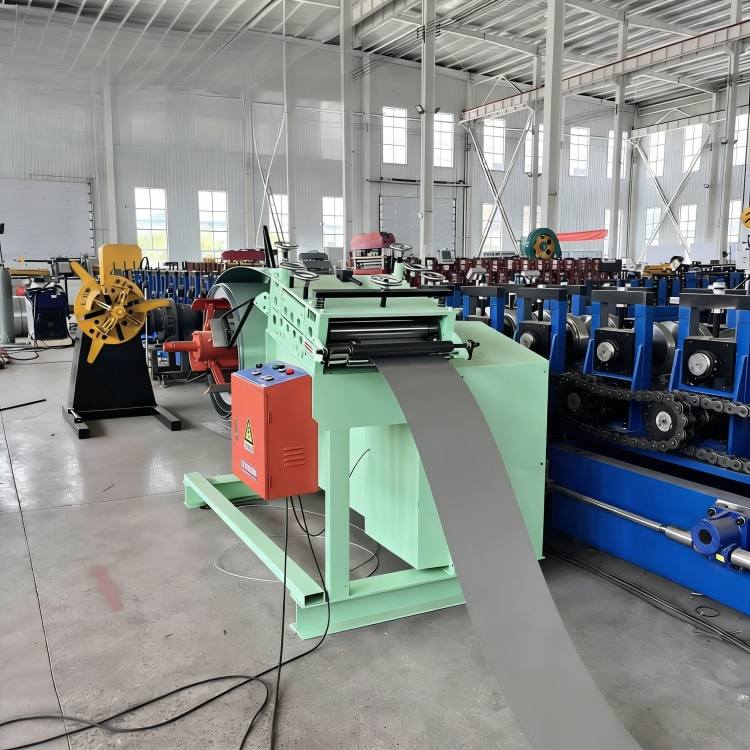

Designed for all-round adaptability and safe operation, the Upright Roll Forming Machine is suitable for various industrial environments and production scenarios, delivering consistent performance and high-quality shelf uprights. Its humanized design and advanced safety features make it easy to operate and maintain, ensuring the safety of operators and the stability of production.

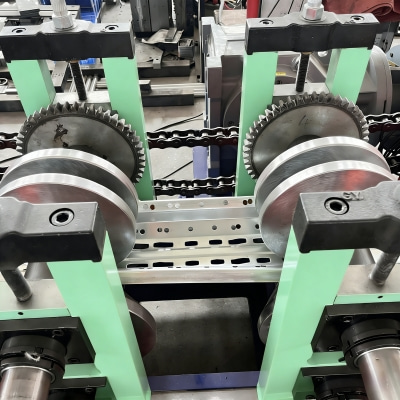

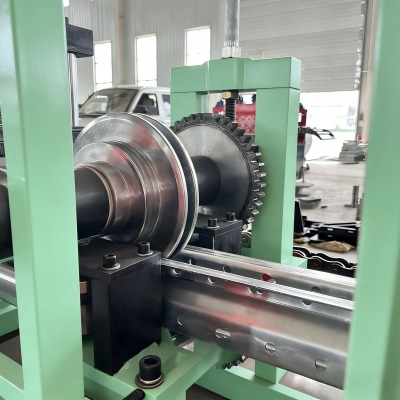

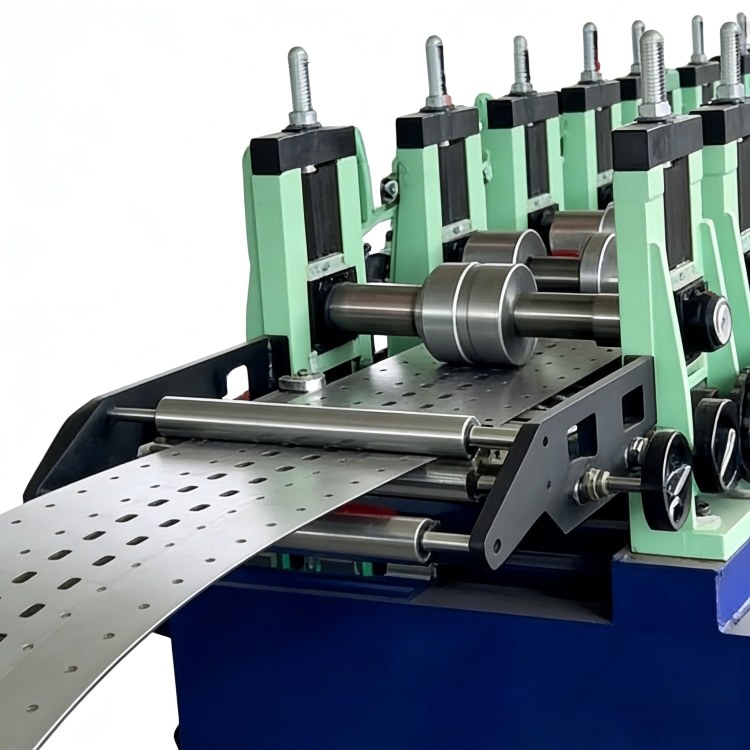

The machine is specialized in processing Q235 Galvanized sheet, which is widely used in shelf production due to its excellent corrosion resistance and cost-effectiveness. It supports a rolling thickness of 2-3mm and forming dimensions/feeding width according to the product drawings, making it suitable for producing uprights of different sizes and specifications for various shelf types. The forming tolerance of ±0.2mm ensures high precision, meeting the strict requirements of modern storage systems.
|
Item
|
Description &Parameter
|
|
Technical Standards
|
1.GB/T6725-2002《Technical conditions for cold-formed steel》
2.GB/708-88《Dimensions,shapes,weights,and allowable deviations of cold-rolled steel plates and strips》
3.GB/6723-86《Dimensions,shapes,weights,and allowable deviations of general cold-formed open section steel》
|
|
Forming raw material
|
Q235 Galvanized sheet
|
|
Rolling thickness(mm)
|
2-3mm
|
|
Forming dimensions (mm)
|
According to the product drawings
|
|
Feeding width(mm)
|
According to the product drawings
|
|
Production capacity
|
10-20 m/min adjustable or Customization
|
|
Control system
|
PLC
|
|
Forming tolerance (mm)
|
±0.2mm
|
|
Operation mode
|
Combined operation method of LCD,PLC Program,driver and wireless control.
|
|
Automation level
|
Fully automatic
|
|
Fault diagnosis function
|
There are protective devices in every part.
|
|
Working temperature
|
-30℃ ~ 50℃
|
|
Power
|
26KW
|
|
Input voltage
|
380V/50HZ/3PH electricity or Customization
|
|
Dimension(L*W*H)(mm)
|
9800 * 800 * 2940
|
|
Weight(Tons)
|
8.5
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery test report
|
Provided
|
|
Warranty information
|
Three years warranty for the entire machine.
|

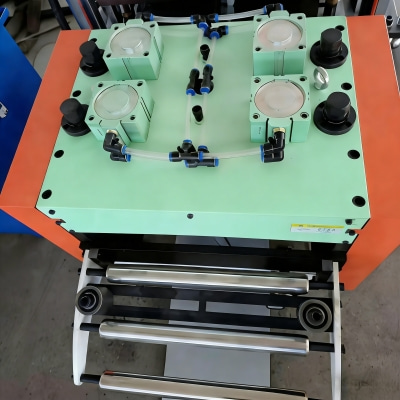

With a production capacity of 10-20 m/min (adjustable or customizable), it can flexibly adapt to small-batch and large-scale production, improving production efficiency and meeting delivery deadlines. The PLC control system and combined operation method of LCD, PLC Program, driver and wireless control make operation simple and intuitive—operators can easily set parameters, monitor production progress, and control the machine remotely. The fully automatic operation mode reduces human intervention, while the fault diagnosis function (with protective devices in every part) ensures safe operation and prevents accidents.
The machine operates within a working temperature of -30℃ ~ 50℃, adapting to cold and hot industrial environments. Powered by a 26KW motor with customizable input voltage, it can be used in different regions worldwide. Its dimension of 9800 * 800 * 2940mm and weight of 8.5 Tons make it easy to install and move, fitting various workshop layouts. We provide video outgoing-inspection and machinery test report to ensure product quality, and a three years warranty for the entire machine offers reliable after-sales support. This machine is suitable for shelf manufacturers of all sizes, producing uprights for commercial, industrial, and logistics storage systems.
