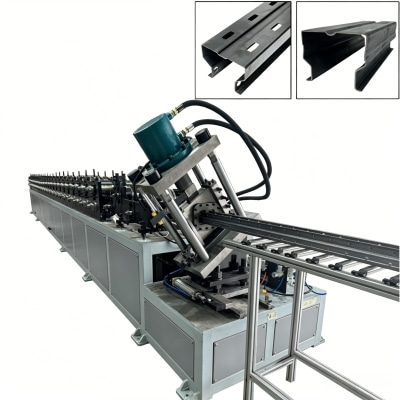

The Heavy-Duty Upright Roll Forming Machine is engineered to process a wide range of materials, adapting to the unique requirements of different storage applications.
It handles hot-rolled steel, cold-rolled steel, and galvanized steel with thicknesses from 1.8 mm to 2.5 mm, making it suitable for everything from standard pallet racks to heavy-duty industrial storage systems. Hot-rolled steel, known for its high strength, is ideal for heavy-load applications, while galvanized steel offers corrosion resistance for humid or outdoor environments. Cold-rolled steel provides a smooth finish, perfect for retail or commercial storage racks.

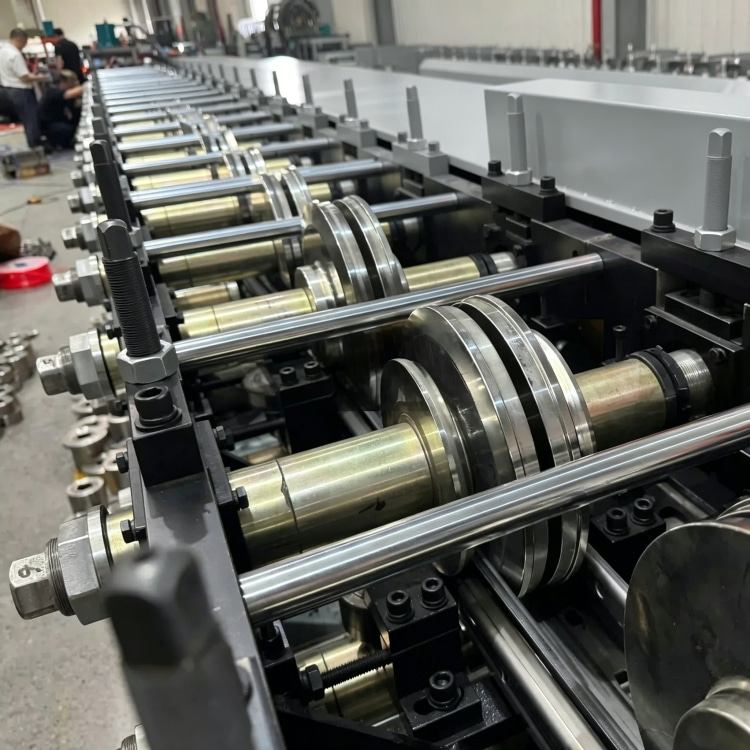

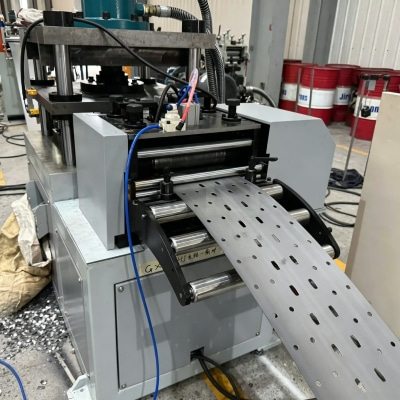

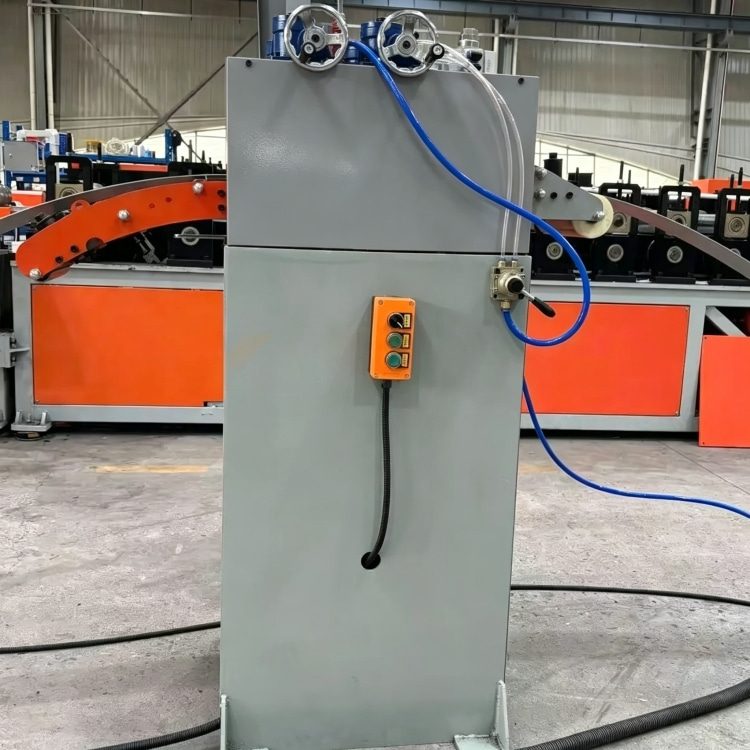

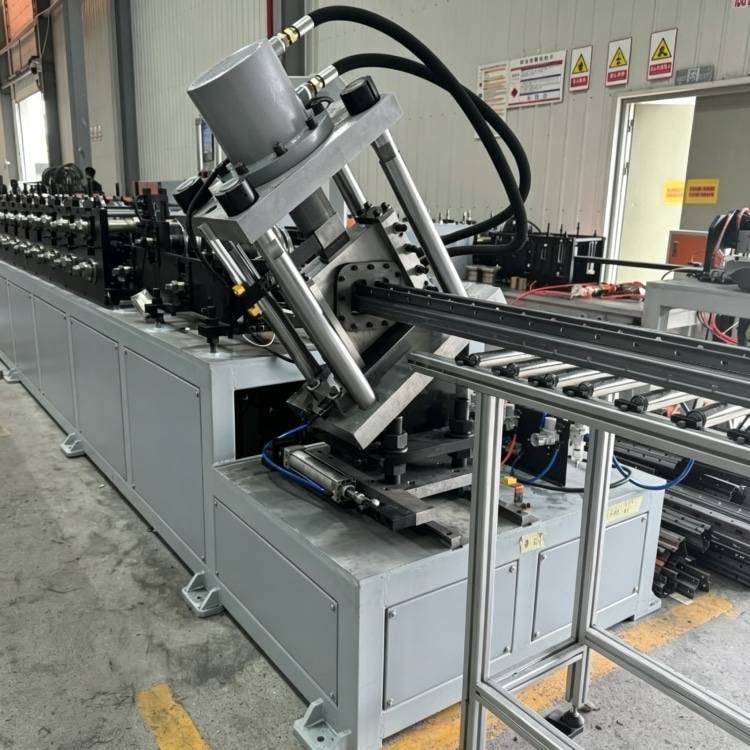

The forming section’s 24 customizable stations are calibrated to handle different material hardnesses, ensuring consistent shaping without deformation. The hydraulic punching station uses Cr12MOV molds, which are tough enough to punch holes in thick steel without chipping, while the cut-off blades maintain sharpness through thousands of cuts. The leveler’s 12 rollers are adjustable to accommodate varying material thicknesses, ensuring flat input regardless of the steel grade.
Features &Specification
|
Parament
|
Specification
|
|
Suitable material
|
HCR Coil / Carbon Steel Coil,GI Coil
|
|
Material Thickness
|
1.8-2.5mm
|
|
Working speed
|
1~10m/min
|
|
Profile
|
80/100/120*70mm
|

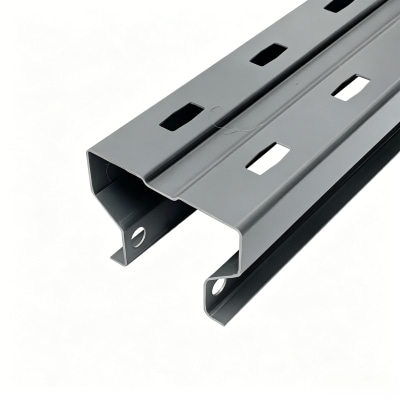

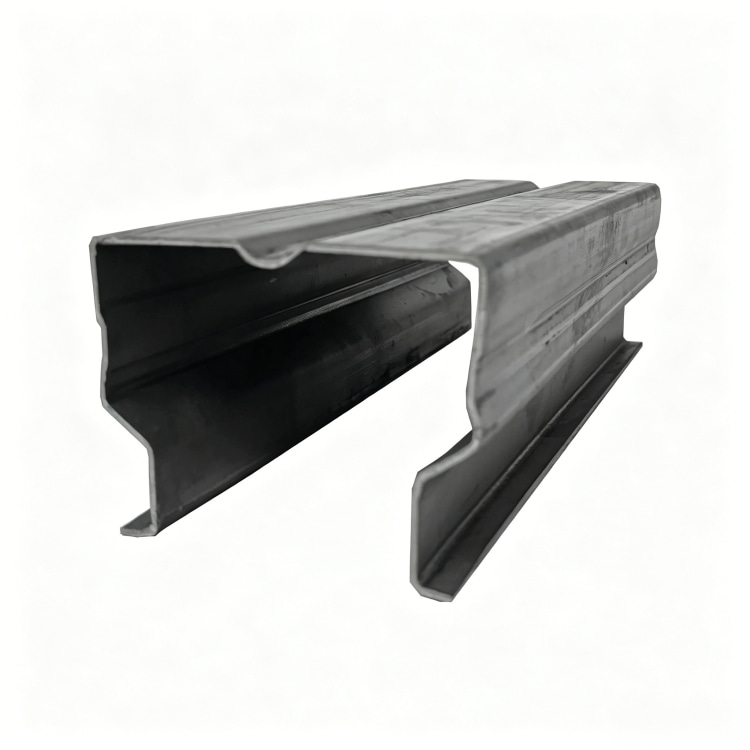

Whether producing uprights for warehouse pallet racks, logistics storage shelves, or industrial heavy-load systems, this machine adapts to diverse materials and applications, delivering high-quality profiles that meet the specific needs of each storage solution.
