Product Overview

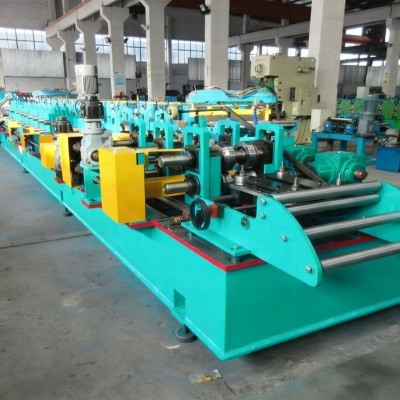

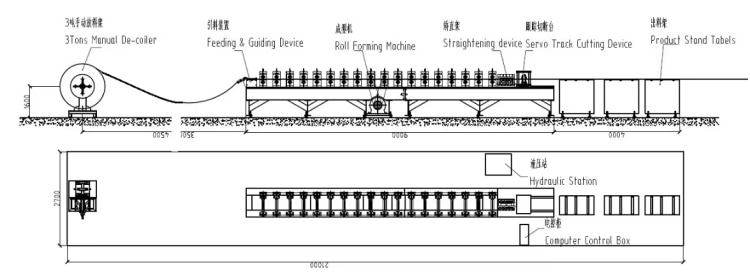

The High Performance Shelf Box Panel Making Machine is a state-of-the-art automated production equipment tailored for manufacturing high-precision and high-strength shelf box panels. As a core device in the high-end storage equipment manufacturing industry, it integrates decoiling, automatic feeding, precision punching, continuous roll forming, and high-precision cutting into a seamless workflow. Equipped with advanced intelligent control technology and premium core components, this machine ensures stable, efficient, and consistent mass production, perfectly meeting the strict requirements of industrial warehouses, large-scale logistics distribution centers, and high-end commercial storage facilities. It is highly recognized by global storage equipment manufacturers for its superior performance, reliable operation, and strong customization capabilities.
Core Technical Specifications
-
Raw material: Cold-rolled steel, Galvanized steel (optional stainless / color-coated steel)
-
Material thickness: 1.5 – 3.0 mm
-
Roller material: GCr15 (or optional Cr12) alloy steel, heat treated (quenched / hardened)
-
Roller hardness: HRC 58 – 62° (depending on heat treatment)
-

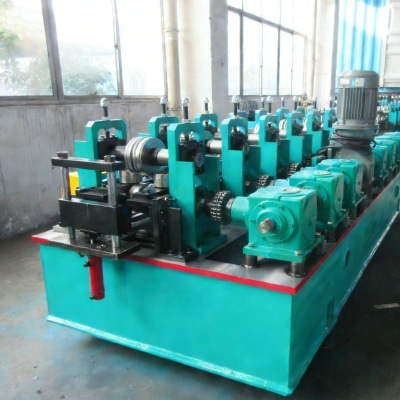

Number of forming stations: 16 – 28 stations (profile dependent)
-
Forming (line) speed: 5 – 15 m/min (depending on profile & configuration)
-
Main motor power: 15 – 22 kW (depending on model)
-

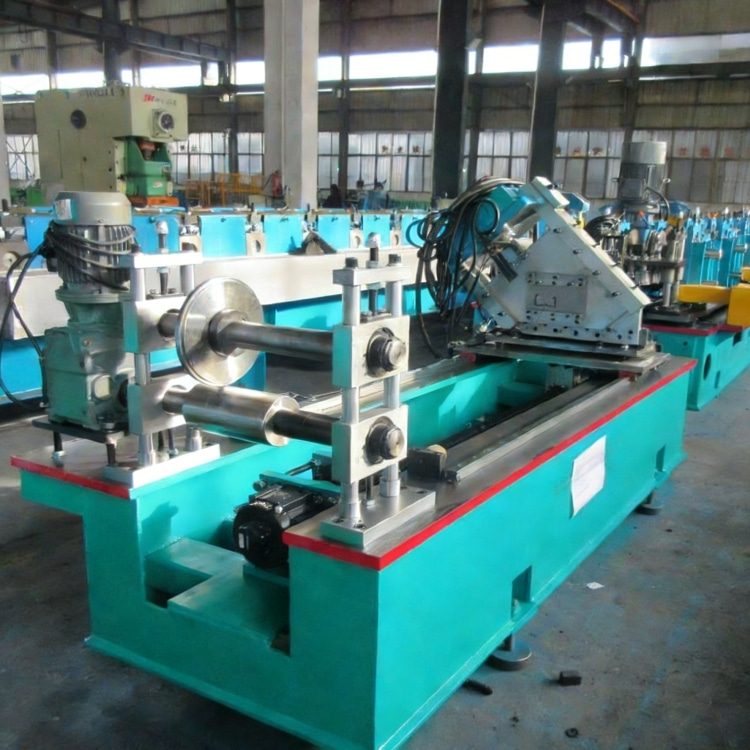

Cutting / Shearing system: Hydraulic cutting (or saw-cut); cutting blades made of heat-treated Cr12 / Cr12MoV
-
Control system: PLC control (Siemens / Panasonic / Delta optional) — supports automatic forming, punching, cutting, length & quantity control
-
Decoiler: Manual or hydraulic decoiler (capacity configurable, e.g. 3t–5t)
-
Material width: As per customer’s profile drawing / specification
-
Profile types: Upright rack columns / shelf upright posts / pallet rack uprights / warehouse shelving uprights
-
Power supply / Voltage: 380 V, 50 Hz, three-phase (customizable per customer requirement)
Global One-Stop Service
Pre-sales Consulting
We provide multilingual technical support (English, German, Russian, Spanish, Arabic), on-site factory layout planning, and personalized production solutions based on customers' specific shelf box panel drawings, material requirements, production scales, and regional power standards.
Sales Support
Professional packaging is adopted to ensure the safe transportation of equipment. We provide complete industrial equipment customs clearance documents and arrange experienced engineers to conduct on-site installation, commissioning, and debugging. Systematic training on machine operation, maintenance, and quality control is also provided for customer teams to ensure proficient use.
After-sales Service
24/7 online technical assistance is available to promptly solve customer problems. On-site maintenance support is provided within 48 hours in key regions. We offer a long-term warranty for core components of the machine, provide lifelong maintenance guidance, and free software upgrade services to ensure the continuous and stable operation of the equipment.
Typical Applications
-

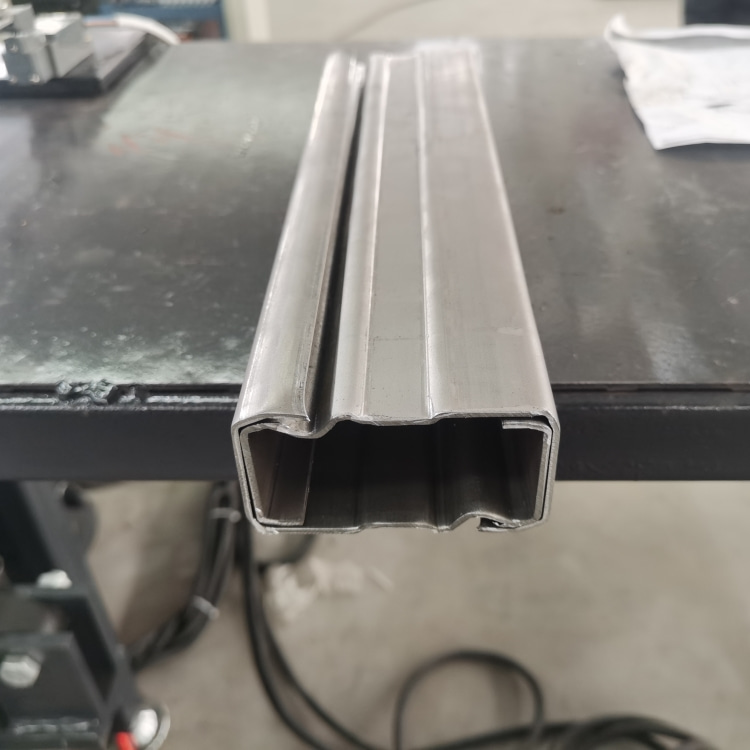

Production of high-performance shelf box panels for heavy-duty industrial storage shelves
-
Manufacturing of precision shelf box panels for large-scale logistics distribution centers
-
Customized production of high-strength shelf box panels for high-end commercial storage facilities
-
Production of special environment (cold-chain, chemical) resistant shelf box panels for special industries
