Automatic Storage Rack Beam Roll Forming Machine Line

The Automatic Storage Rack Beam Roll Forming Machine Line is specially engineered for the continuous production of self-locked rack beams used in warehouse pallet racking systems. These beams play a critical structural role by connecting upright frames and carrying the main load of stored pallets, ensuring overall rack stability, safety, and long-term reliability. High-quality rack beams help prevent deformation, bending, or collapse, even under heavy-duty storage conditions.

This roll forming machine line is capable of producing rack beams in a wide range of profiles, thicknesses, and lengths to meet diverse warehouse designs and storage requirements. By adjusting parameters through the PLC control system, operators can easily set beam length, punching positions, and production speed, achieving flexible and efficient manufacturing for different rack specifications. The finished beams are compatible with various pallet rack systems and allow smooth access for forklifts and other material handling equipment, maximizing warehouse space utilization.

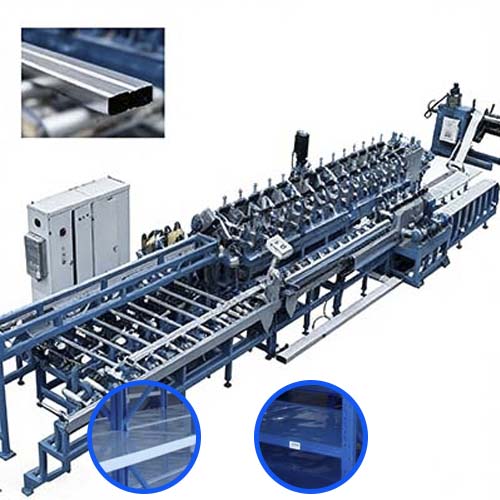

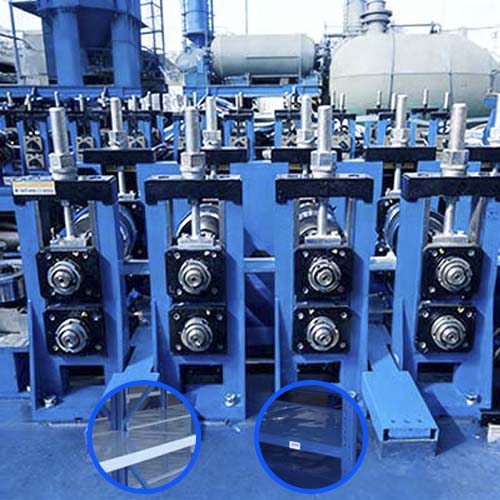

The complete machine line typically consists of a hydraulic decoiler, feeding and leveling unit, servo-controlled punching system, high-precision roll forming stations, automatic length measuring, and a hydraulic or flying cut-off system. With a robust mechanical structure and high-quality electrical components, the production line ensures stable operation, accurate forming, and clean punching edges during long-term continuous production. Automation minimizes labor input while significantly improving productivity and product consistency.

As one of China’s professional manufacturers in the rack roll forming machine industry, Xinnuo Machinery has been focusing on roll forming equipment for more than 20 years. Over the past two decades, Xinnuo has successfully designed and supplied more than 800 sets of rack beam roll forming machines to customers worldwide. Backed by strong engineering capability, strict quality control, and reliable after-sales service, Xinnuo Machinery delivers customized solutions that help clients build efficient, safe, and cost-effective pallet racking production lines.
