Storage Rack Roll Forming Machine

The Storage Rack Roll Forming Machine from XINNUO Machinery is a fully automated production line specifically designed for manufacturing metal storage shelves efficiently and continuously. This advanced system is ideal for producing various shelving components, including upright posts, horizontal beams, and support profiles, making it a key piece of equipment for warehouse and industrial shelving systems.

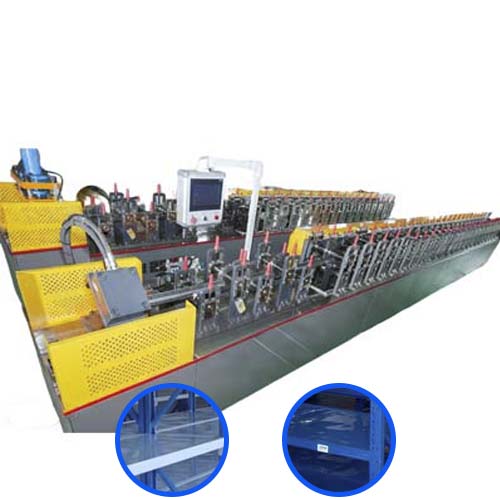

The production line features a complete set of integrated equipment, including a heavy-duty decoiler, precision feeding and leveling system, hydraulic or mechanical punching/notching unit, multi-stage roll forming stations, automatic cutting device, and an intelligent electric control system. Optional attachments, such as a pre-cutter, protective film applicator, or automatic run-out tables, can be added according to specific production requirements, allowing for flexible and customized setups.

For sheet length control, the machine utilizes a PLC system in combination with an encoder, allowing operators to program precise cutting lengths and automatically execute batch production. Up to 20 production batches can be pre-set within the control system, enabling seamless operation for large-scale manufacturing. The machine’s fully automatic design ensures continuous forming, punching, and cutting with minimal manual intervention, significantly improving efficiency and reducing labor costs.

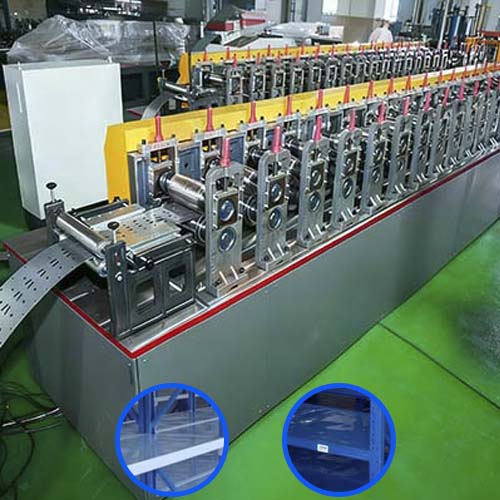

During production, steel coils are flattened and fed into the punching and forming section, where holes, slots, and notches can be created at specific positions according to customer design requirements. The roll forming stations then gradually shape the profiles step by step, resulting in high-precision metal shelf components. A straightening device is incorporated to ensure perfect alignment, while the hydraulic cutting system guarantees accurate panel lengths.

This Storage Rack Roll Forming Machine is easy to operate and maintain, requiring only a small team of skilled operators. Its robust construction, automated controls, and high flexibility make it an ideal solution for manufacturers aiming to produce high-quality shelving systems for warehouses, supermarkets, and industrial storage facilities.
